XTL-810 Series Compact Work Light  |  6 LED

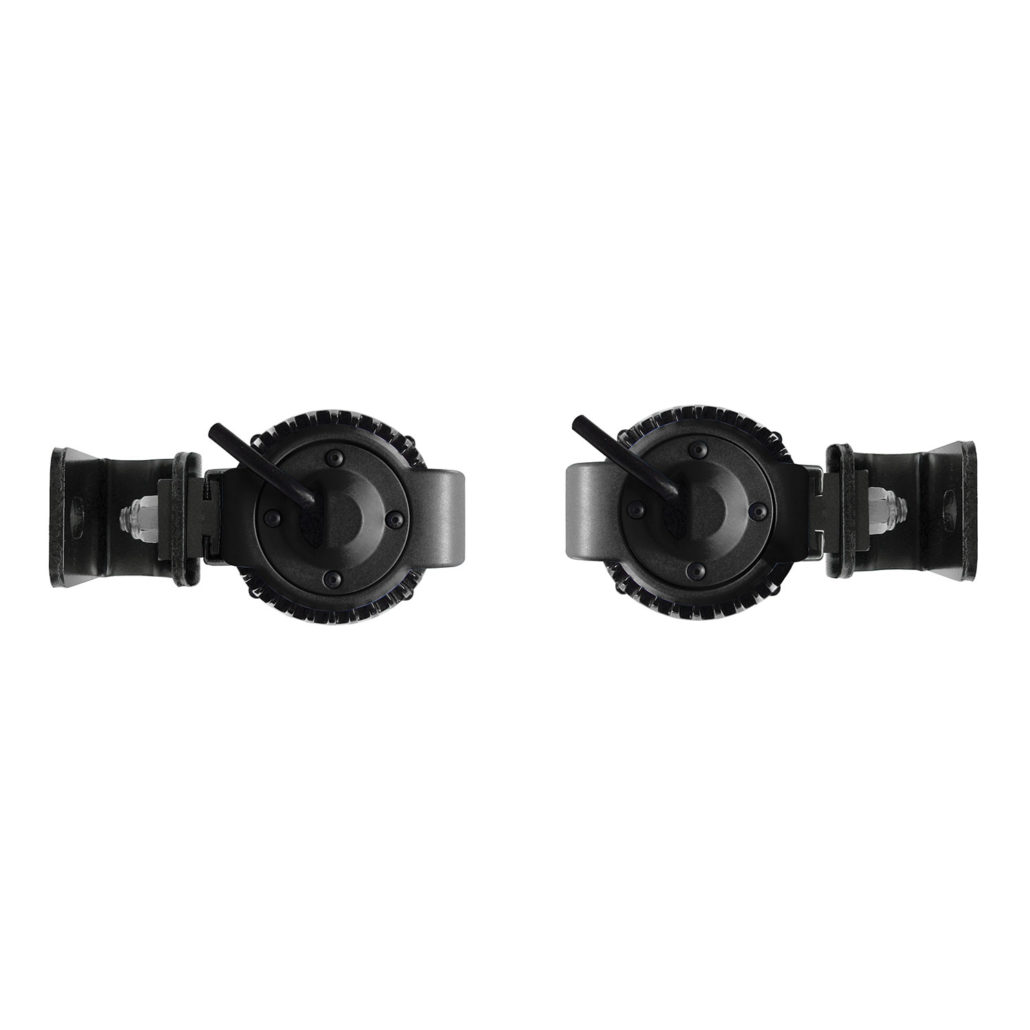

The XTL-810 series work lights feature enhanced bezel styling with added lens protection, and deliver 1260 lumens of illumination. These lights are built to withstand tough working environments and feature two attachment points, also known as the “2 Lives in 1” mount system. If one attachment point fails due to a collision, rotate to the next channel point and re-mount the light. One of the most versatile work lights on the market.

Features/Benefits
  • Enhanced bezel styling with added lens protection
  • 1260 lumens
  • Die cast aluminum housing, polycarbonate lens and high impact bezel – virtually unbreakable
  • IP68 & IP69K – will withstand dust, dirt and sand, and is resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes
  • 2 attachment points – if one attachment point fails due to a collision, rotate to the next channel point and re-mount the light
  • Low current draw – energy efficient, save on fuel costs as it consumes less energy (14W)
  • Constant current circuit draw – light does not dim even if voltage fluctuates
  • 3 beam patterns – get light where it’s needed for the job
  • 50,000+ hours LED service life and 5 year warranty

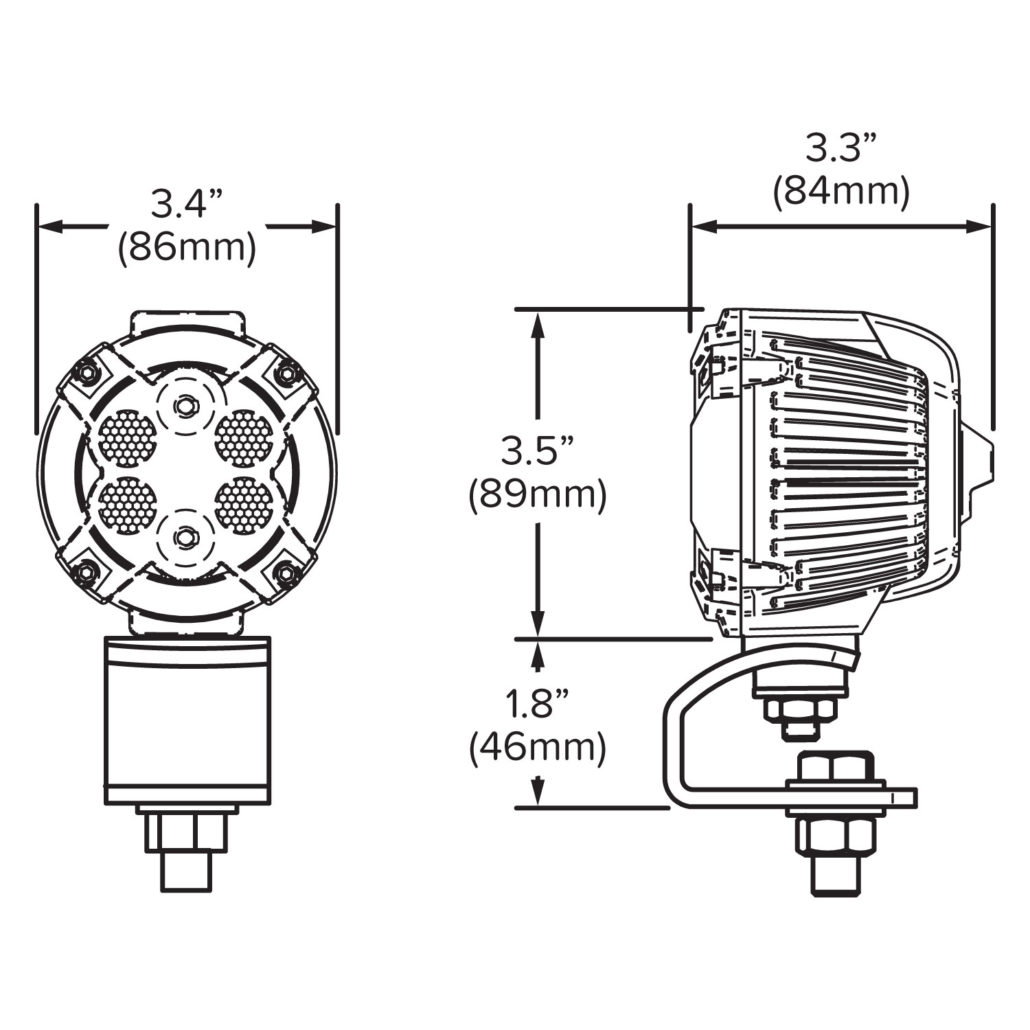

Specifications

Operating Voltage: 12 – 24Vdc
Operating Current: 1.2A @ 12Vdc  |  0.6A @ 24Vdc
Power Consumption: 14W
Temperature Range: -40°C to +80°C
Ingress Protection: IP68 & IP69K
Weight: 1.3lbs (0.6kg)
Housing: Die Cast Aluminum Alloy A380  |  Black E-Coat
Lens: Automotive Optical Grade Hard-Coated Polycarbonate
Connection: 6” Wire
Polarity: Reverse Voltage Protected
Vibration Resistance: 10-500Hz @ 5Grms
Mounting: C-Bracket (Powder Coated Steel) or Swivel Bracket (Zinc Dichromate Plating)
EMC Rated: EMC EN 13309: 2010

Beam Patterns

Spot Pattern

Medium Flood Pattern

Hybrid Pattern

Skus/Accessories
Part #Beam PatternLumensOperating Voltage
Black Bezel

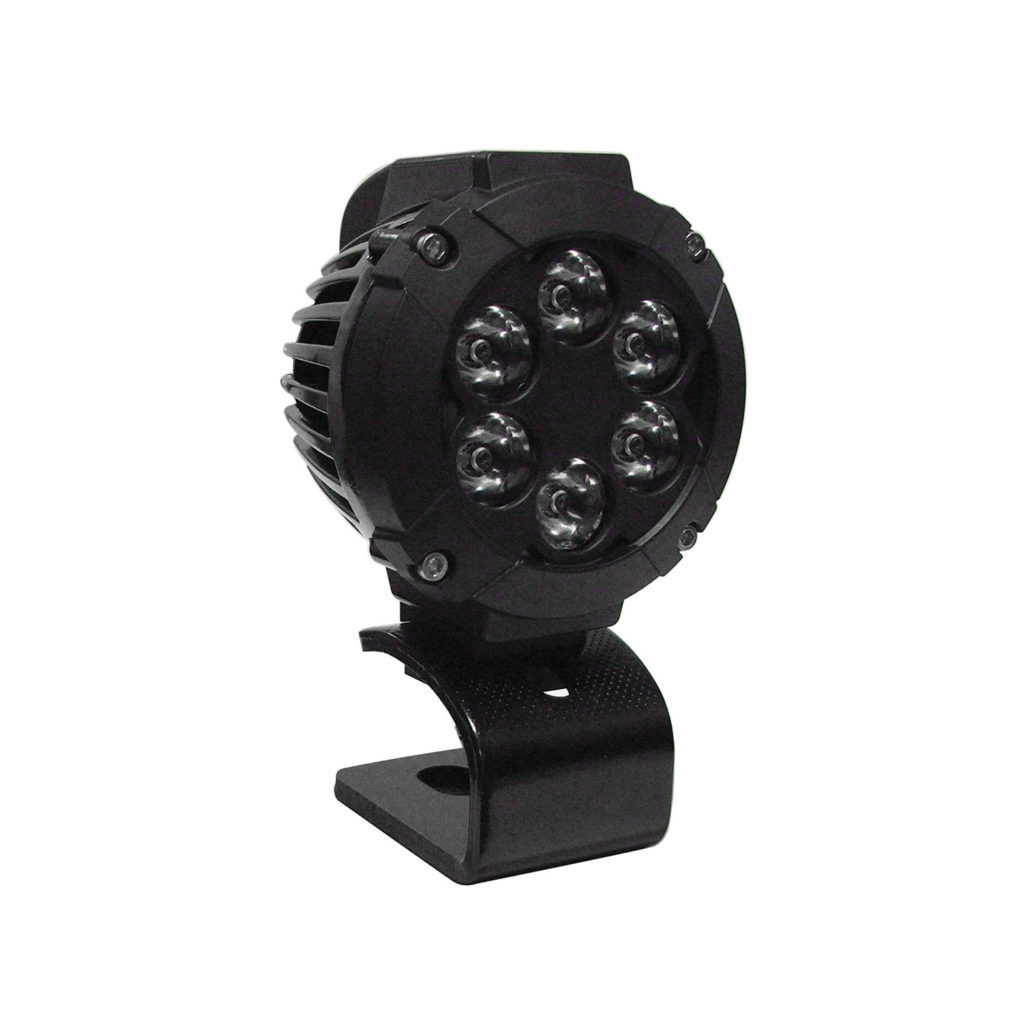

81871/BSpot126012 - 24Vdc
81873/BMedium Flood126012 - 24Vdc
81874/BHybrid126012 - 24Vdc

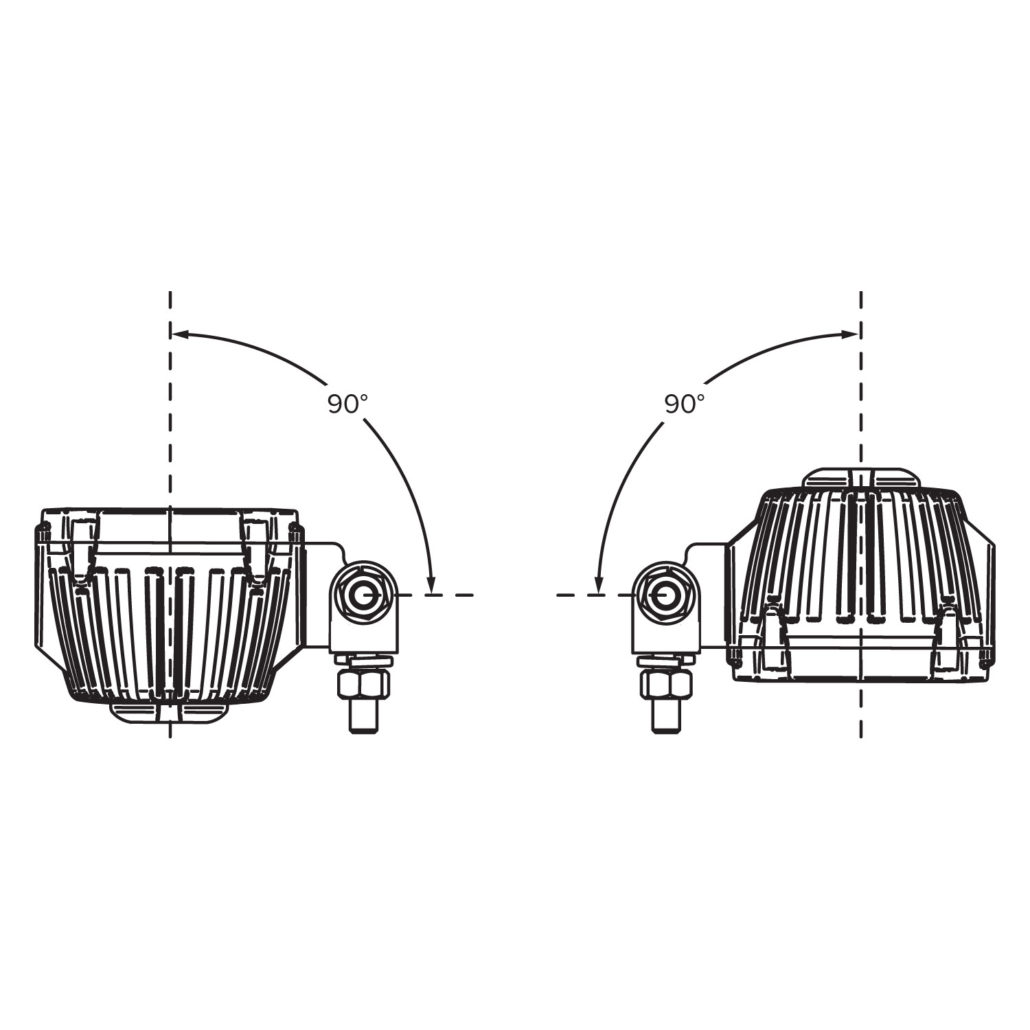

Swivel Bracket

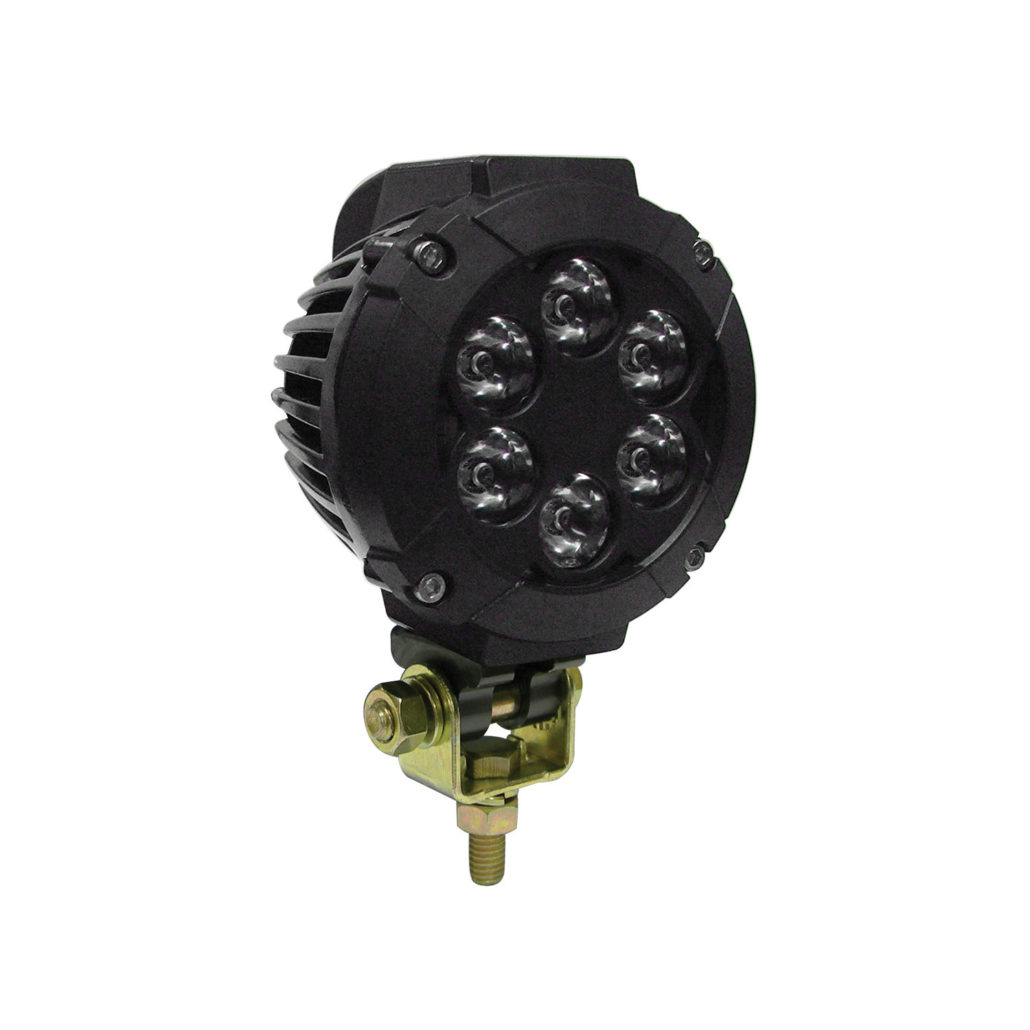

81875/BSpot126012 - 24Vdc
81877/BMedium Flood126012 - 24Vdc
81878/BHybrid126012 - 24Vdc
Accessories

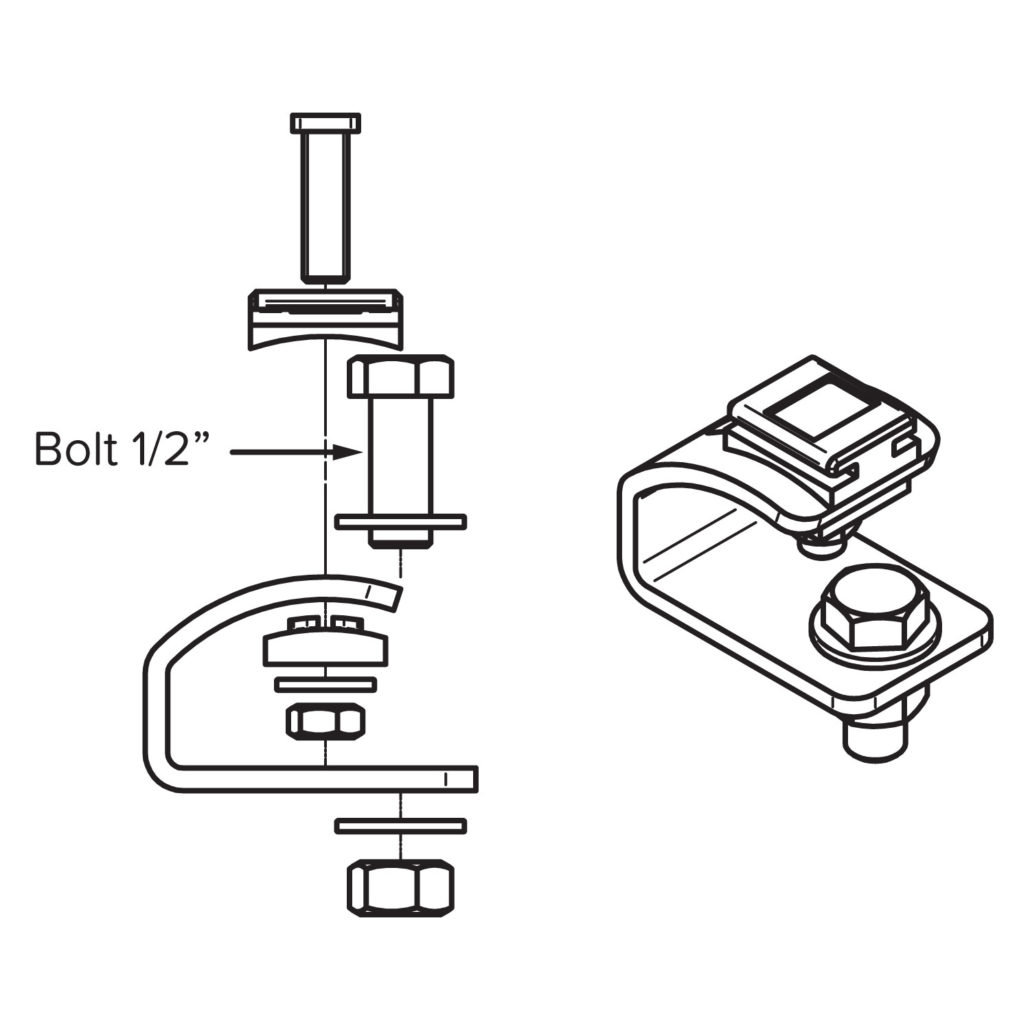

HW02AHardware Kit | C-Bracket

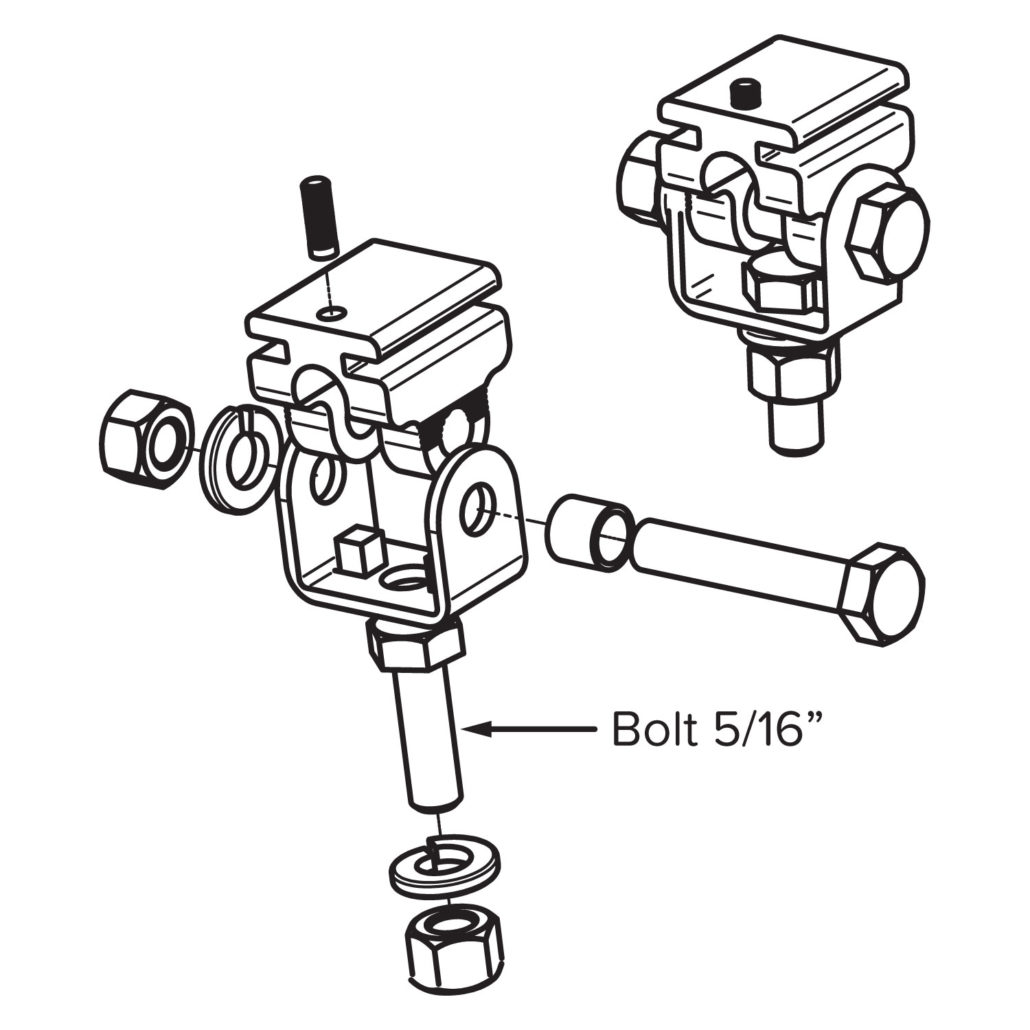

98189Hardware Kit | Swivel Bracket
