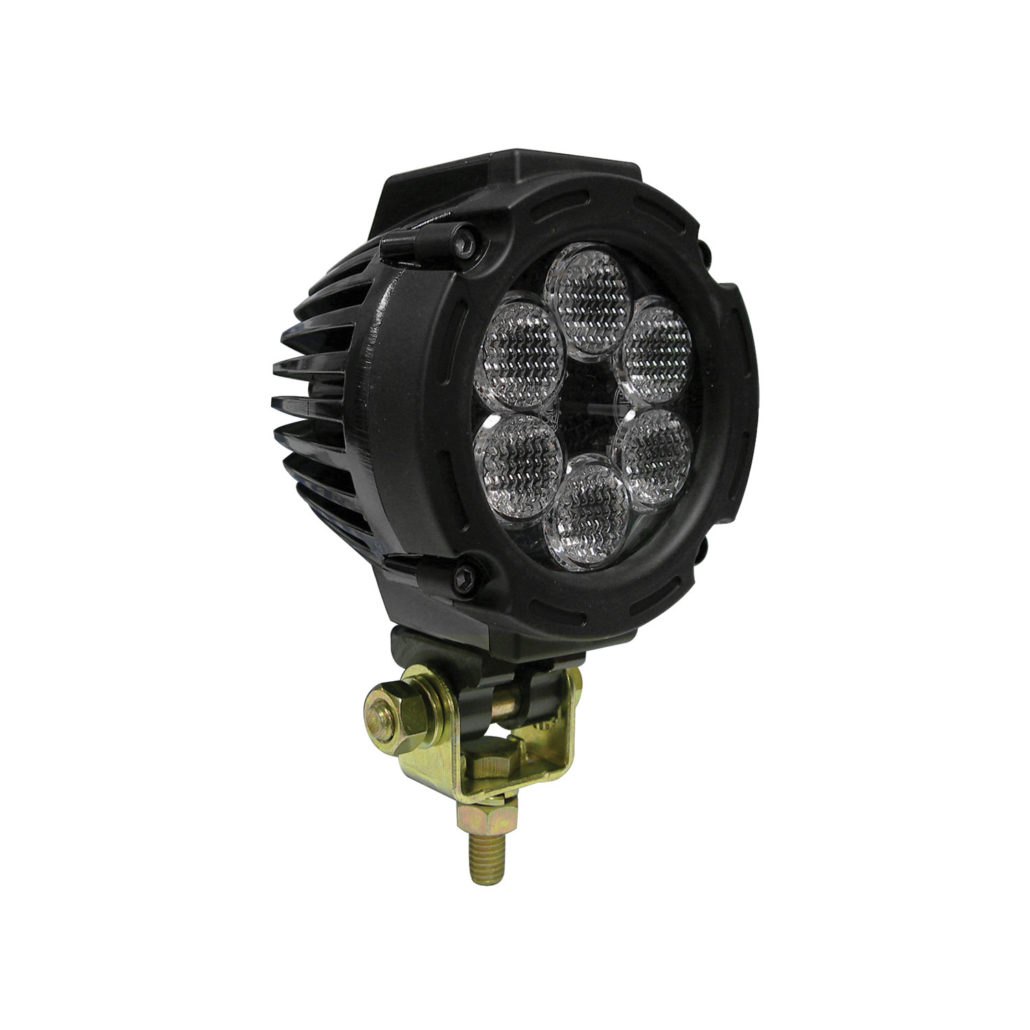

XWL-810 Series Compact Work Light  |  6 LED

The XWL-810 series compact work lights deliver 1260 lumens of illumination. These lights are built to withstand tough working environments and feature two attachment points, also known as the “2 Lives in 1” mount system. If one attachment point fails due to a collision, rotate to the next channel point and re-mount the light. One of the most versatile work lights on the market.

  • 1260 lumens
  • Die cast aluminum housing, polycarbonate lens and high impact bezel – virtually unbreakable
  • IP68 & IP69K – will withstand dust, dirt and sand, and is resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes
  • 2 attachment points – if one attachment point fails due to a collision, rotate to the next channel point and re-mount the light
  • Low current draw – energy efficient, save on fuel costs as it consumes less energy (14W)
  • Constant current circuit draw – light does not dim even if voltage fluctuates
  • 4 beam patterns – get light where it’s needed for the job
  • 50,000+ hours LED service life and 5 year warranty

Operating Voltage: 12 – 24Vdc
Operating Current: 1.2A @ 12Vdc  |  0.6A @ 24Vdc
Power Consumption: 14W
Temperature Range: -40°C to +80°C
Ingress Protection: IP68 & IP69K
Weight: 1.3lbs (0.6kg)
Housing: Die Cast Aluminum Alloy A380  |  Black E-Coat
Lens: Automotive Optical Grade Hard-Coated Polycarbonate
Connection: 6” Wire
Polarity: Reverse Voltage Protected
Vibration Resistance: 10-500Hz @ 5Grms

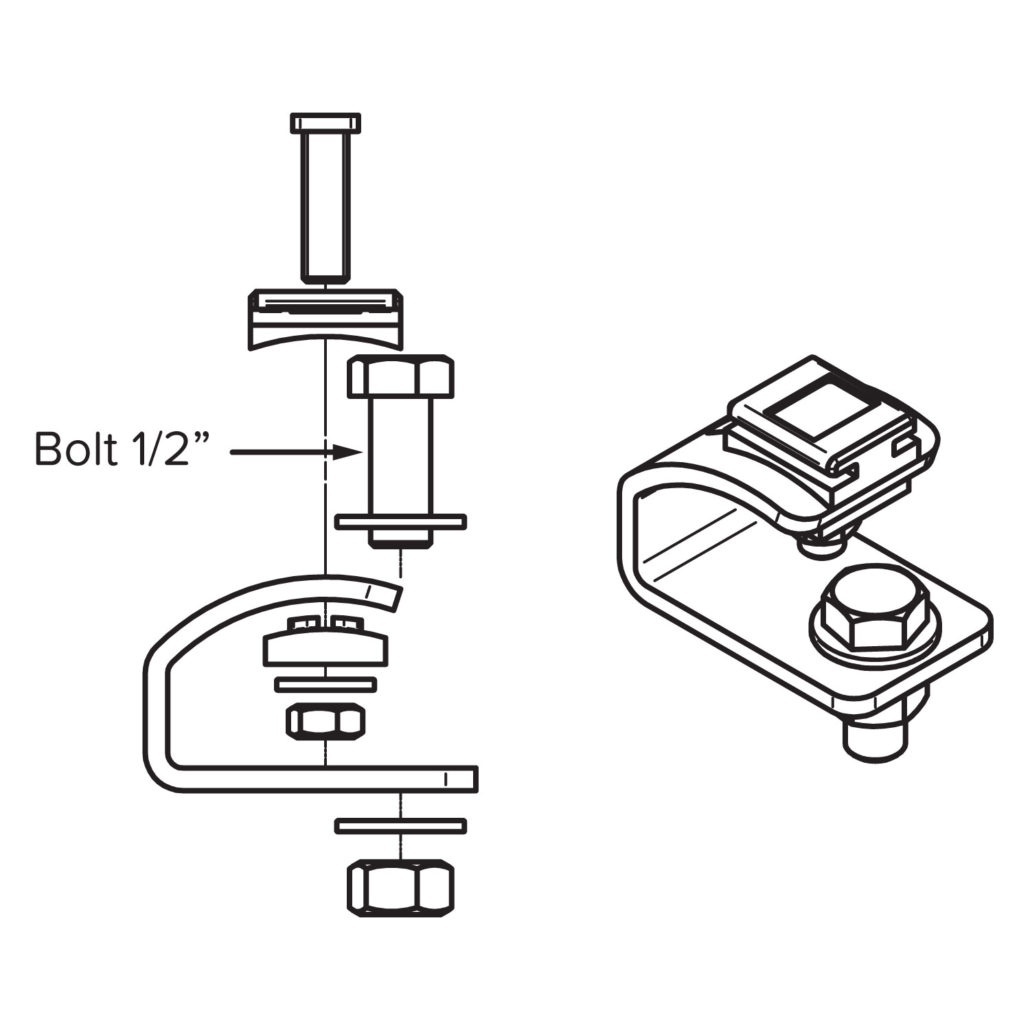

Mounting: C-Bracket (Powder Coated Steel) or Swivel Bracket (Zinc Dichromate Plating)
EMC Rated: EMC EN 13309: 2010

Beam Patterns

Spot Pattern

Wide Flood Pattern

Medium Flood Pattern

Hybrid Pattern

Part #Beam PatternLumensOperating Voltage

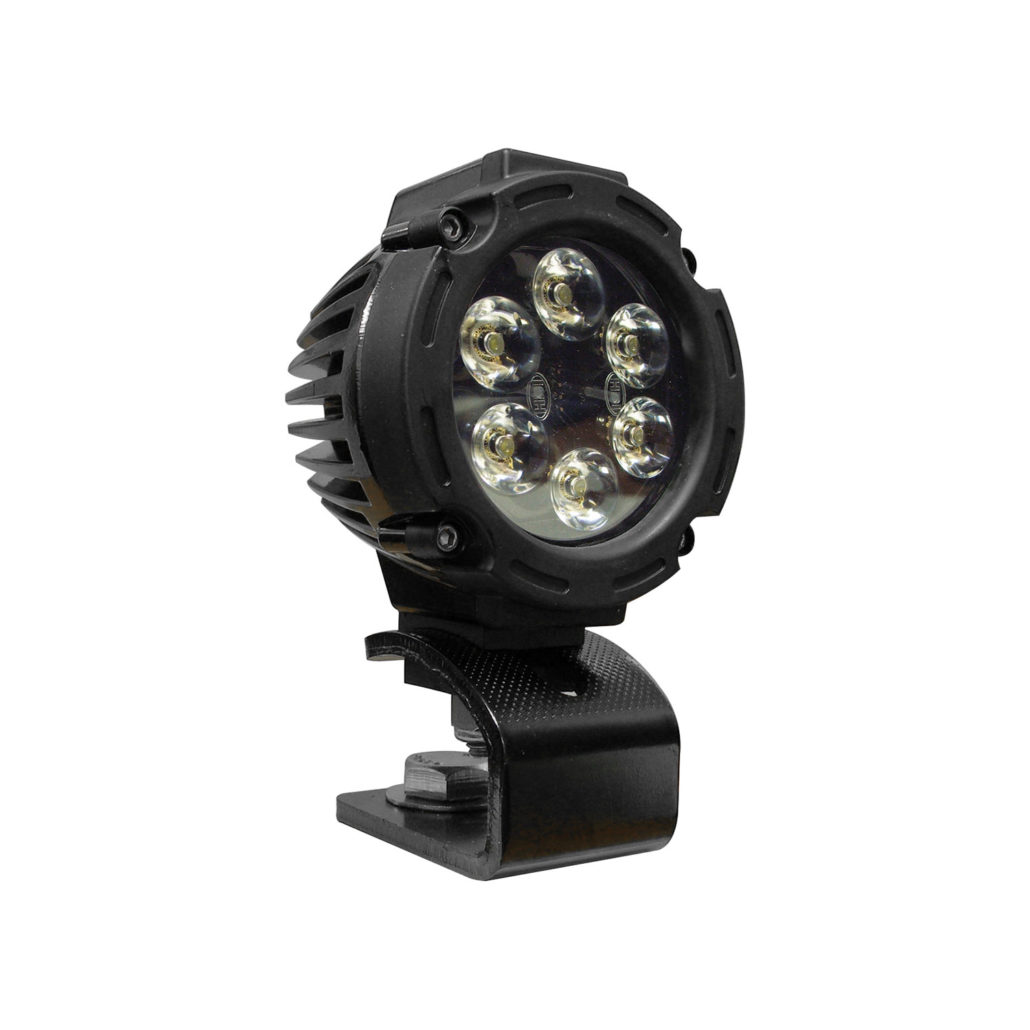

81271Spot126012 - 24Vdc

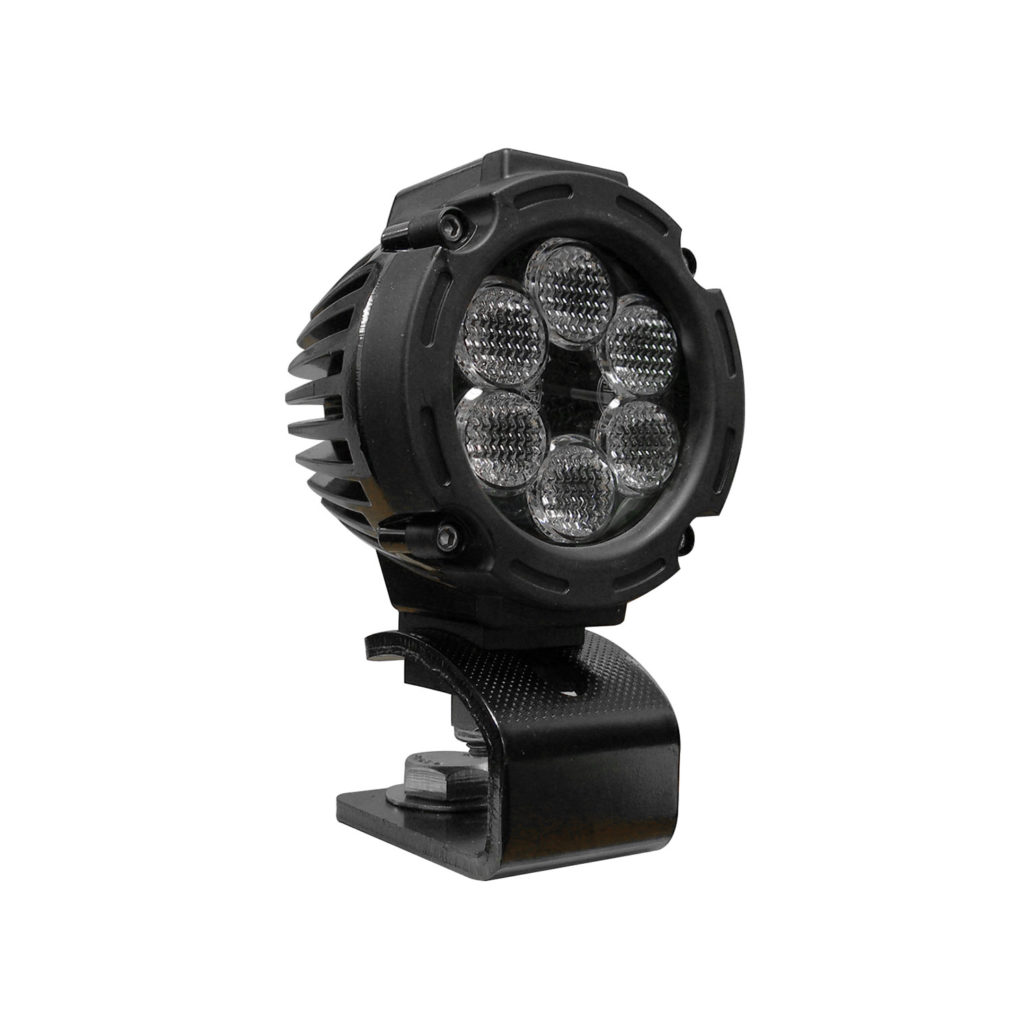

81272Wide Flood126012 - 24Vdc

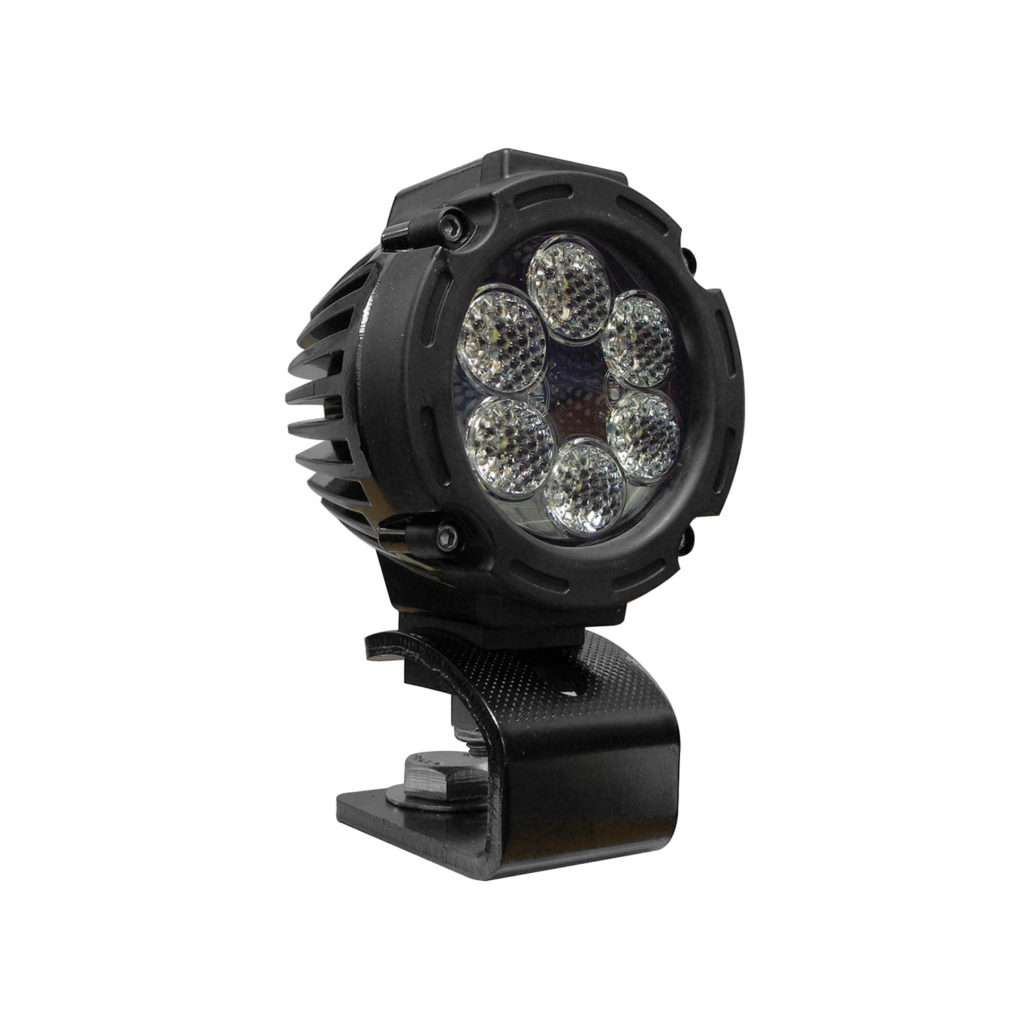

81273Medium Flood126012 - 24Vdc
81274Hybrid126012 - 24Vdc

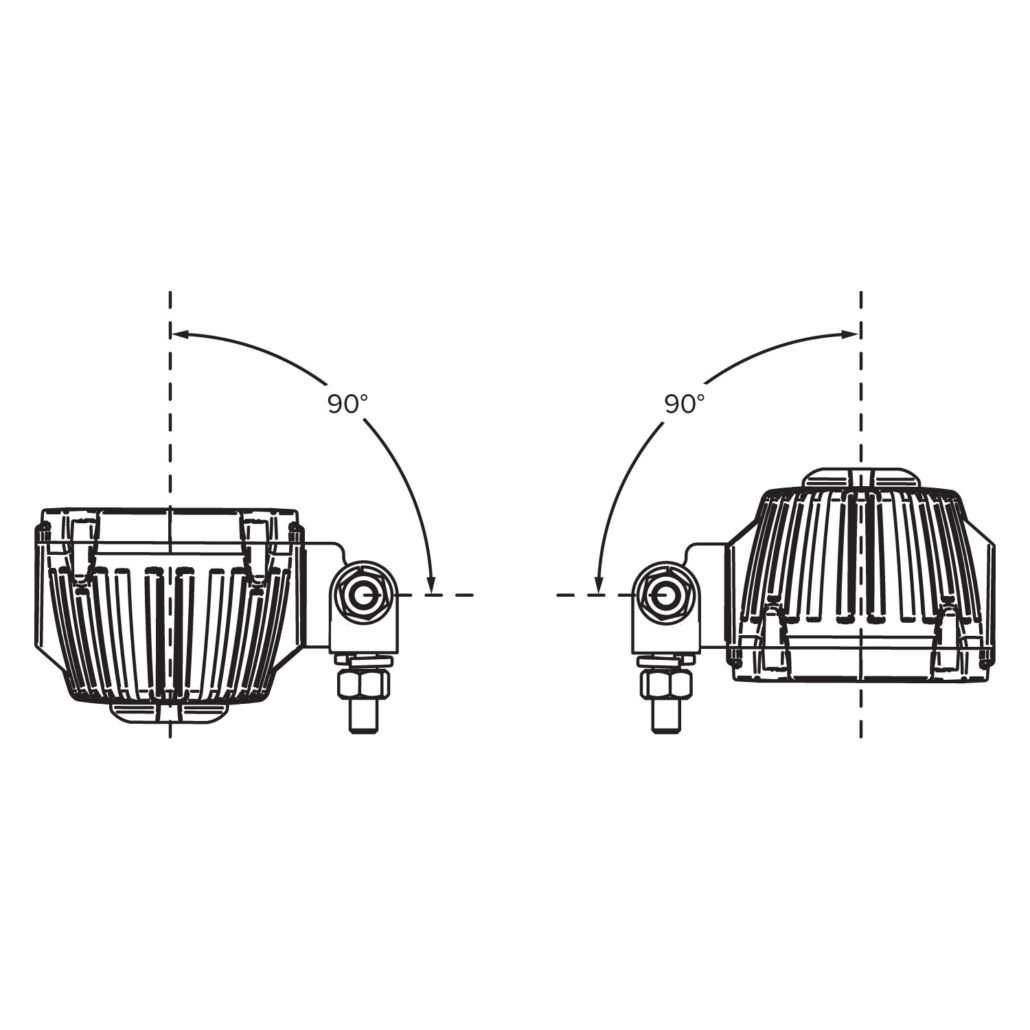

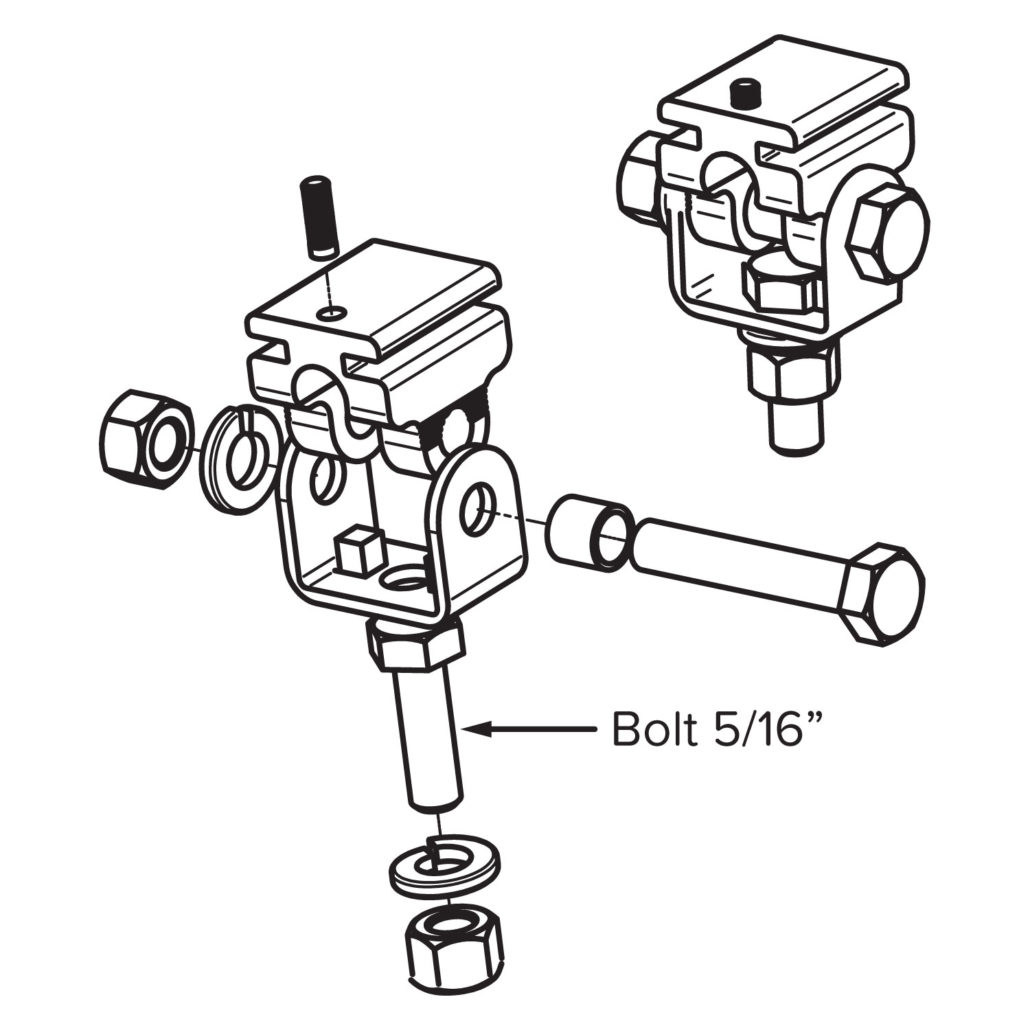

Swivel Bracket
81275Spot126012 - 24Vdc
81276Wide Flood126012 - 24Vdc
81277Medium Flood126012 - 24Vdc

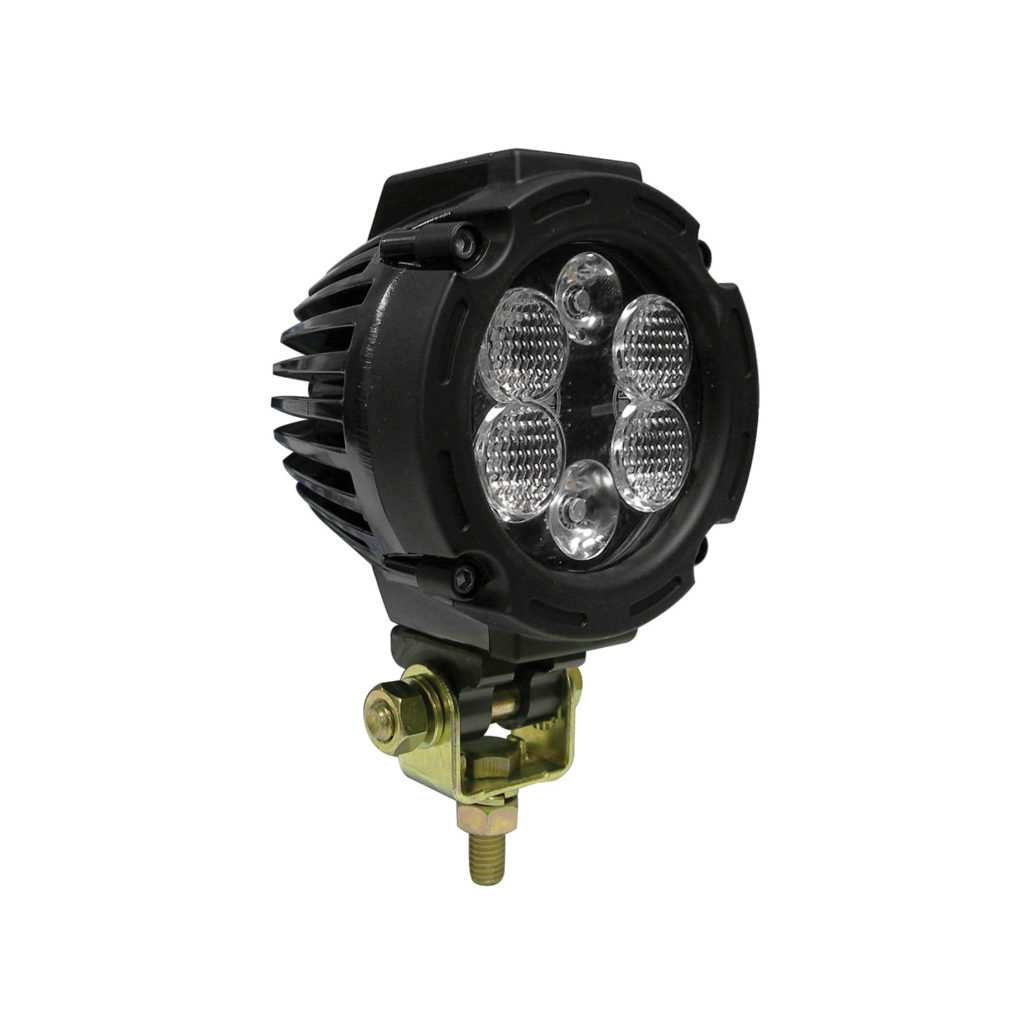

81278 Hybrid126012 - 24Vdc
HW02AHardware Kit | C-Bracket
98189Hardware Kit | Swivel Bracket
98195Easy Grip Handle - Black
