XWL-812 Premium Series Work Light  |  6 LED

The XWL-812 Premium series work lights deliver 1380 lumens of illumination. They feature 12 – 76Vdc operation which allows for functionality on a wide range of vehicles. These compact LED work lights also have a built in electronic thermal management system that monitors and self-regulates the LED lamp case temperature, thereby reducing heat output which improves LED service life.

Features & Benefits
  • 12 – 76Vdc operation – functions on a wide range of vehicles
  • 1380 lumens
  • Die cast aluminum housing & polycarbonate lens – virtually unbreakable
  • IP68 & IP69K – will withstand dust, dirt and sand, and is resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes
  • Low current draw – energy efficient, save on fuel costs as it consumes less energy (14W)
  • Constant current circuit draw – light does not dim even if voltage fluctuates
  • 3 beam patterns – get light where it’s needed for the job
  • 50,000+ hours LED service life & 5 year warranty
  • Electronic Thermal Management System – a built-in device that monitors and self-regulates the LED lamp case temperature, thereby reducing heat output which improves LED service life
Specifications

Operating Voltage: 12 – 76Vdc
Operating Current: 1.2A @ 12Vdc  |  0.2A @ 76Vdc
Power Consumption: 14W
Temperature Range: -40°C to +60°C
Ingress Protection: IP68 & IP69K
Weight: 1.5lbs (0.7kg)
Housing: Die Cast Aluminum – Black E-Coat
Lens: Automotive Optical Grade Hard-Coated Polycarbonate
Connection: Tyco or Deutsch
Polarity: Reverse Voltage Protected
Vibration Resistance: 10-500Hz @ 5Grms
Mounting: U-Bracket
EMC Rated: EMC EN 13309: 2010

Beam Patterns

Spot Pattern

Medium Flood Pattern

Hybrid Pattern

SKUs/Accessories Available
Part #Beam PatternLumensOperating Voltage
Tyco Connector

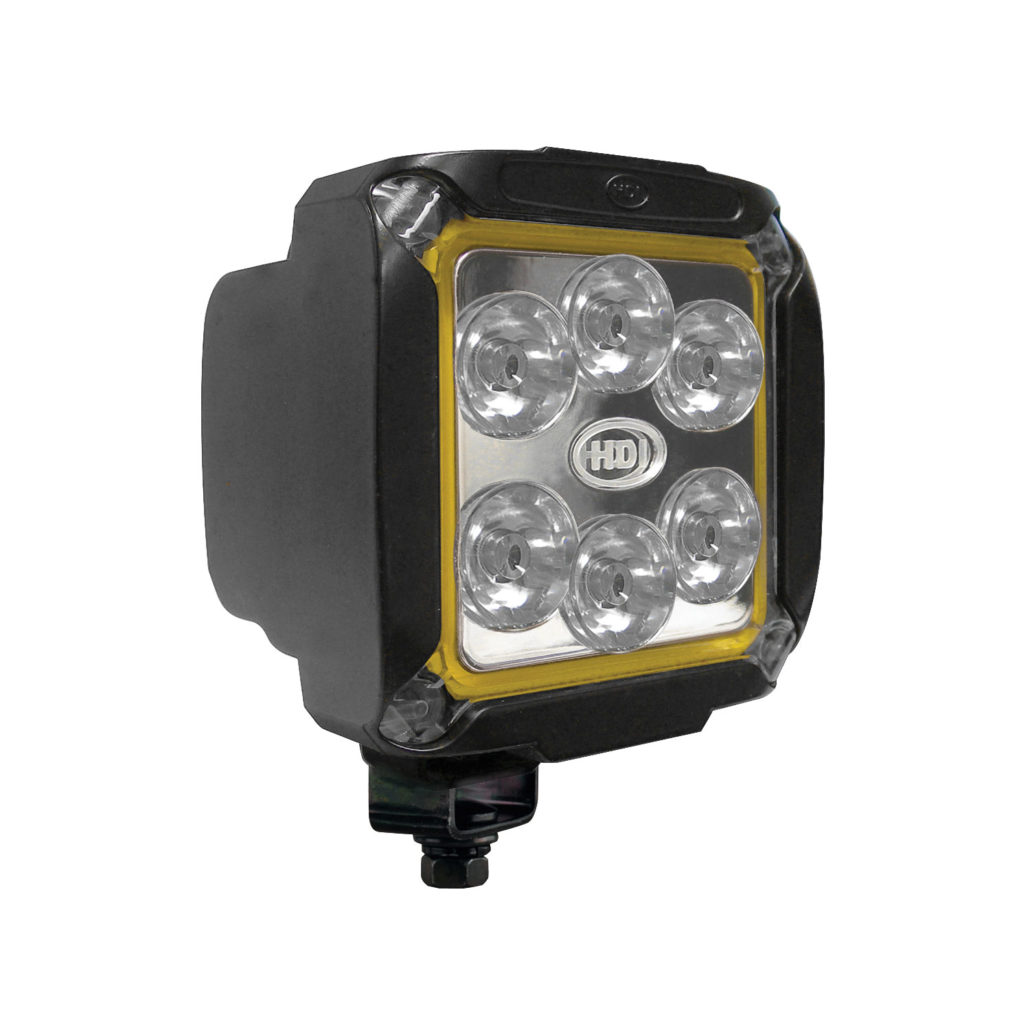

82291/BSpot138012 - 76Vdc

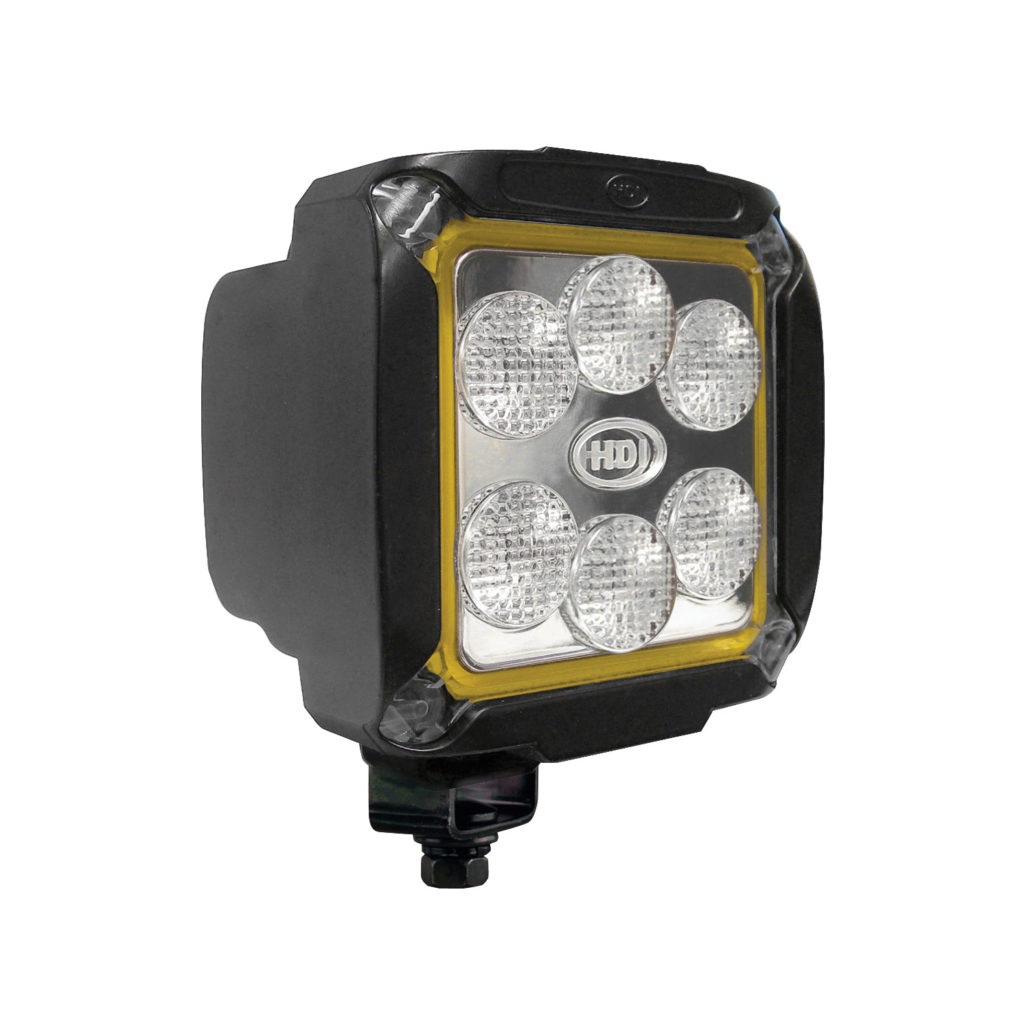

82293/BMedium Flood138012 - 76Vdc

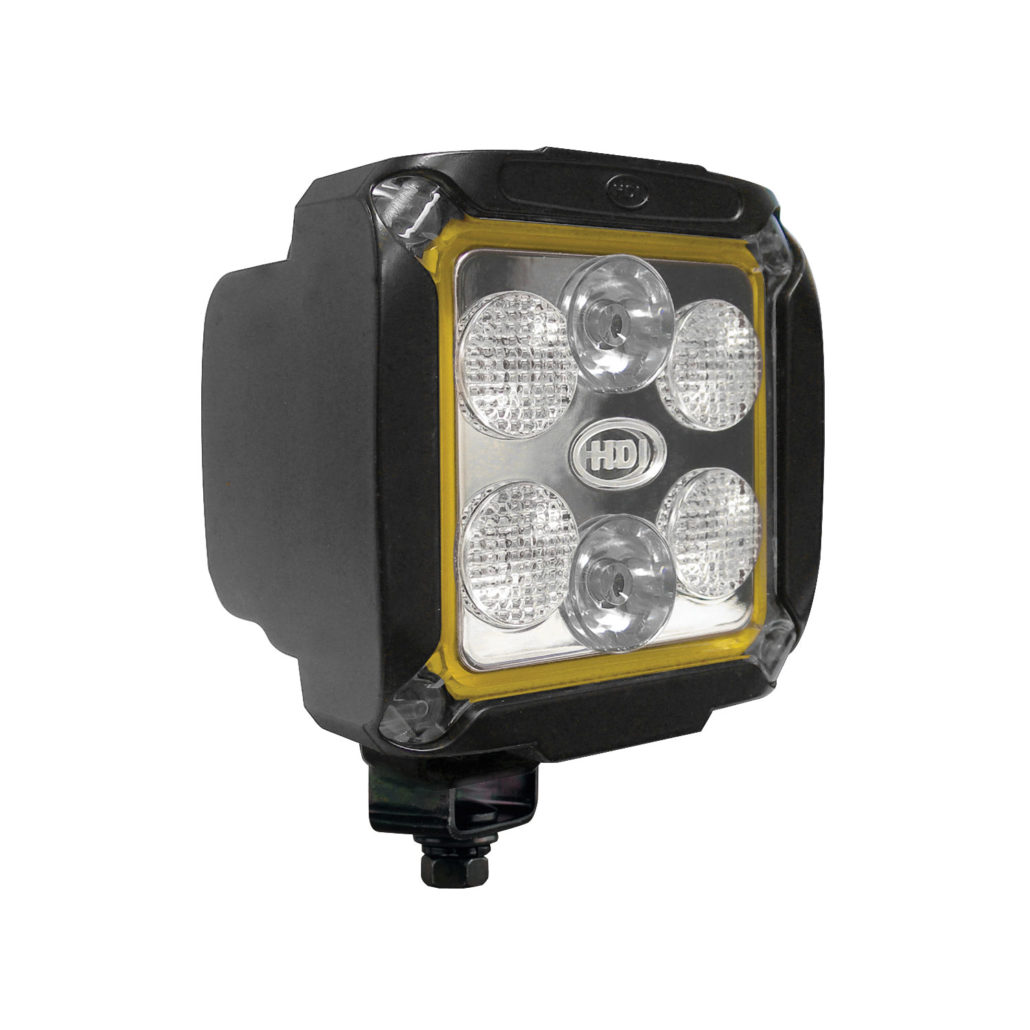

82294/BHybrid138012 - 76Vdc
Deutsch Connector
82291/CSpot138012 - 76Vdc
82293/CMedium Flood138012 - 76Vdc
82294/CHybrid138012 - 76Vdc
Accessories
81291HWHardware Package - U-Bracket & Bolt
98195Easy Grip Handle - Black
