Flush Mount LED

The Flush Mount LED work lights deliver 1080 lumens of illumination. These lights are designed to be non-intrusive while delivering powerful illumination. Their compact size and shape allows them to fit almost anywhere.

Features/Benefits
  • Flush mounted compact LED auxiliary light, designed too be non-intrusive while delivering powerful illumination
  • 6000K LED illumination – bright, crisp white light for enhanced nighttime visibility
  • Compact size and shape – fits almost anywhere, can be used for numerous lighting applications

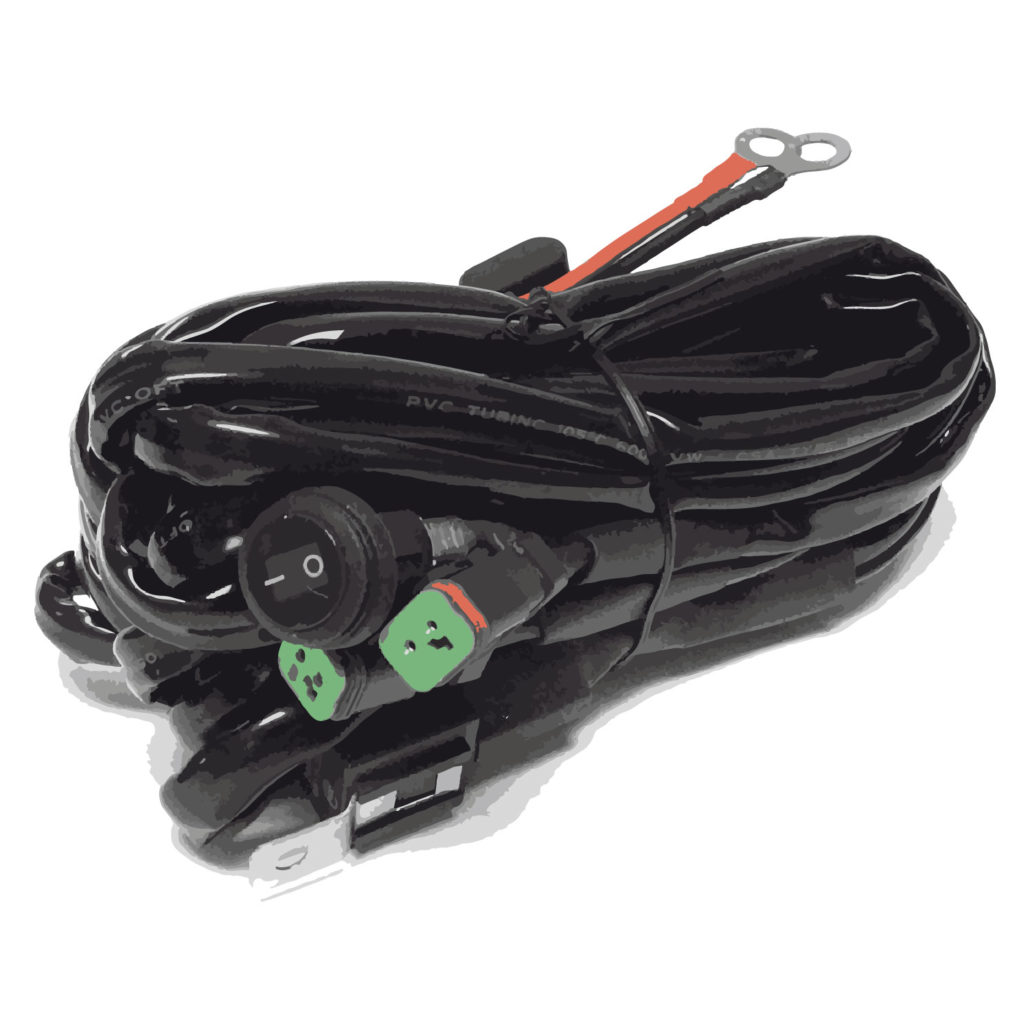

  • Sold as a kit – includes 2 lights, plug & play wire harness with switch and hardware
Specifications

Operating Voltage: 12 – 24Vdc
Operating Current: 1.3A @ 12Vdc  |  0.7A @ 24Vdc
Power Consumption: 16W
Temperature Range: -55°C to +65°C
Ingress Protection: IP67
Weight: 21.0oz (594g)
Housing: Die Cast Aluminum
Lens: Polycarbonate
Polarity: Reverse Voltage Protected

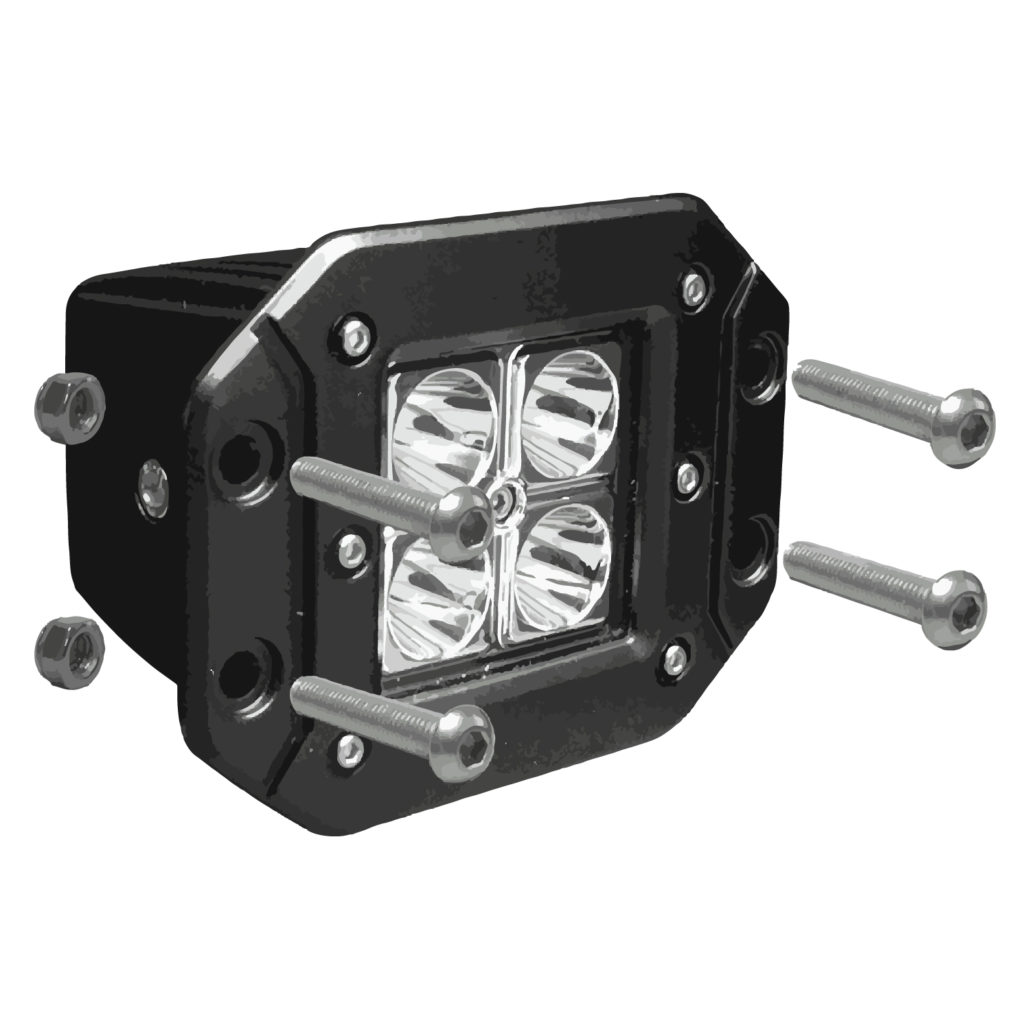

Mounting: 4 Bolts

Beam Patterns

Spot Pattern


Flood Pattern

Skus/Accessories
Part #Beam PatternLumensOperating Voltage

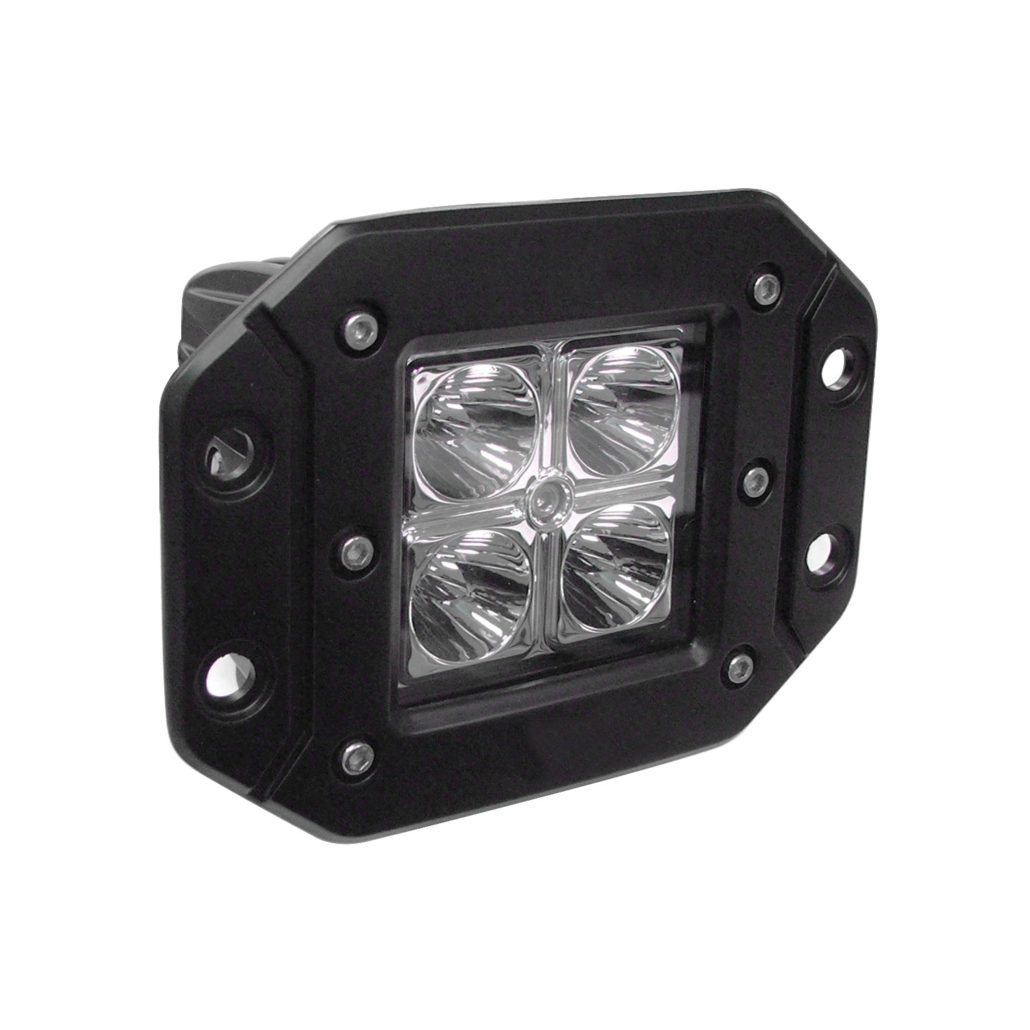

81725Spot108012 - 24Vdc

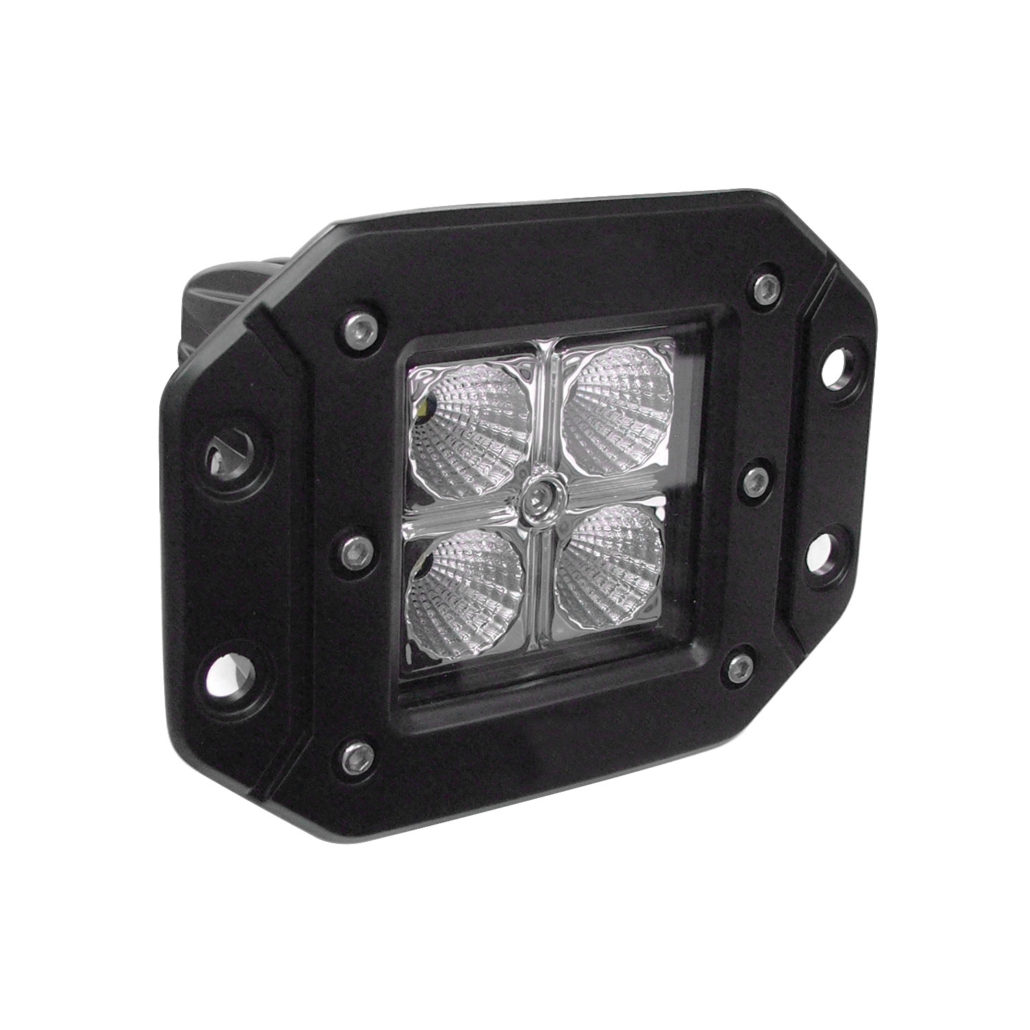

81726Flood108012 - 24Vdc
