Mini Cube LED

The Mini Cube LED work lights deliver 1080 lumens of illumination. These lights can be used as off-road driving lights, fog lights or added rear lighting. Their compact size and shape allows them to fit almost anywhere.

Features/Benefits
  • Use as an off-road driving light, fog light or added rear lighting
  • 6000K LED illumination – bright, crisp white light for enhanced nighttime visibility
  • Compact size and shape – fits almost anywhere, can be used for numerous lighting applications

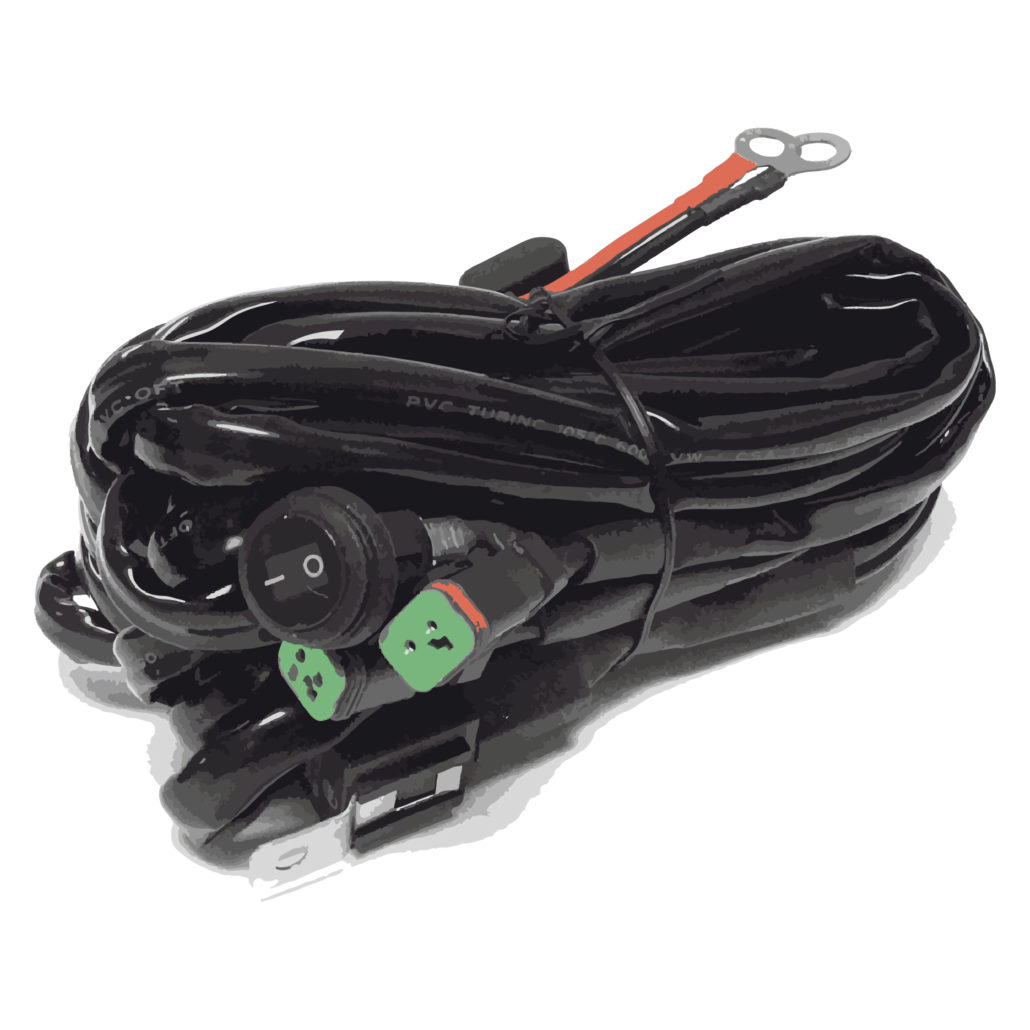

  • Sold as a kit – includes 2 lights, plug & play wire harness with switch, mounting brackets and hardware
Specifications

Operating Voltage: 12 – 24Vdc
Operating Current: 1.3A @ 12Vdc  |  0.7A @ 24Vdc
Power Consumption: 16W
Temperature Range: -55°C to +65°C
Ingress Protection: IP67
Weight: 19.5oz (552g)
Housing: Die Cast Aluminum
Lens: Polycarbonate
Polarity: Reverse Voltage Protected

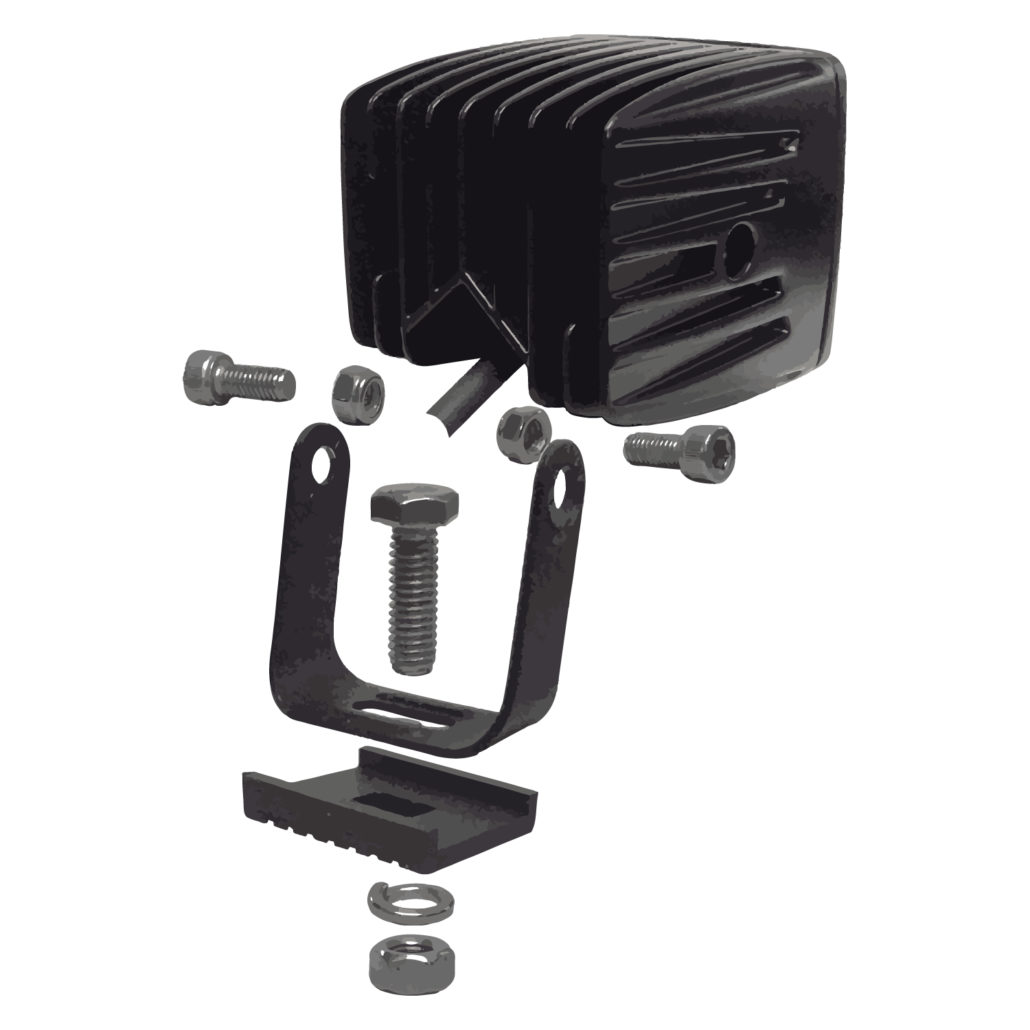

Mounting: U-Bracket

Beam Patterns

Spot Pattern


Flood Pattern

Skus/Accessories
Part #Beam PatternLumensOperating Voltage

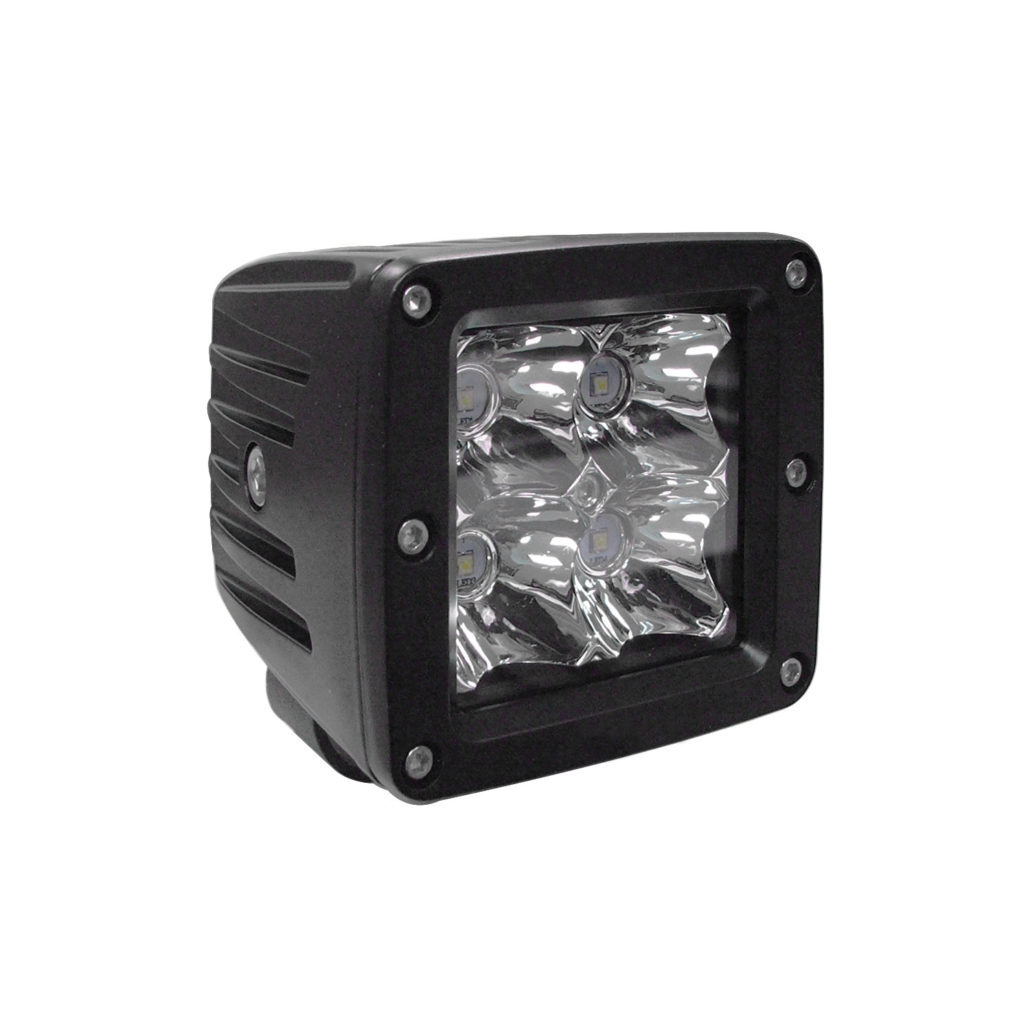

81723Spot108012 - 24Vdc

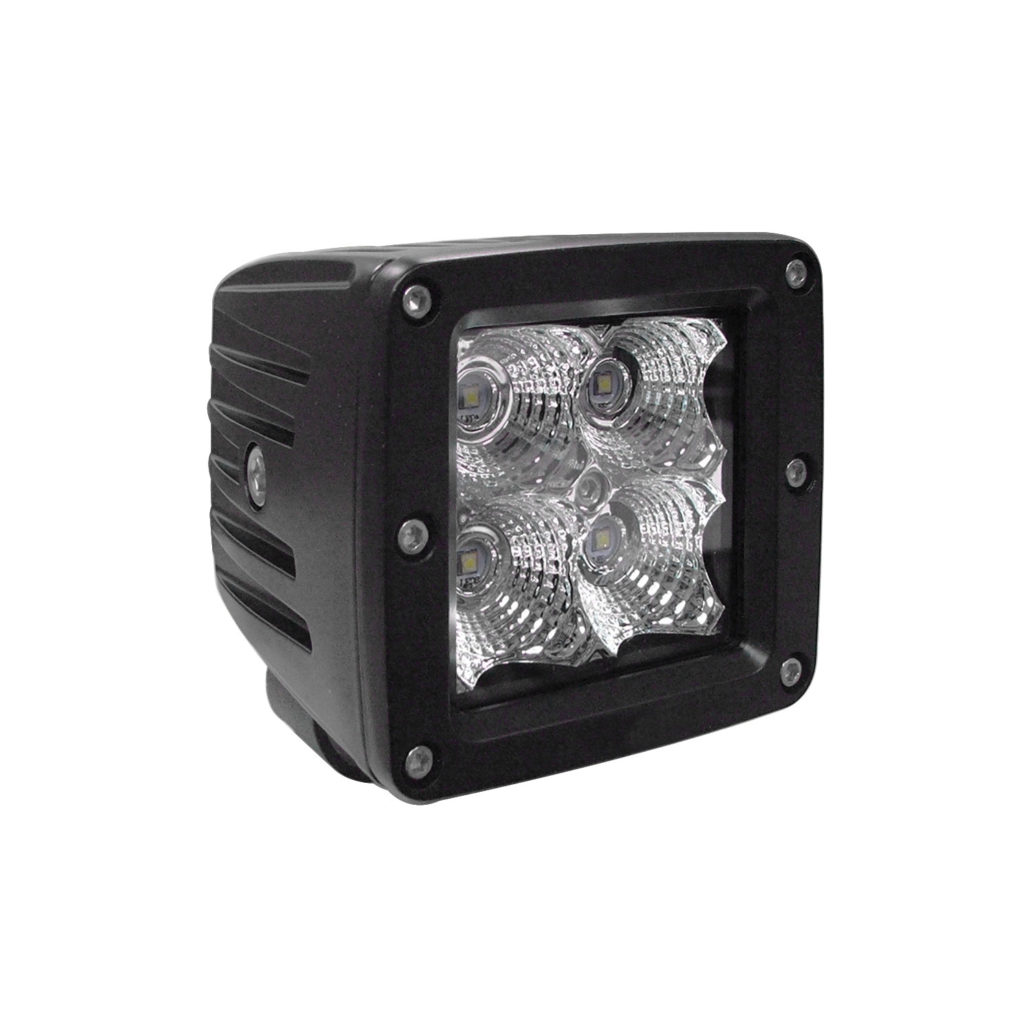

81724Flood108012 - 24Vdc
