XWL-810 Series Compact Work Light  |  6 LED  |  Soft Start

The XWL-810 series compact work lights deliver 1260 lumens of illumination and feature a soft start function that reduces the “in rush current”, improving electronic component life and easing the load on existing wiring and battery. These lights are built to withstand tough working environments and feature two attachment points, also known as the “2 Lives in 1” mount system. If one attachment point fails due to a collision, rotate to the next channel point and re-mount the light. One of the most versatile work lights on the market.

Features/Benefits

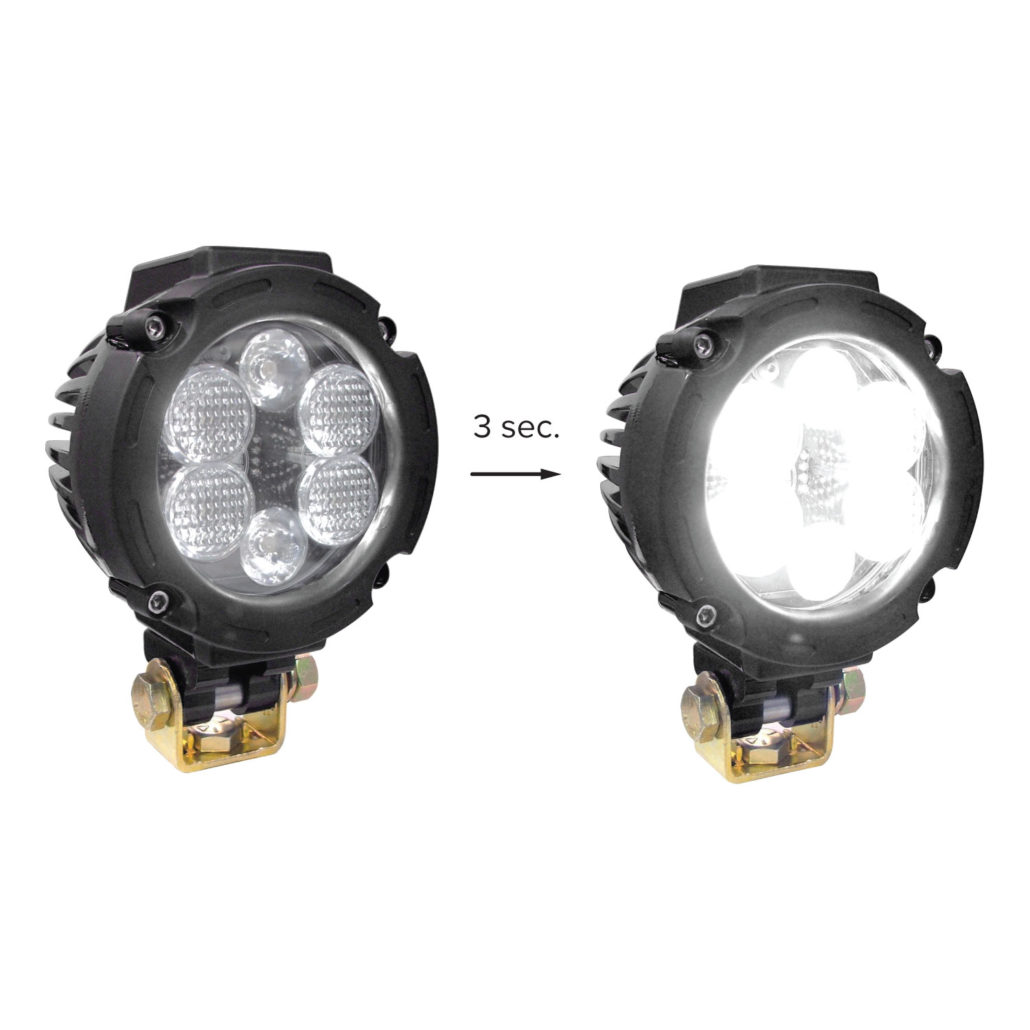

  • Soft start function – reduces the “in rush current”, improving electronic component life and easing the load on existing wiring and battery
  • 1260 lumens
  • Die cast aluminum housing, polycarbonate lens and high impact bezel – virtually unbreakable
  • IP68 & IP69K – will withstand dust, dirt and sand, and is resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes
  • 2 attachment points – if one attachment point fails due to a collision, rotate to the next channel point and re-mount the light
  • Low current draw – energy efficient, save on fuel costs as it consumes less energy (14W)
  • Constant current circuit draw – light does not dim even if voltage fluctuates
  • 4 beam patterns – get light where it’s needed for the job
  • 50,000+ hours LED service life and 5 year warranty
Specifications

Operating Voltage: 12 – 24Vdc
Operating Current: 1.2A @ 12Vdc  |  0.6A @ 24Vdc
Power Consumption: 14W
Temperature Range: -40°C to +80°C
Ingress Protection: IP68 & IP69K
Weight: 1.3lbs (0.6kg)
Housing: Die Cast Aluminum Alloy A380  |  Black E-Coat
Lens: Automotive Optical Grade Hard-Coated Polycarbonate
Connection: 6” Wire
Polarity: Reverse Voltage Protected
Vibration Resistance: 10-500Hz @ 5Grms
Mounting: C-Bracket (Powder Coated Steel) or Swivel Bracket (Zinc Dichromate Plating)
EMC Rated: EMC EN 13309: 2010

Beam Patterns

Spot Pattern

Wide Flood Pattern

Medium Flood Pattern

Hybrid Pattern

Skus/Accessories
Part #Beam PatternLumensOperating Voltage

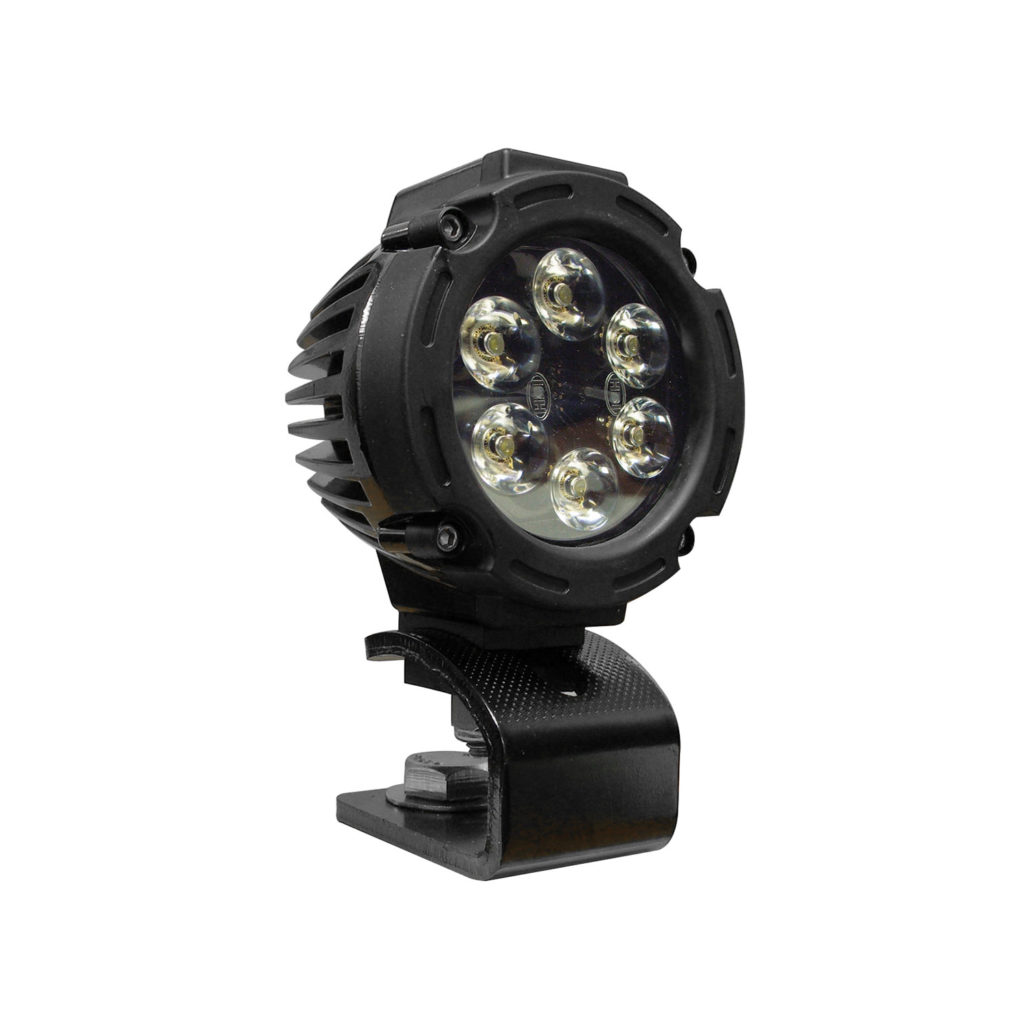

81801Spot126012 - 24Vdc

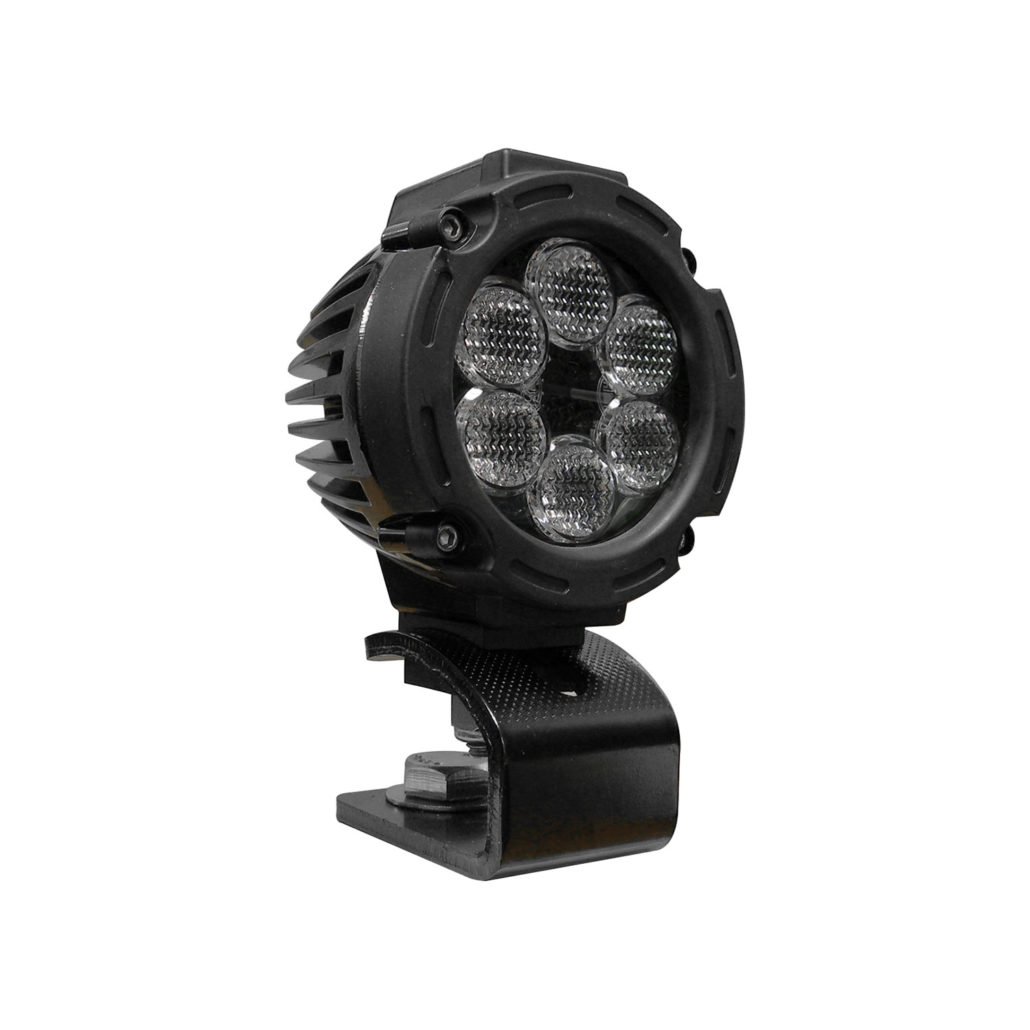

81802Wide Flood126012 - 24Vdc
81803Medium Flood126012 - 24Vdc

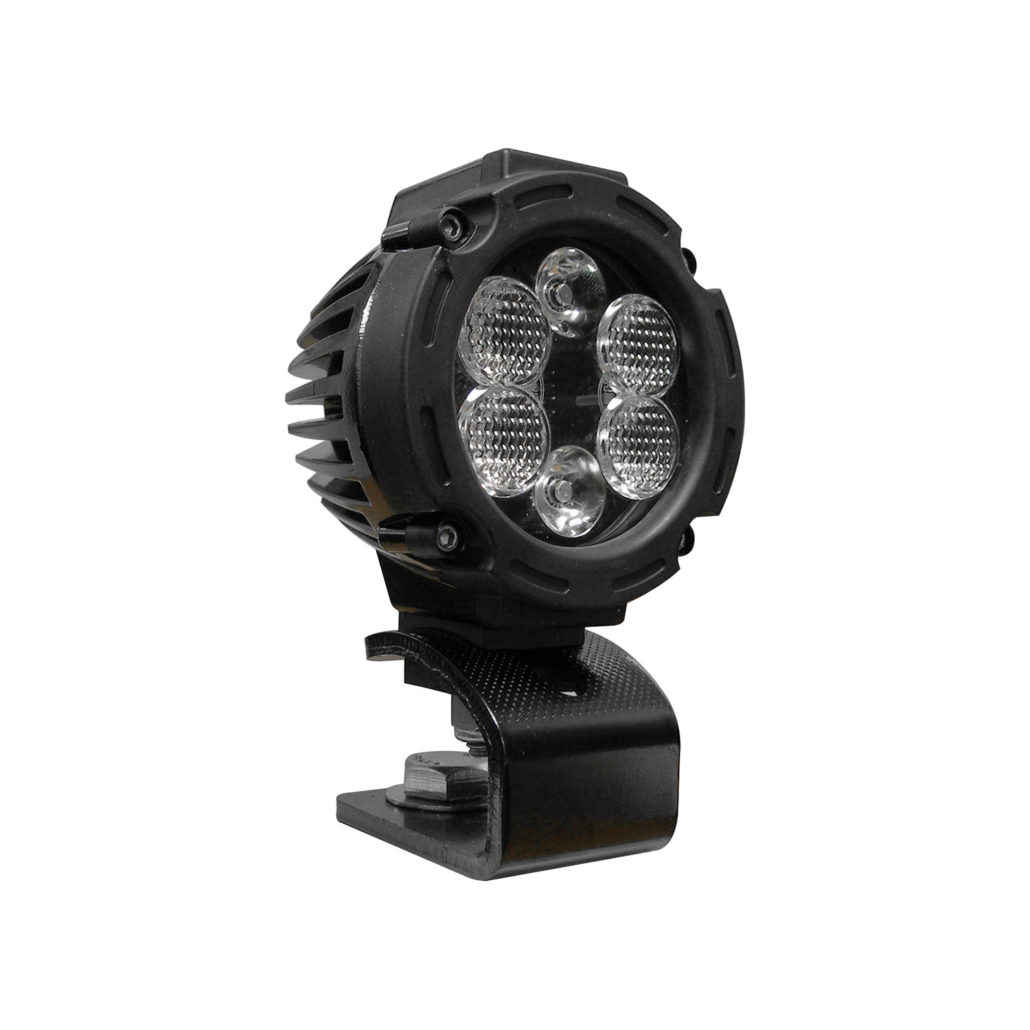

81804Hybrid126012 - 24Vdc
Swivel Bracket
81811Spot126012 - 24Vdc

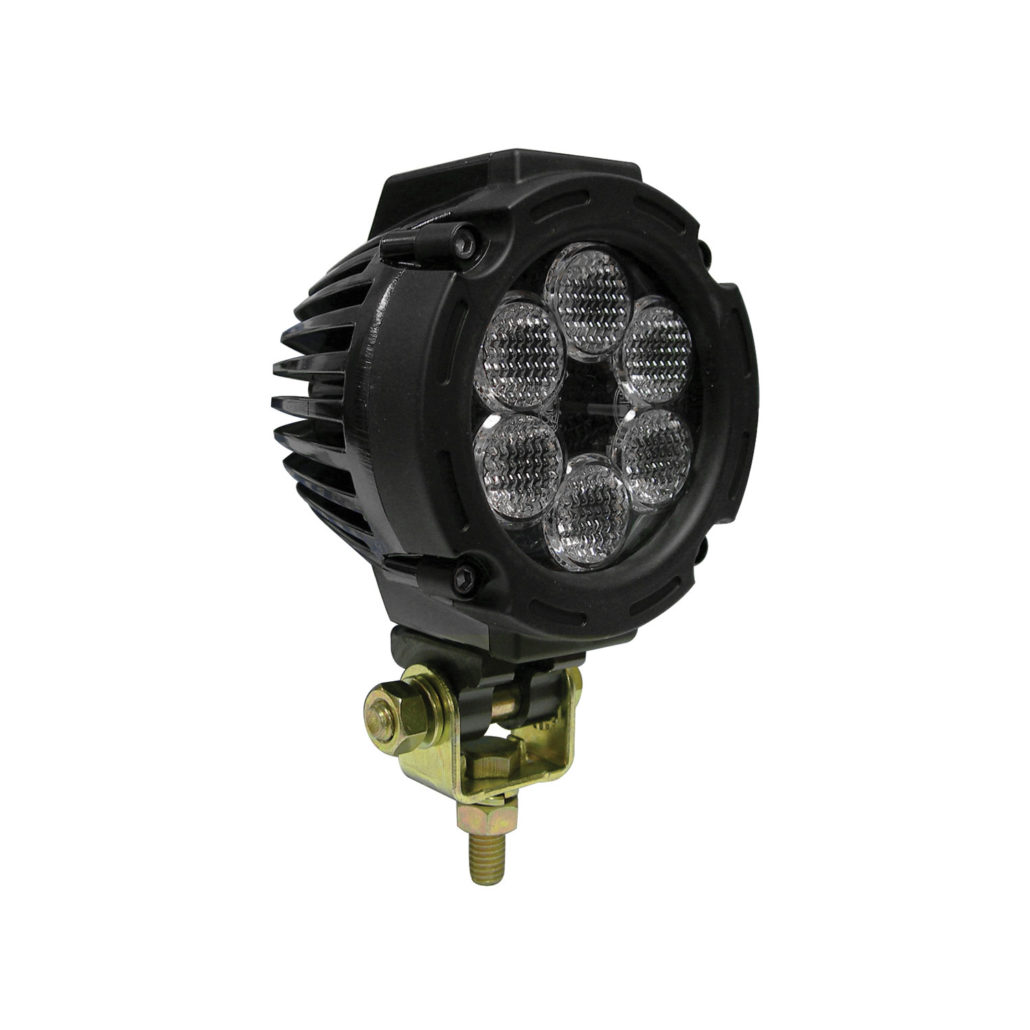

81812Wide Flood126012 - 24Vdc
81813Medium Flood126012 - 24Vdc

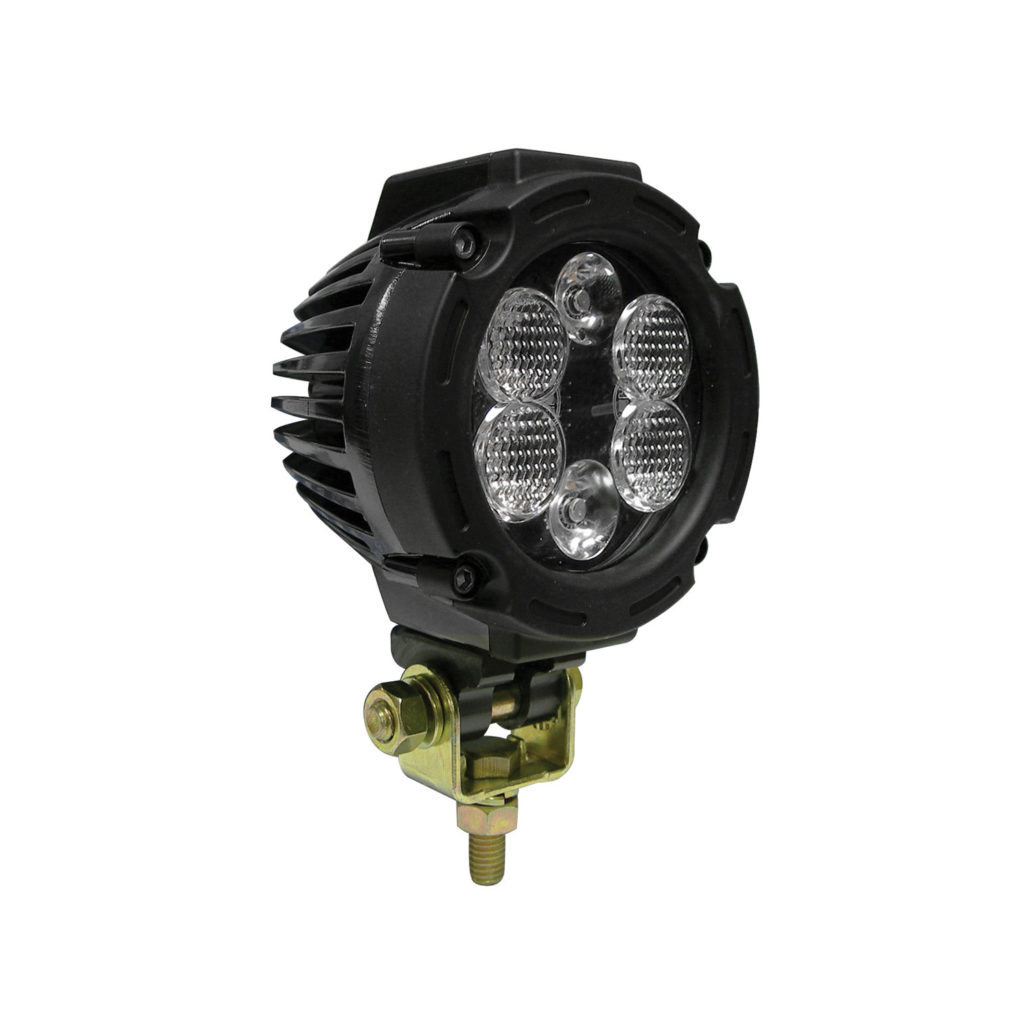

81814Hybrid126012 - 24Vdc
Accessories
HW02AHardware Kit | C-Bracket
98189Hardware Kit | Swivel Bracket
98195Easy Grip Handle - Black
