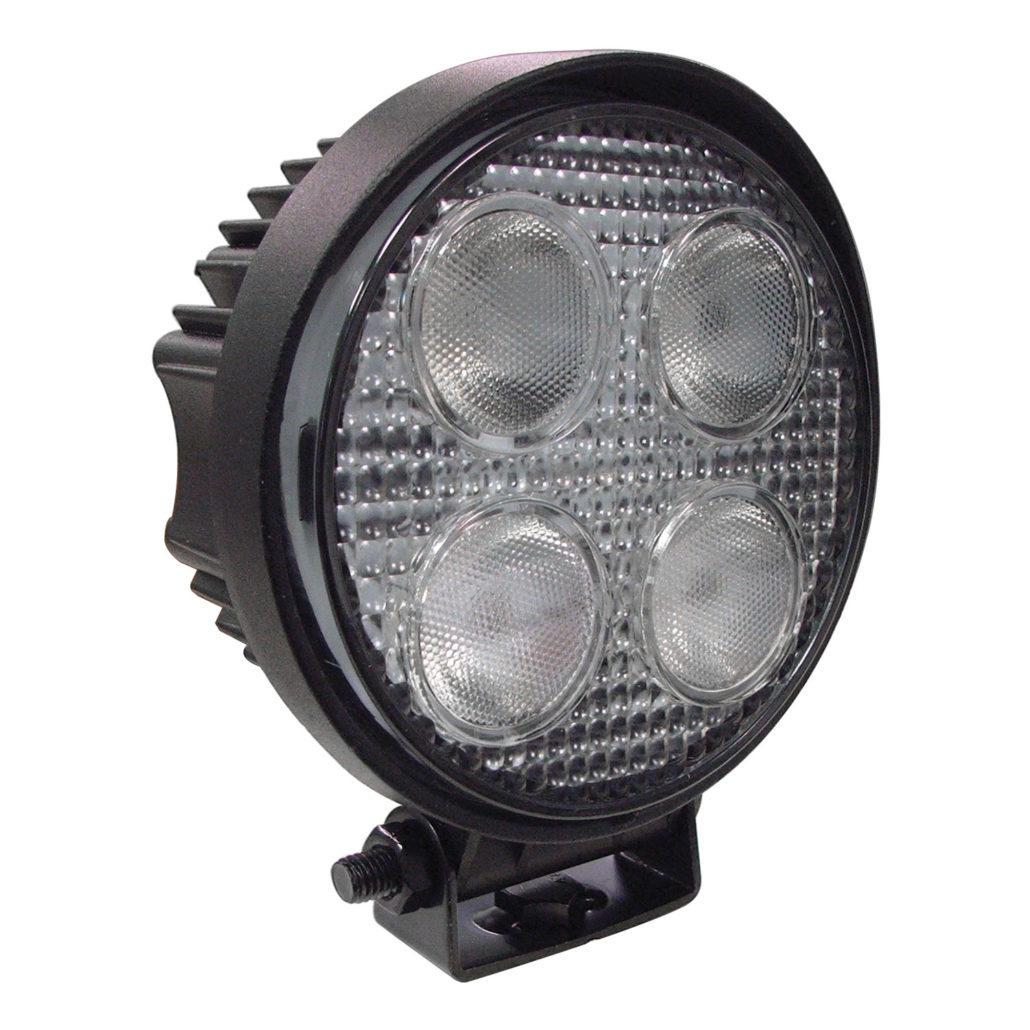

RD-1800  |  Value Series Work Light  |  4 LED

The RD-1800 work light delivers 1800 lumens of illumination. As part of our Value Series, it offers an economical solution to your work lighting needs.

  • 1800 lumens
  • CREE LED – superior lighting technology
  • Die cast aluminum housing & polycarbonate lens – virtually unbreakable
  • Stainless steel mounting hardware – 30° tilt range for mounting flexibility
  • Constant current circuit draw – light does not dim even if voltage fluctuates

Operating Voltage: 12 – 24Vdc
Operating Current: 1.6A @ 12Vdc  |  0.8A @ 24Vdc
Power Consumption: 20W
Temperature Range: -40°C to +85°C
Ingress Protection: IP68
Weight: 1.7lbs (0.8kg)
Housing: Die Cast Aluminum – Black E-Coat
Lens: Polycarbonate
Connection: Terminal Wires
Polarity: Reverse Voltage Protected
Mounting: Stainless Steel U-Bracket and Hardware

Beam Patterns

Flood Pattern

Part #Beam PatternLumensOperating Voltage
81256/1Flood140012 - 24Vdc
