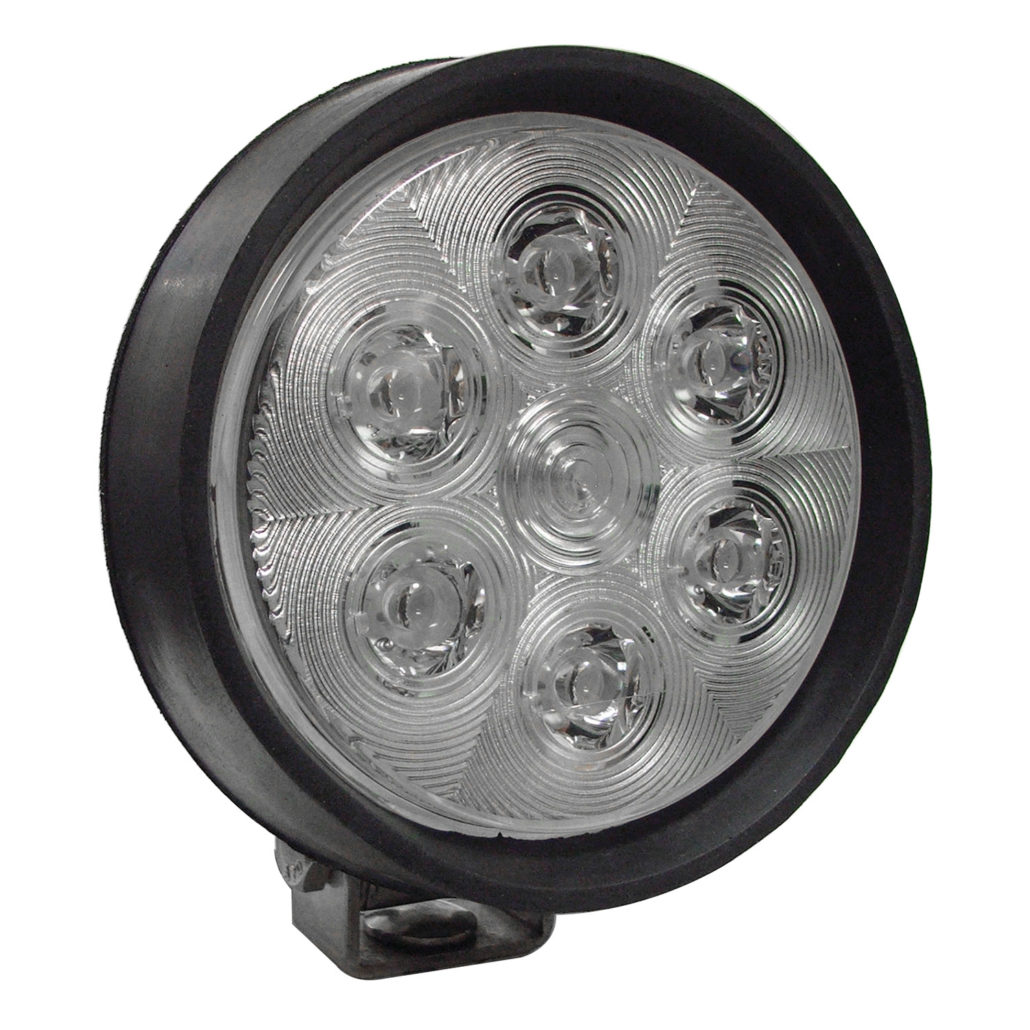

RD-1400  |  PAR 36 Work Light  |  6 LED

The RD-1400 PAR 36 work light delivers 1400 lumens of illumination, 3 times brighter than standard halogen PAR 36. This light also features a corrosion-proof rubber housing which is both durable and protective.

Features/Benefits
  • 1400 lumens – 3 times brighter than standard halogen PAR 36
  • 6 LEDs – energy efficient and long lasting
  • Corrosion-proof rubber housing – durable and protective

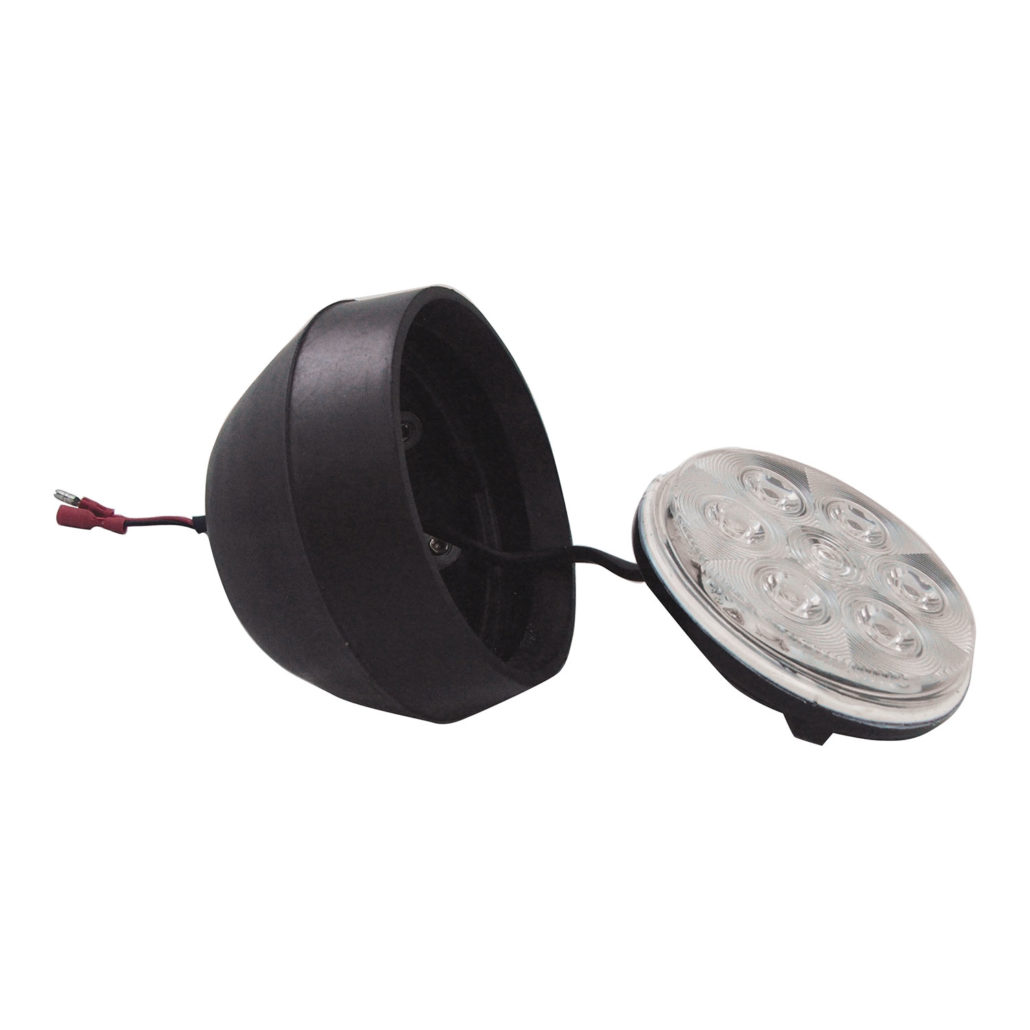

  • Direct replacement – LED fits into existing PAR 36 housing
  • Stainless steel mounting hardware – 30° tilt range for mounting flexibility
Specifications

Operating Voltage: 12 – 24Vdc
Operating Current: 0.7A @ 12Vdc  |  0.3A @ 24Vdc
Power Consumption: 8W
Temperature Range: -40°C to +85°C
Ingress Protection: IP66
Weight: 2.0lbs (0.9kg)
External Housing: EPDM Rubber
Lens: Automotive Optical Grade Hard-Coated Polycarbonate
Connection: Bullet
Polarity: Reverse Voltage Protected
Vibration Resistance: SAE J575
Mounting: Stainless Steel U-Bracket and Hardware
EMC Rated: EMC EN 13309:2010

Beam Patterns

Flood Pattern

Skus/Accessories
Part #Beam PatternLumensOperating Voltage
81256/1Flood140012 - 24Vdc
