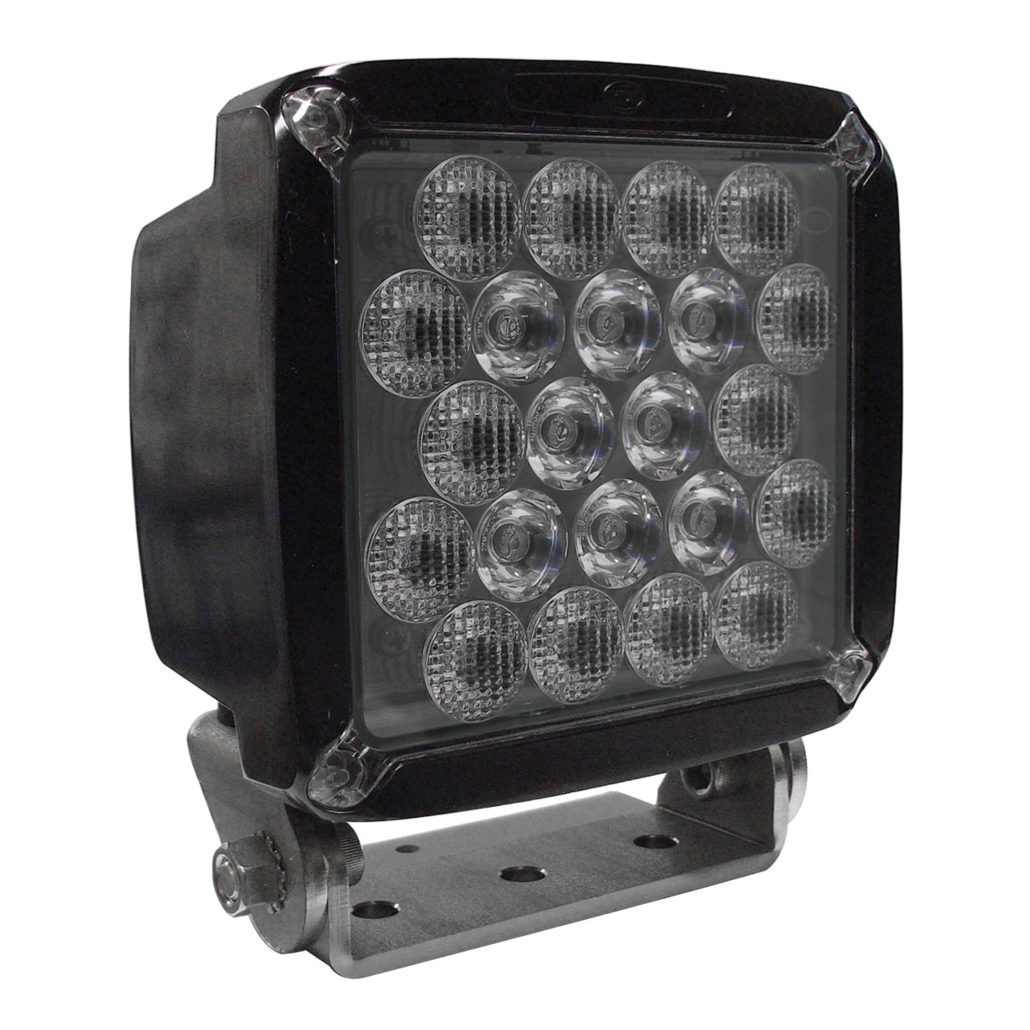

XWL-813 5000 Series Work Light  |  22 LED  |  Heavy Duty Mount (HDM)

The XWL-813 5000 series work lights deliver 5000 lumens of illumination. These lights are equipped with a heavy duty mount (HDM), consisting of super tough stainless steel mounting brackets and hardware. These lights also feature built-in vibration dampeners which reduce the intensity of shock and vibration.

  • 5000 lumens
  • Heavy duty mount
  • Die cast aluminum housing & polycarbonate lens – virtually unbreakable
  • IP68 & IP69K – will withstand dust, dirt and sand, and is resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes
  • Low current draw – energy efficient, save on fuel costs as it consumes less energy (50W)
  • Constant current circuit draw – light does not dim even if voltage fluctuates
  • Built-in vibration dampeners – reduce the intensity of shock and vibration
  • 3 beam patterns – get light where it’s needed for the job
  • 50,000+ hours LED service life and 5 year warranty

Operating Voltage: 12 – 24Vdc
Operating Current: 4.2A @ 12Vdc  |  2.1A @ 24Vdc
Power Consumption: 50W
Temperature Range: -40°C to +60°C
Ingress Protection: IP68 & IP69K
Weight: 3.5lbs (1.6kg)
Housing: Die Cast Aluminum – Black E-Coat
Lens: Automotive Optical Grade Hard-Coated Polycarbonate
Connection: Tyco or Deutsch
Polarity: Reverse Voltage Protected
Vibration Resistance: 10-500Hz @ 5Grms

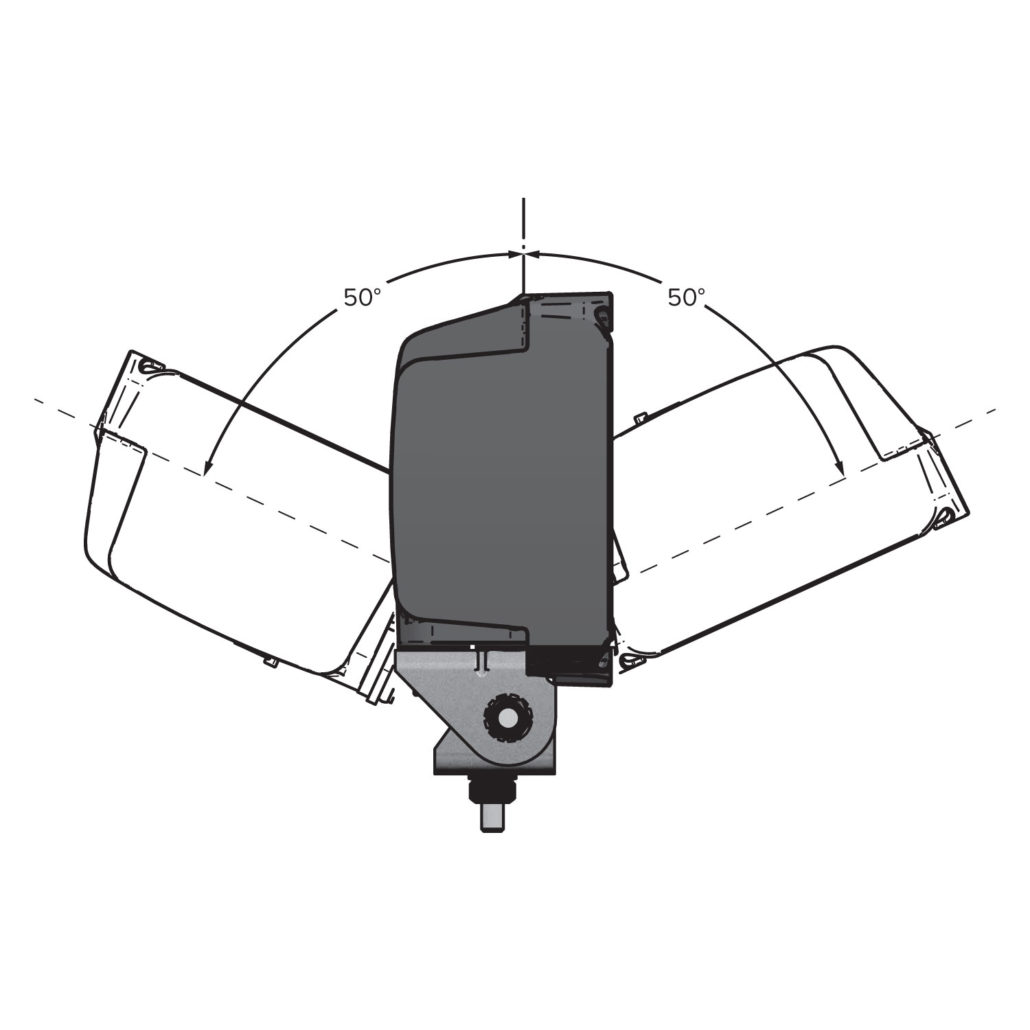

Mounting: U-Bracket
EMC Rated: EMC EN 13309: 2010

Beam Patterns

Spot Pattern

Medium Flood Pattern

Hybrid Pattern

Part #Beam PatternLumensOperating Voltage

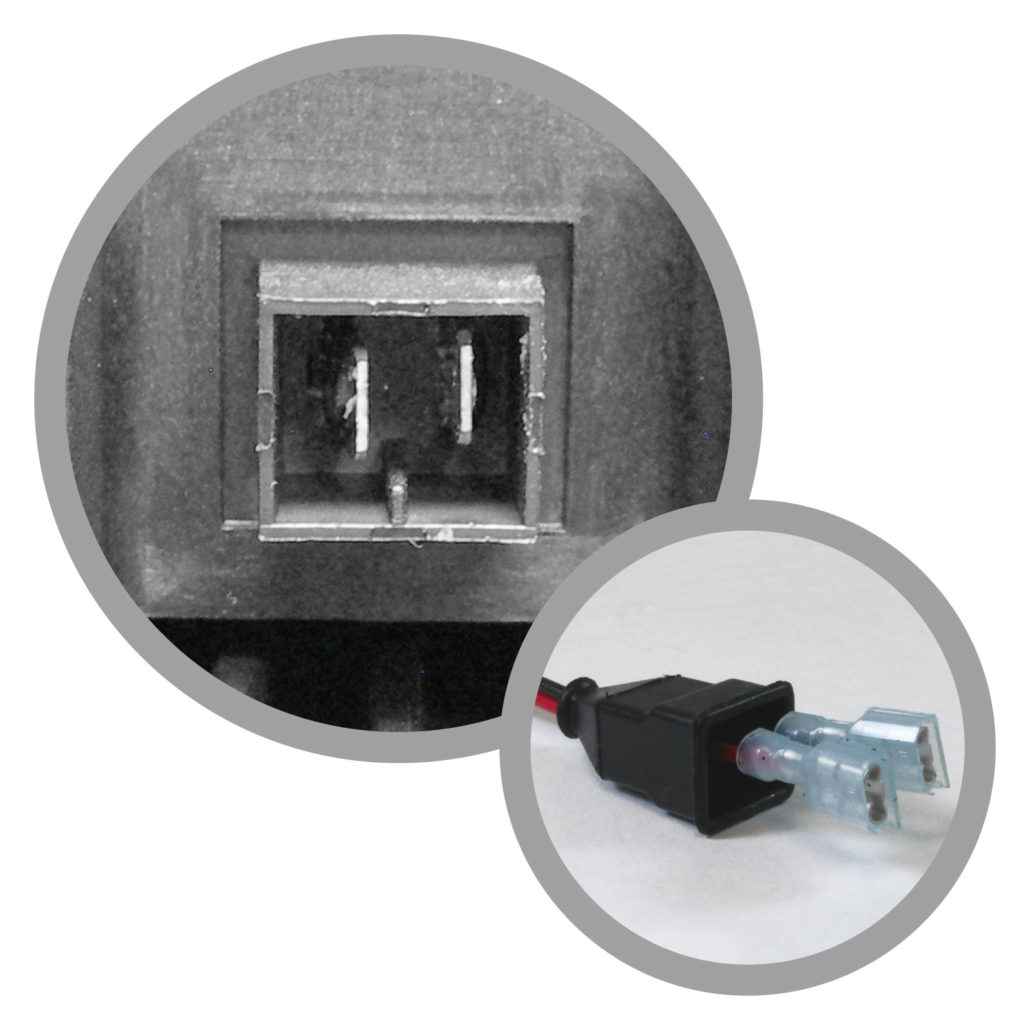

Tyco Connector
81665Spot500012 - 24Vdc
81666Medium Flood500012 - 24Vdc
81667Hybrid500012 - 24Vdc

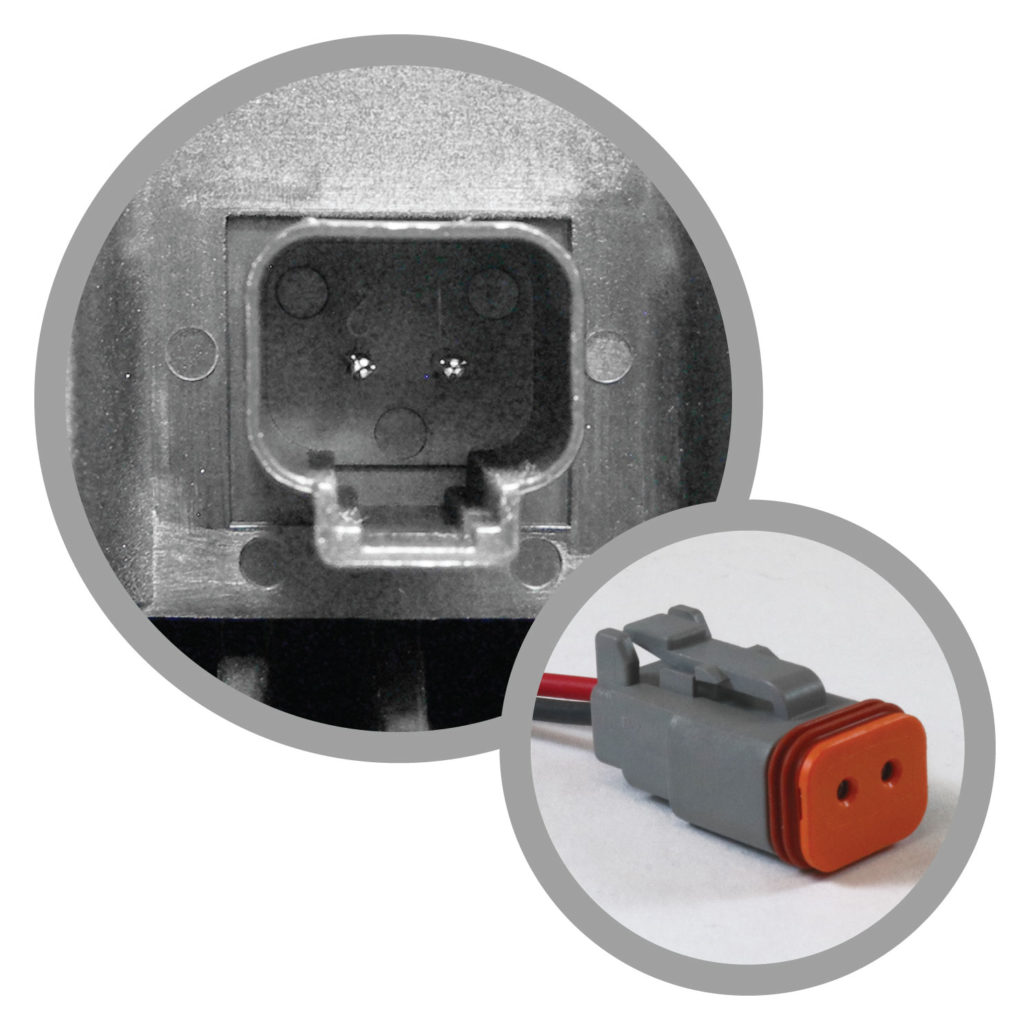

Deutsch Connector
81668Spot500012 - 24Vdc
81669Medium Flood500012 - 24Vdc
81670Hybrid500012 - 24Vdc
98195Easy-Grip Handle - Black
