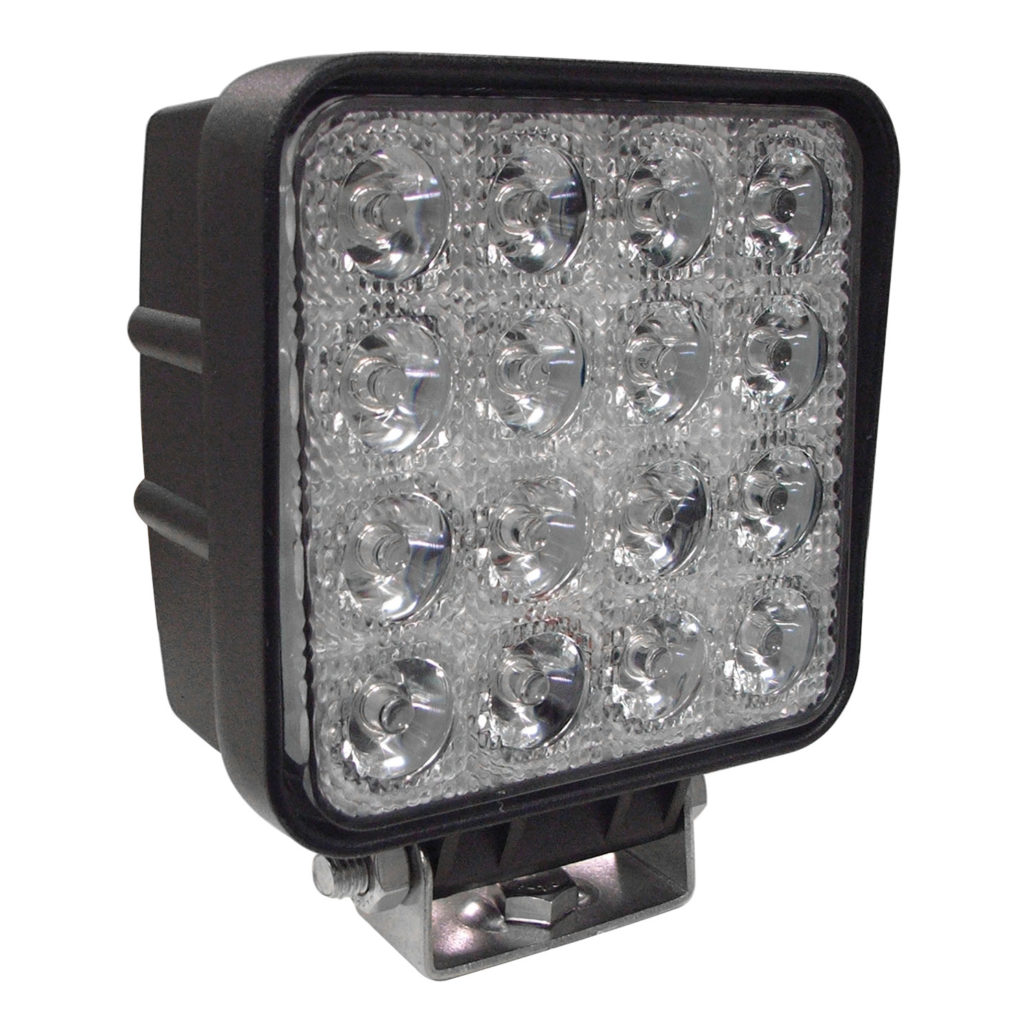

SQ-3000  |  Value Series Work Light  |  16 LED

The SQ-3000 work light delivers 3000 lumens of illumination. As part of our Value Series, it offers an economical solution to your work lighting needs.

  • 3000 lumens
  • EPISTAR LED – superior lighting technology
  • Die cast aluminum housing & polycarbonate lens – virtually unbreakable
  • Stainless steel mounting hardware – 30° tilt range for mounting flexibility
  • Constant current circuit draw – light does not dim even if voltage fluctuates

Operating Voltage: 12 – 24Vdc
Operating Current: 4.0A @ 12Vdc  |  2.0A @ 24Vdc
Power Consumption: 48W
Temperature Range: -40°C to +85°C
Ingress Protection: IP68
Weight: 1.9lbs (0.9kg)
Housing: Die Cast Aluminum – Black E-Coat
Lens: Polycarbonate
Connection: Terminal Wires
Polarity: Reverse Voltage Protected
Mounting: Stainless Steel U-Bracket and Hardware

Beam Patterns

Flood Pattern

Part#Beam PatternLumensVoltage Range
81257Flood180012 - 24Vdc
