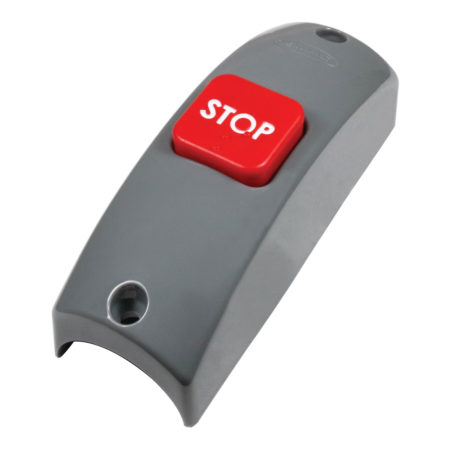

Seatback Wireless Bell Push

The wireless and battery-less bell push uses radio transmission to communicate between a passenger bell push and the vehicle mounted receiver.

Features & Benefits

Safety and rider experience disruptor
Wireless and battery-less bell push – energy conversion technology
2.4GHz – a global ready frequency
Can be mounted on the internal surface of a seat panel
Compact design with screw fixing offers flexibility for installation locations
Eliminates the need for cables – no additional weight
OEM benefit – no wiring installation in each bus, saving time and expense
Eliminates long “vehicle off road” time in finding chaffed wire failures
Single receiver to interface with vehicle electrical system – easily and quickly programmable (no software downloads)
Unique 32-bit module identification code – no vehicle cross-talk

SKUs/Accessories Available

Part #	Description	Button
30000	2.4GHz Wireless Bell Push Receiver Module \| 30 Channel
30004	2.4GHz Wireless Bell Push Receiver Module \| 100 Channel

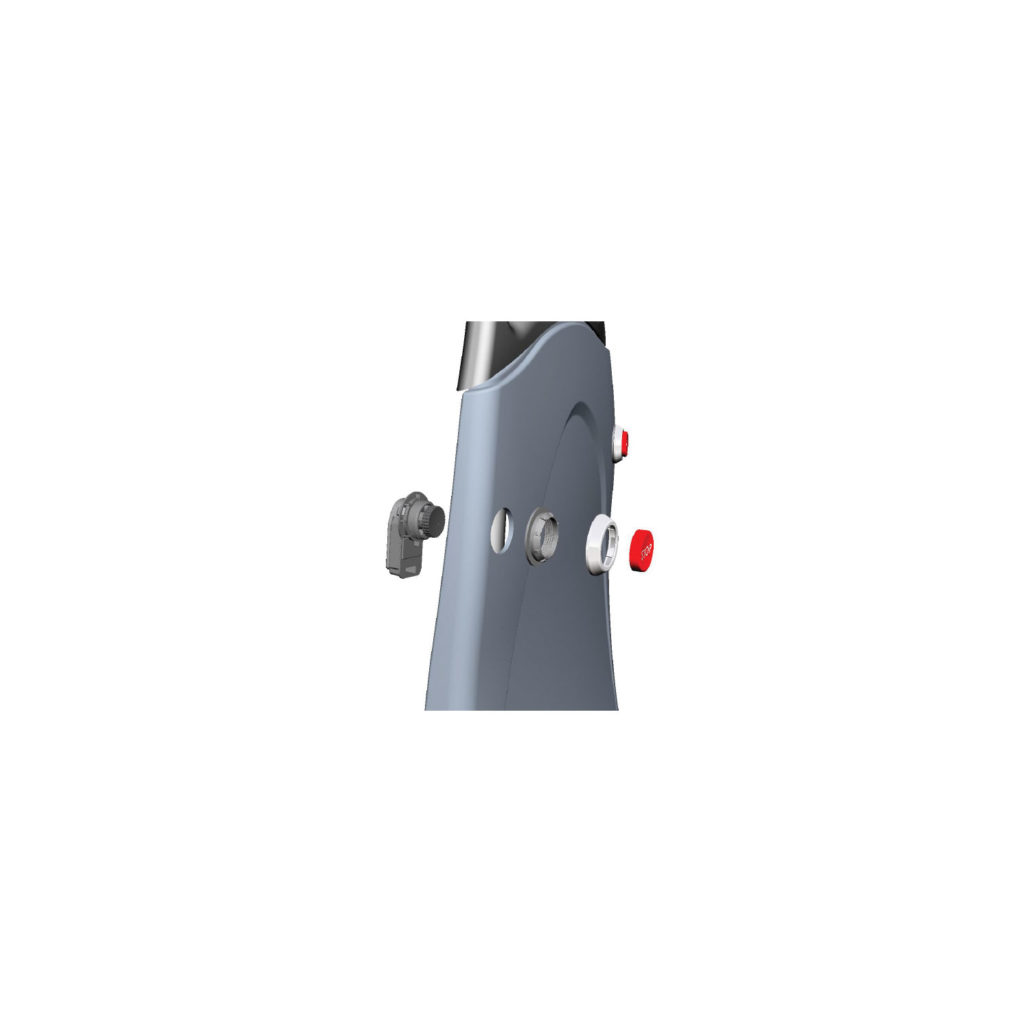

30005	Wireless Seatback and Panel Mount Assembly

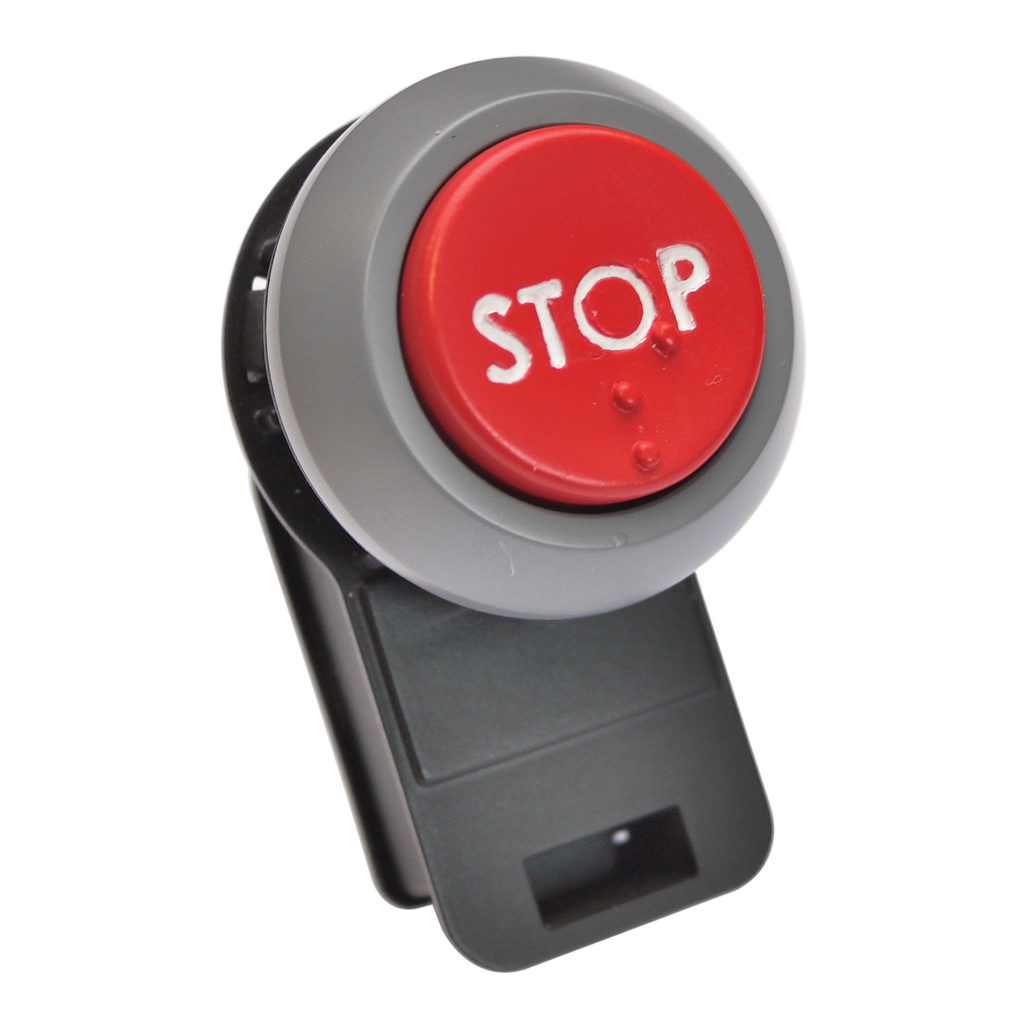

30006	Cover Push Button \| Red	STOP

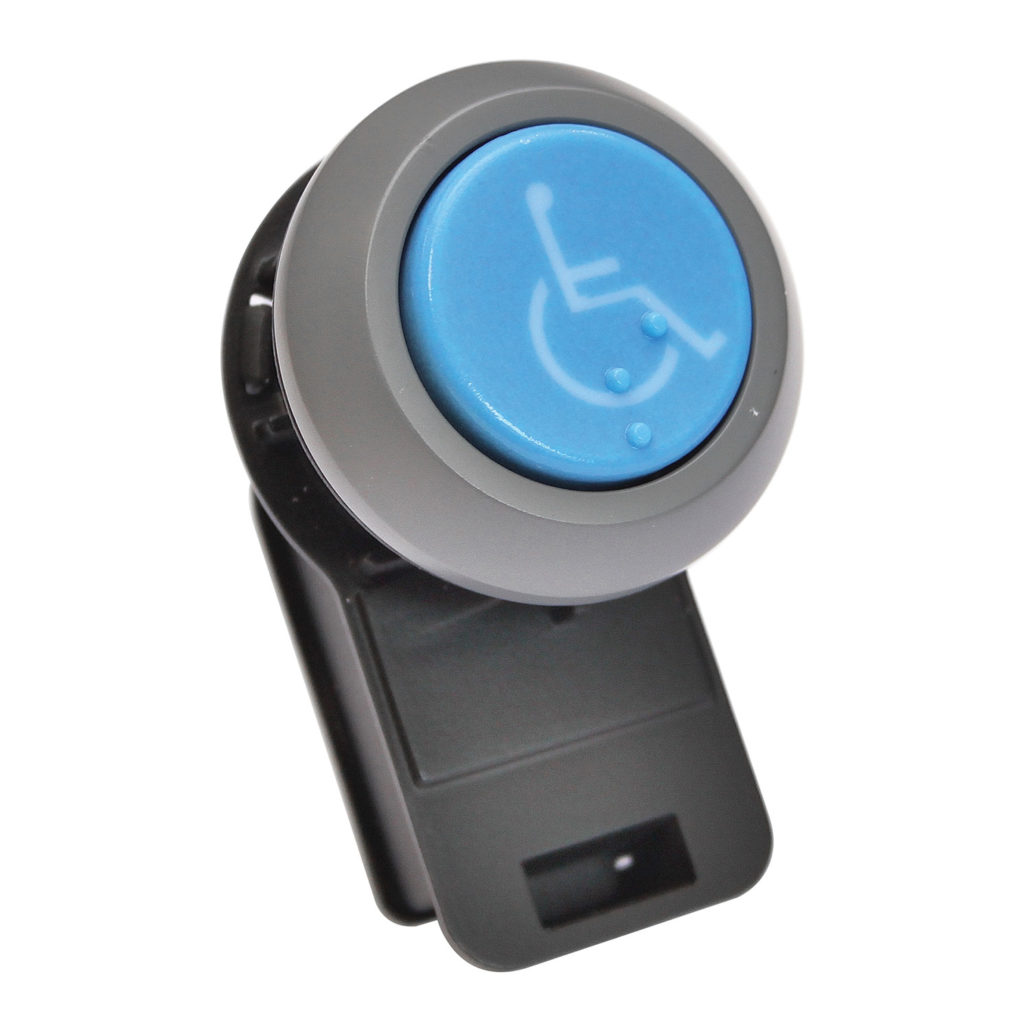

30007	Cover Push Button \| Blue	WHEELCHAIR

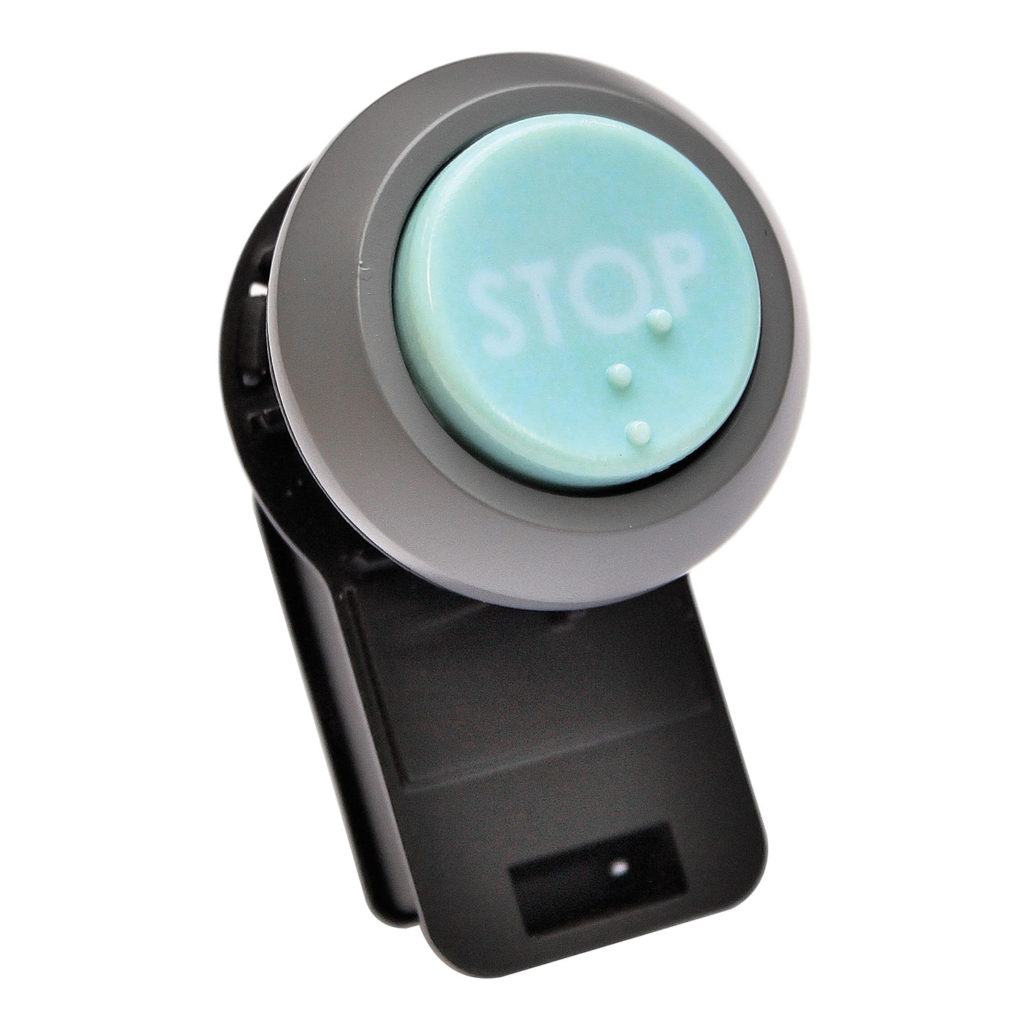

30008	Cover Push Button \| Aqua	STOP

Wireless Bell Push
