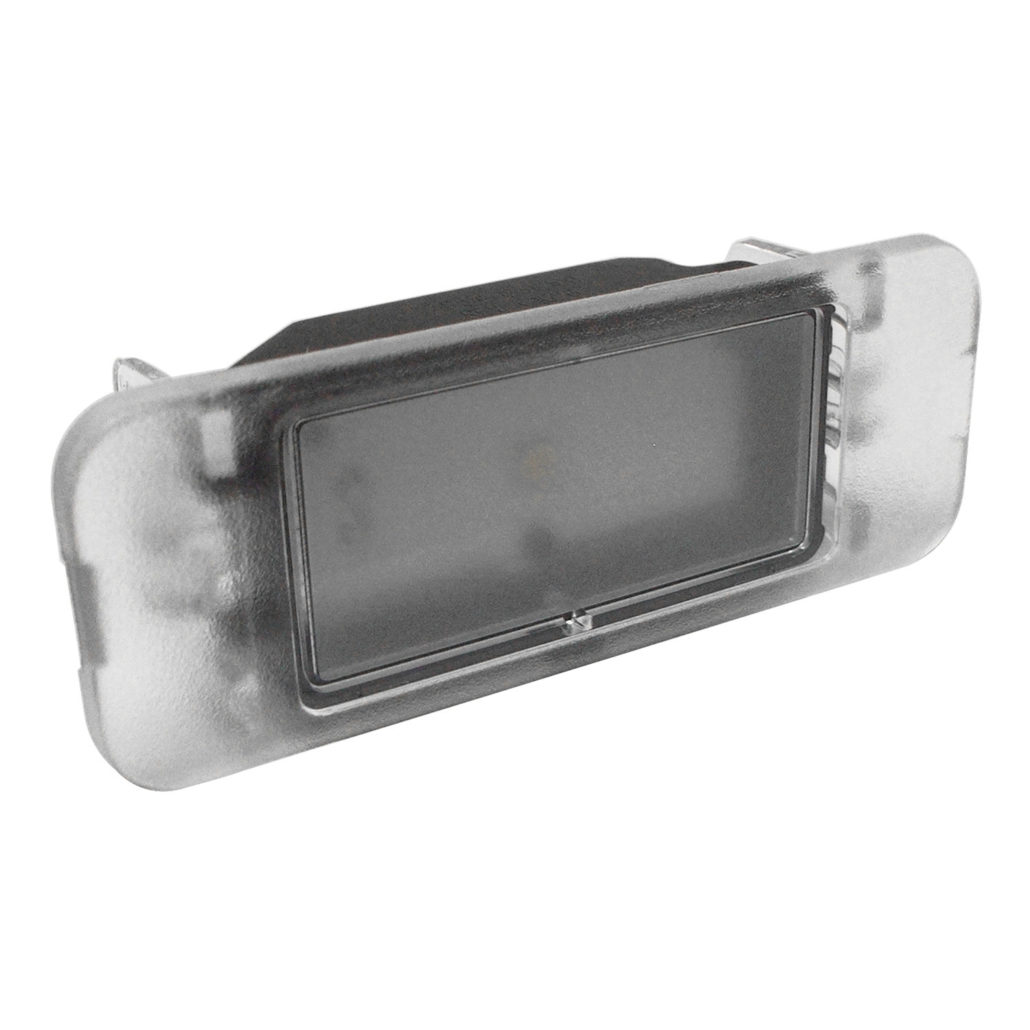

These LED footwell lights are OEM commercial grade and widely used in heavy duty trailer and RV applications.
Operating Voltage: 12Vdc
Operating Current: 83mA @ 12Vdc
Power Consumption: 1W | Pin A Ground | Pin B Power
Light Source: Long Lifespan LED
Mounting: Flush Mount with Integrated Clip Feature | Optional Screw Mount Bezel
Clip Tolerance: 3.2mm ± 0.5mm for 3.2mm Thick Panel
Mating Connector: Delphi #12047662 | 2-Way
