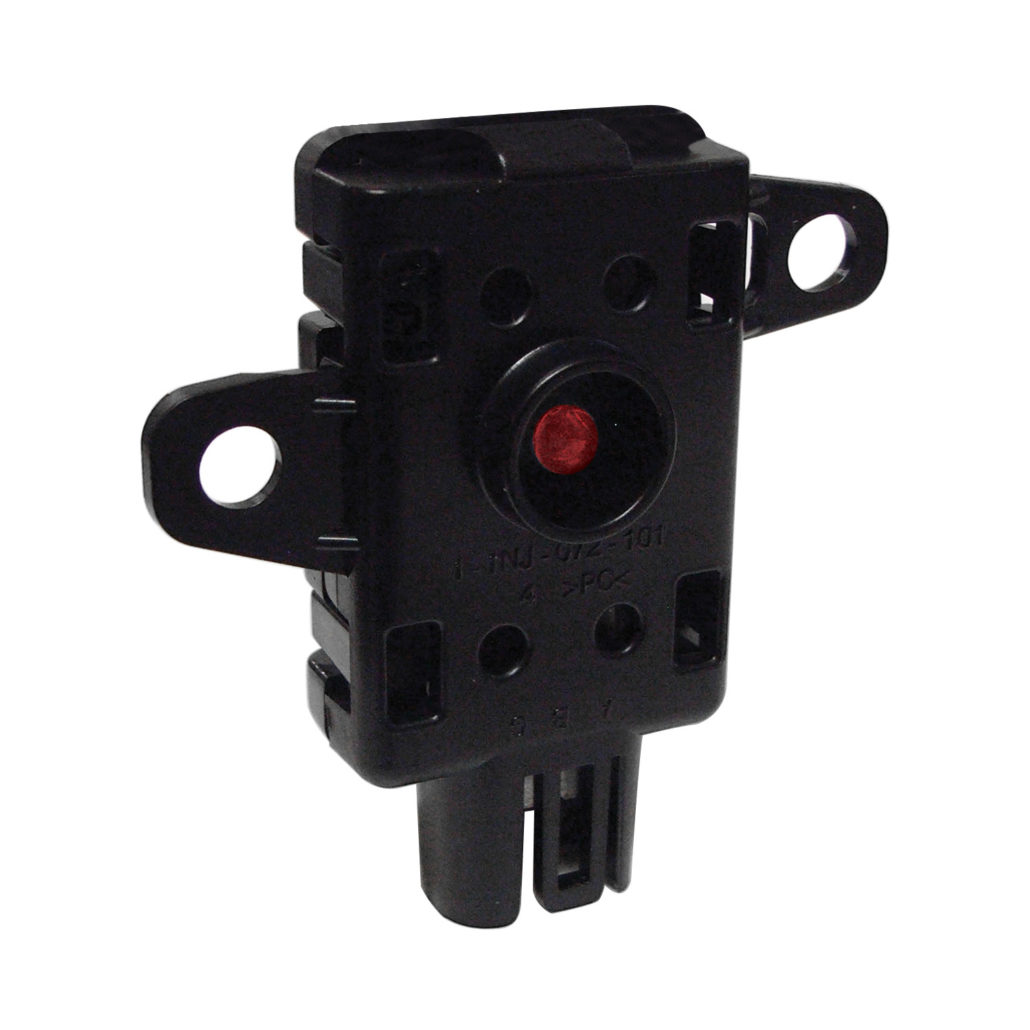

LED Ambient Light  |  Red

These LED ambient lights are OEM commercial grade and widely used in heavy duty trailer and RV applications.

Operating Voltage: 12Vdc
Operating Current: 3mA @ 12Vdc
Power Consumption: 0.04W Pin A Ground | Pin B Empty | Pin C Power
Light Source: Long Lifespan LED | Low Level Output

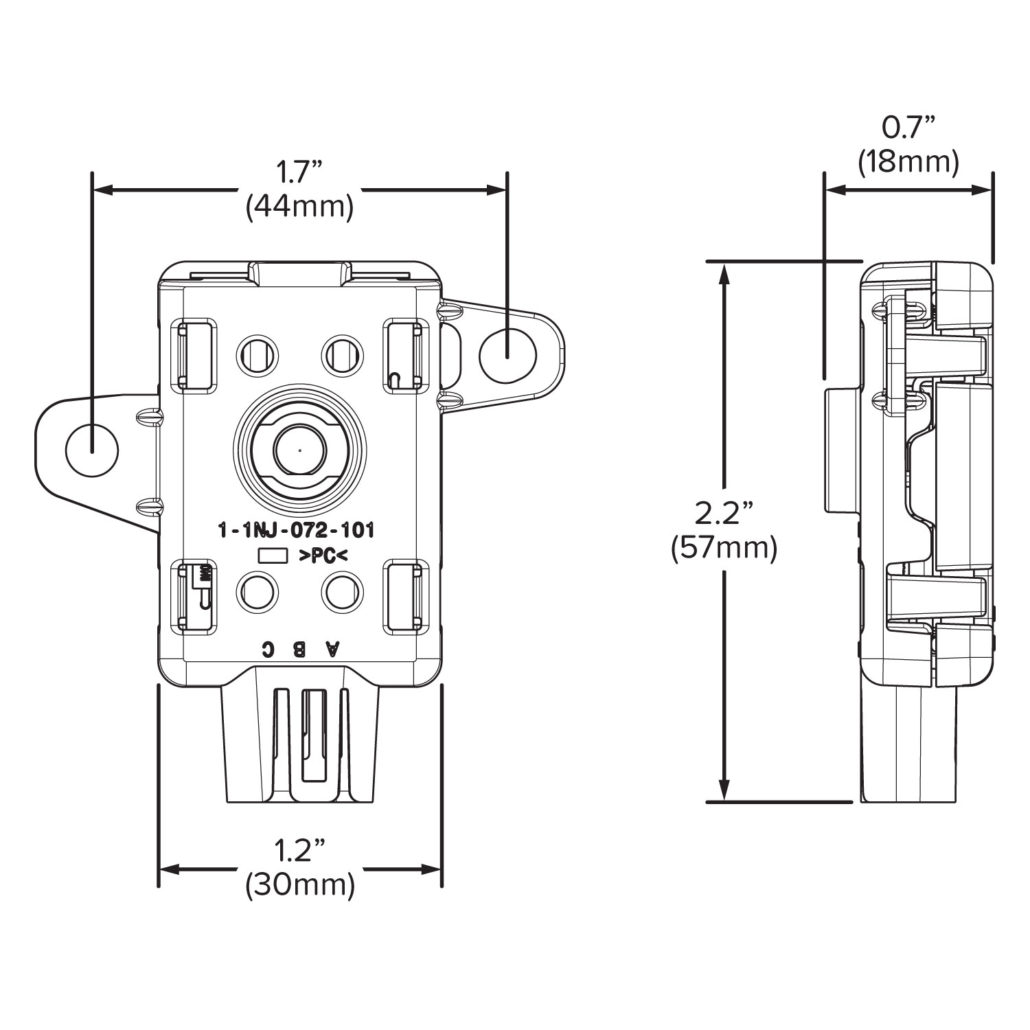

Mounting: Screw-In Back Mount  |  Cutout 0.5” (13mm) x 0.2” (4mm)
Mating Connector: Delphi #12047781 | 3-Way
