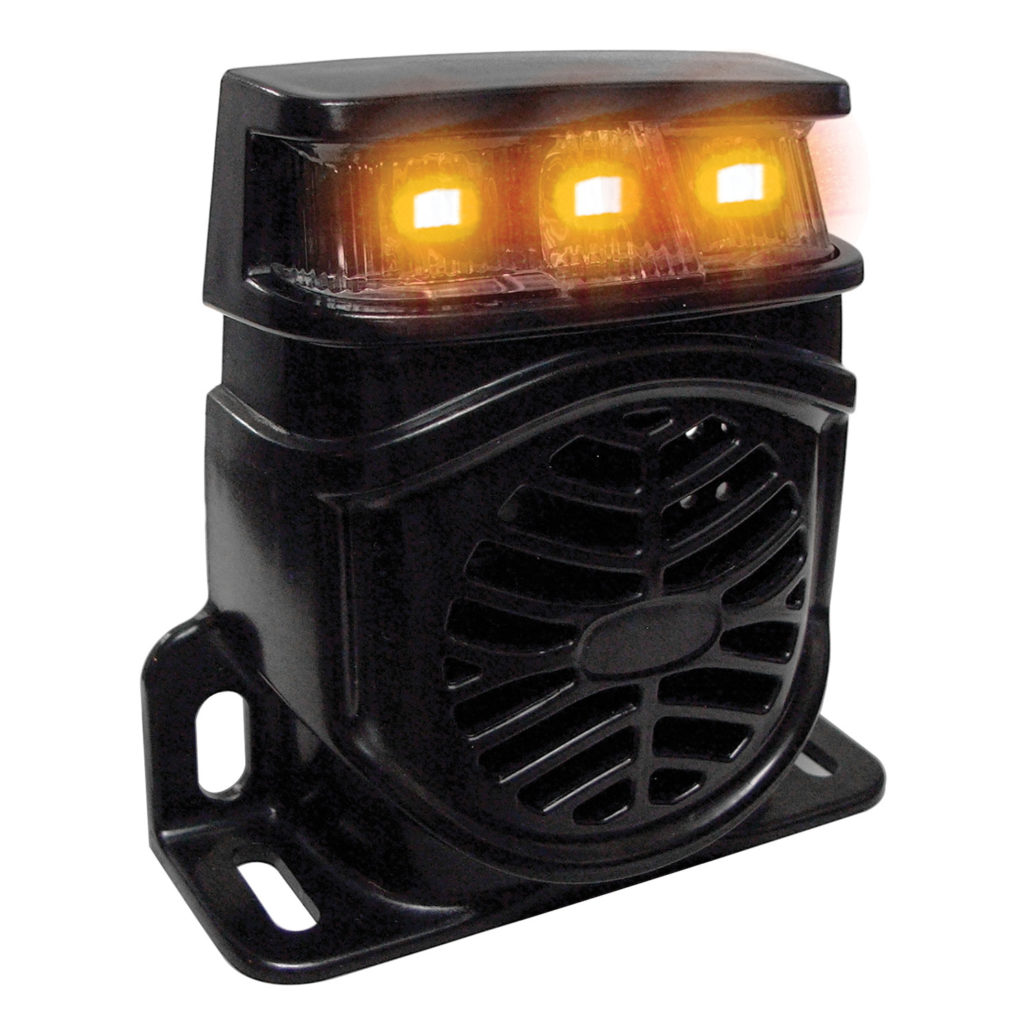

Lumalarm | LED Back Up Alarm

SAE/DOT. Multi-functional back up alarm with flashing amber LED warning lights. Night silent function for use in sound sensitive areas.

Ideal for: Dump Trucks, Trucks, Forklifts, Construction Vehicles, Mining Vehicles, Semi-Trailers.

Features & Benefits
  • Night silent – Alarm can be disengaged when in sound sensitive areas. Flashing amber LED warning stays on, warning pedestrians of vehicle presence.
  • 200 lumen amber LED – Provides bright visual warning of vehicle backing up in addition to audible alarm.
  • Wraparound LED lens – Flashing amber LED warning visible beyond 180° on either side of back up alarm, providing added safety.
  • ABS plastic housing – Robust construction for heavy duty applications.
  • Epoxy encapsulated electronics – Electronic components are protected against environmental elements.
Specifications

Lumens: 200

Operating Voltage: 12-24Vdc

Operating Current: 500mA

Weight: 0.2 kg (0.44 lbs)

Housing: Black ABS Plastic

Lens: PMMA Clear Optical Grade Plastic

Temperature Range: -40°C to +85°C

SAE / DOT: SAE J994

Connection: 5 Wires (no connector terminals)

SKUs/Accessories Available
Part#DescriptionDecibels
52050Lumalarm LED Back Up Alarm | 12 - 24Vdc87dB
52051Lumalarm LED Back Up Alarm | 12 - 24Vdc97dB
52052Lumalarm LED Back Up Alarm | 12 - 24Vdc107dB

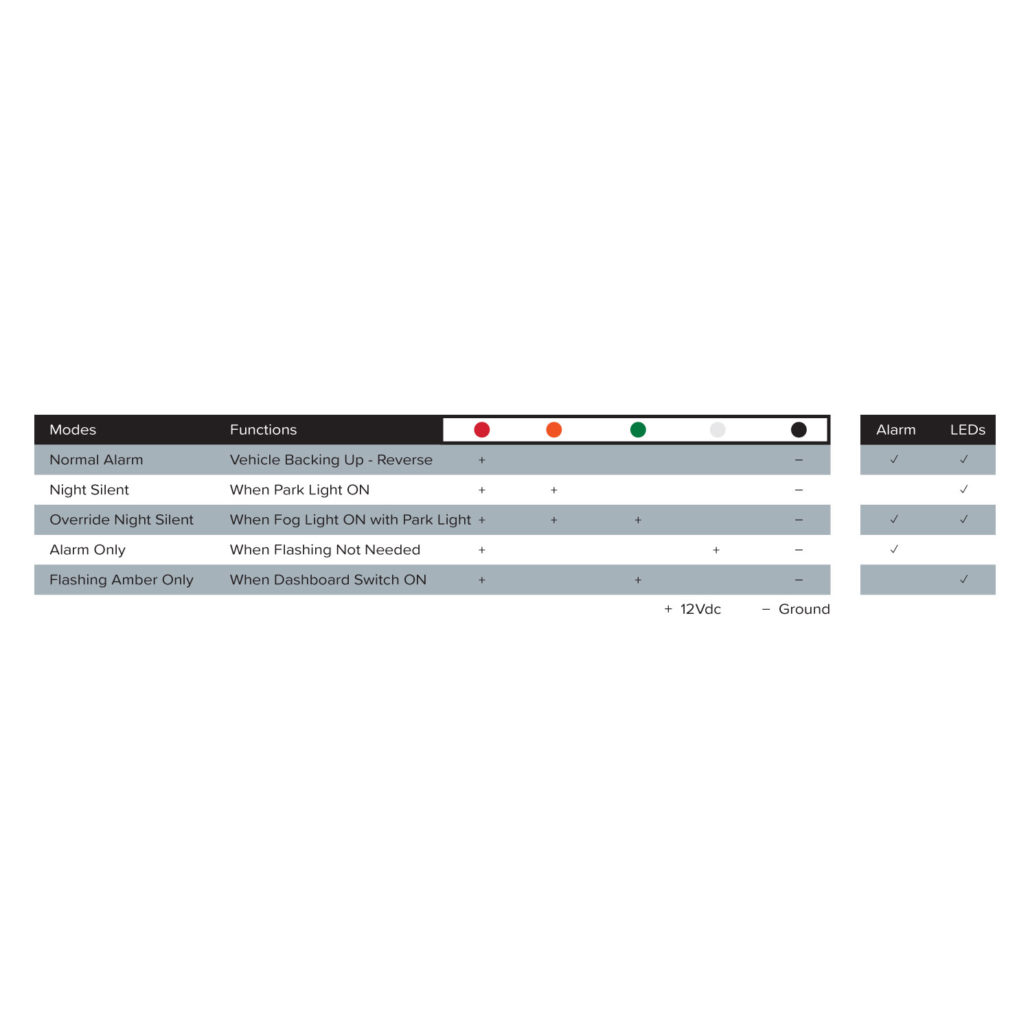

ModesFunctionsRedOrangeGreenWhiteBlackAlarmLEDs
Normal AlarmVehicle Backing Up - Reverse+-**
Night SilentWhen Park Light ON++-*
Override Night SilentWhen Fog Light ON with Park Light+++-**
Alarm OnlyWhen Flashing Not Needed++-*
Flashing Amber OnlyWhen Dashboard Switch On++-*
+ (12Vdc)
- (Ground)
