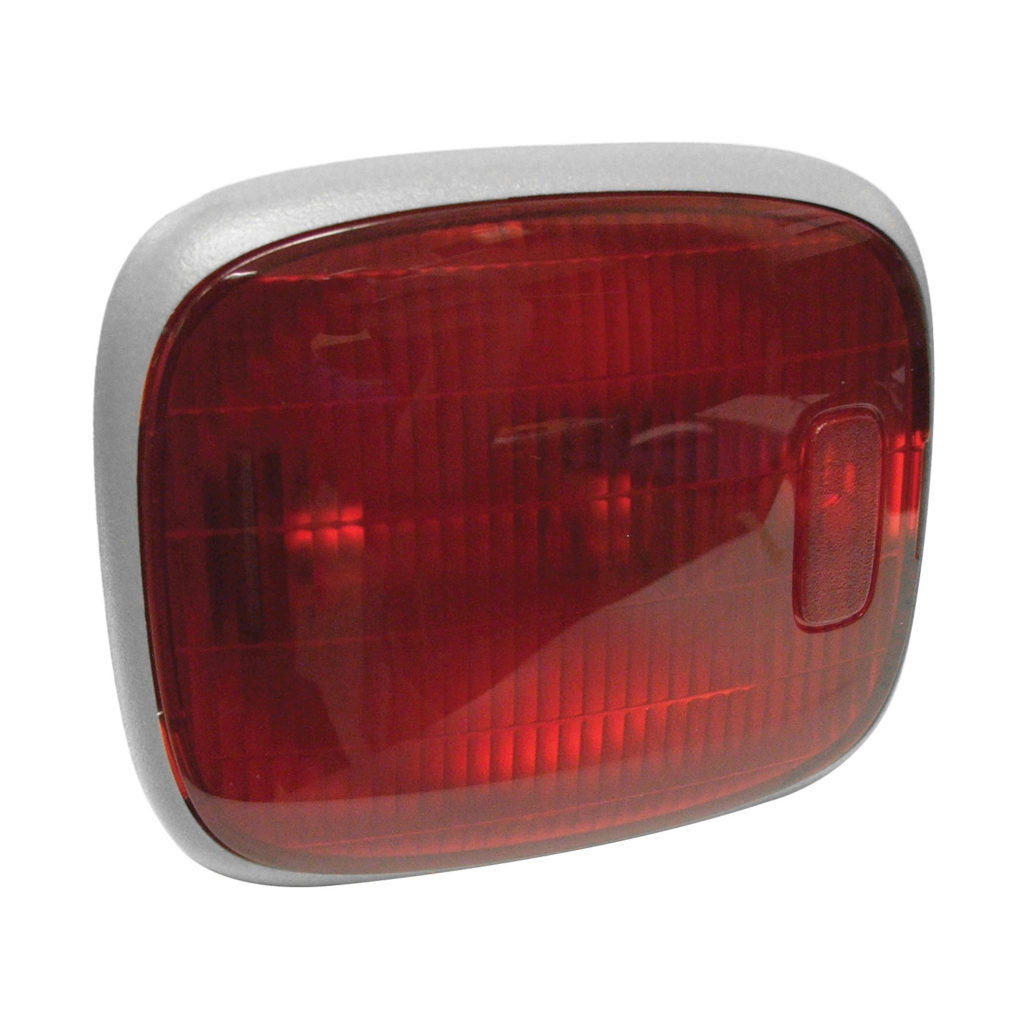

These single dome lights are OEM commercial grade and widely used in heavy duty trailer and RV applications.
Operating Voltage: 24Vdc
Operating Current: 417mA @ 24Vdc
Power Consumption: 10W
Light Source: Dome | Bulb Type T15X43

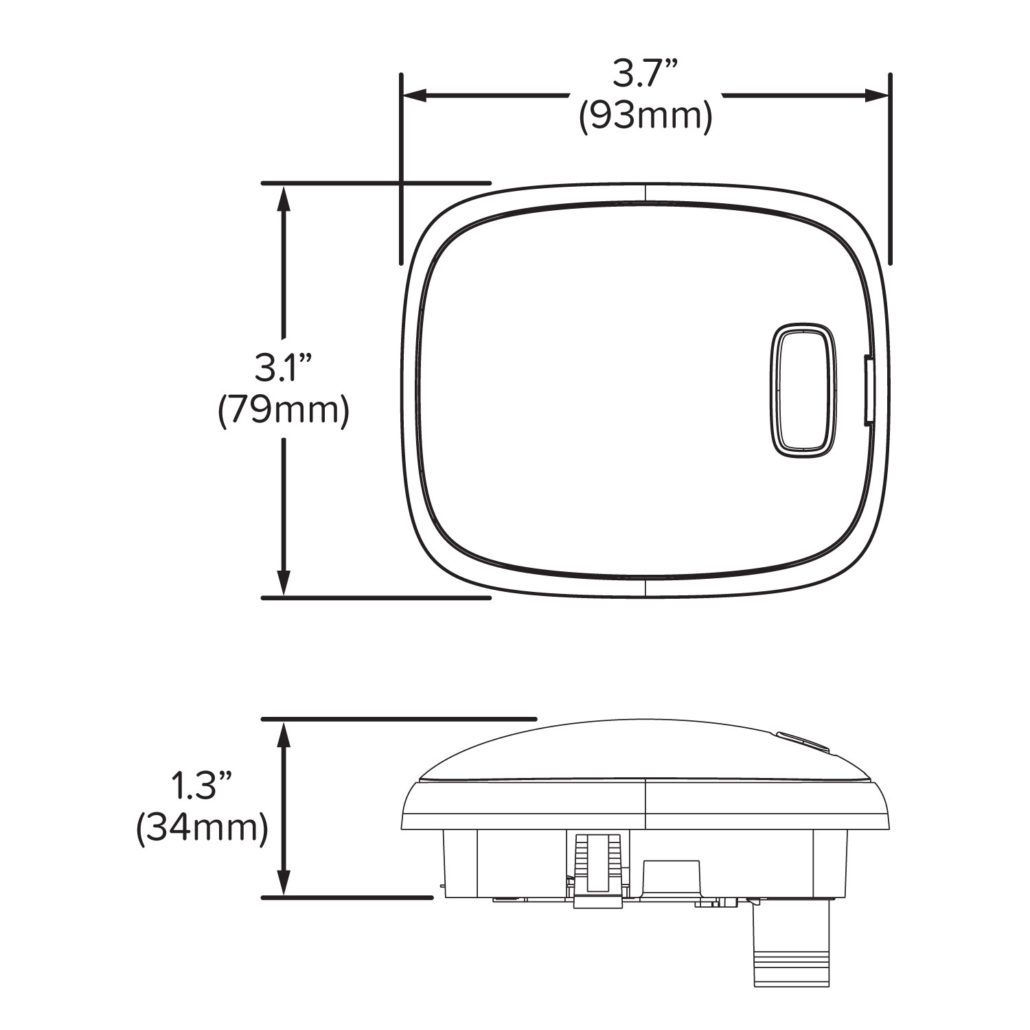

Mounting: Recess with Integrated Clip Features for Panel Thickness Range 2 – 6mm | Cutout 3.1” (78mm) x 2.4” (62mm)
Switch: Push Lens
Mating Connector: AMP #8-968971-1 | 9-Way
| Part # | Description | Operating Voltage |
|---|---|---|
| 80138 | Single Dome Light | Red Lens | 24Vdc |
LED Ambient Light | White
