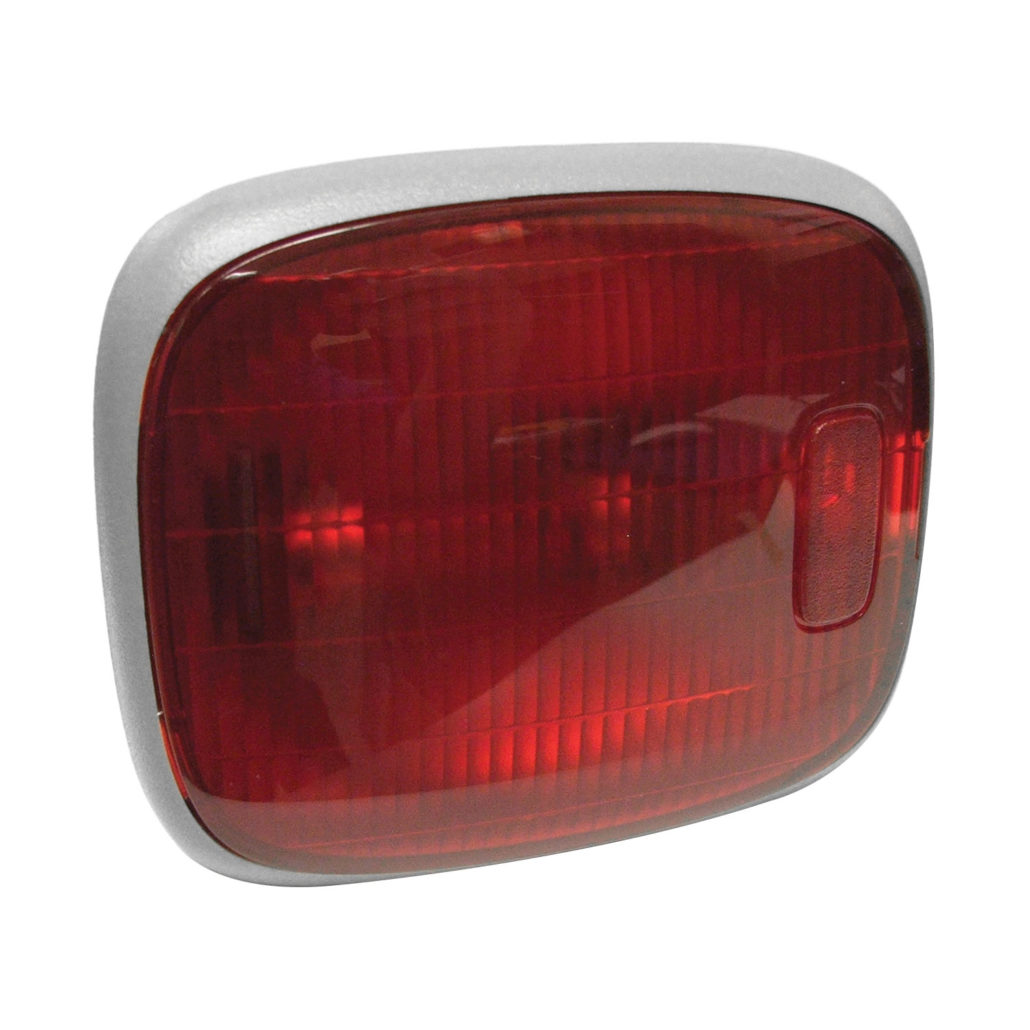

Single Dome Light | Red
These single dome lights are OEM commercial grade and widely used in heavy duty trailer and RV applications.
Specifications
Operating Voltage: 12Vdc
Operating Current: 1.0A @ 12Vdc
Power Consumption: 12W
Light Source: Dome | Bulb Type #211-2

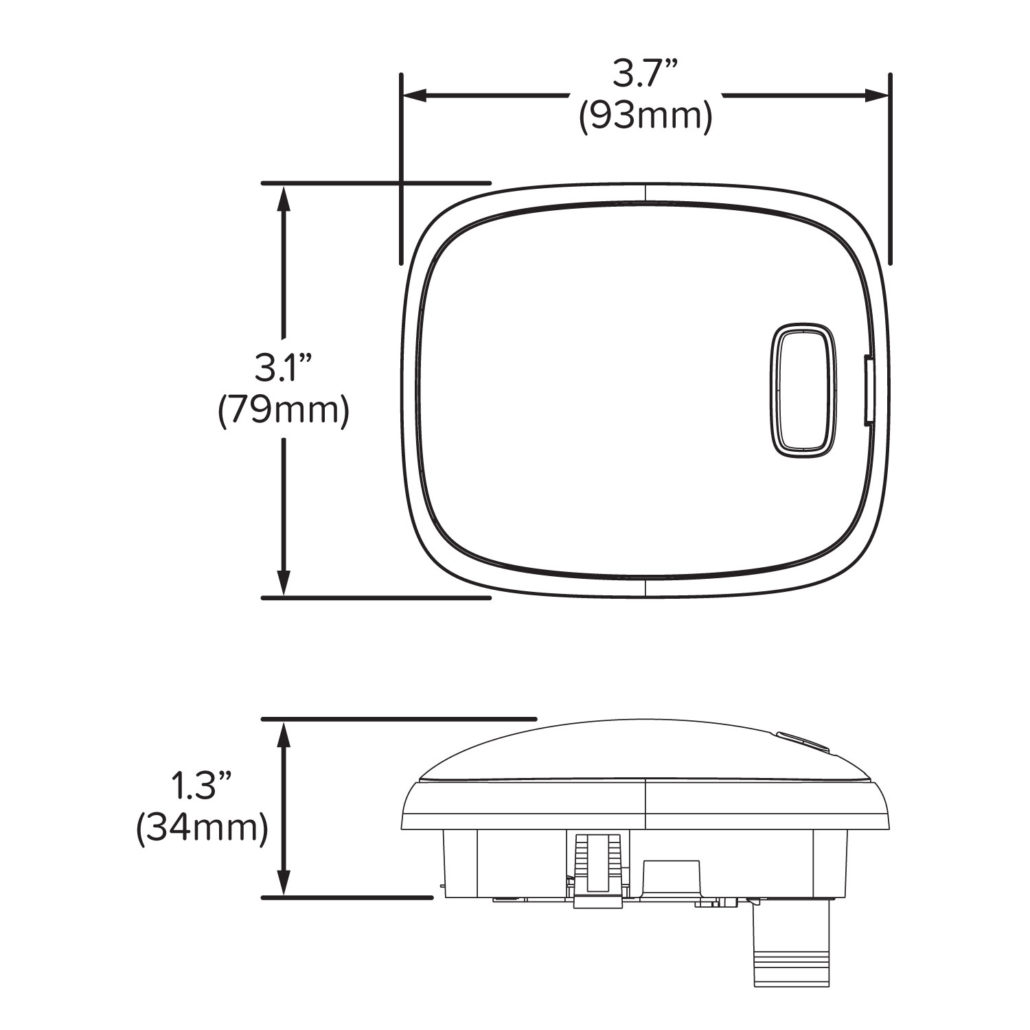

Mounting: Recess with Integrated Clip Features for Panel Thickness Range 2 – 6mm Cutout 3.1” (78mm) x 2.4” (62mm)
Switch: Push Lens
Mating Connector: Packard #12020397 | 3-Way
SKUs/Accessories Available
Part # | Description | Operating Voltage |
---|---|---|
80133 | Single Dome Light | Red Lens | 12Vdc |
