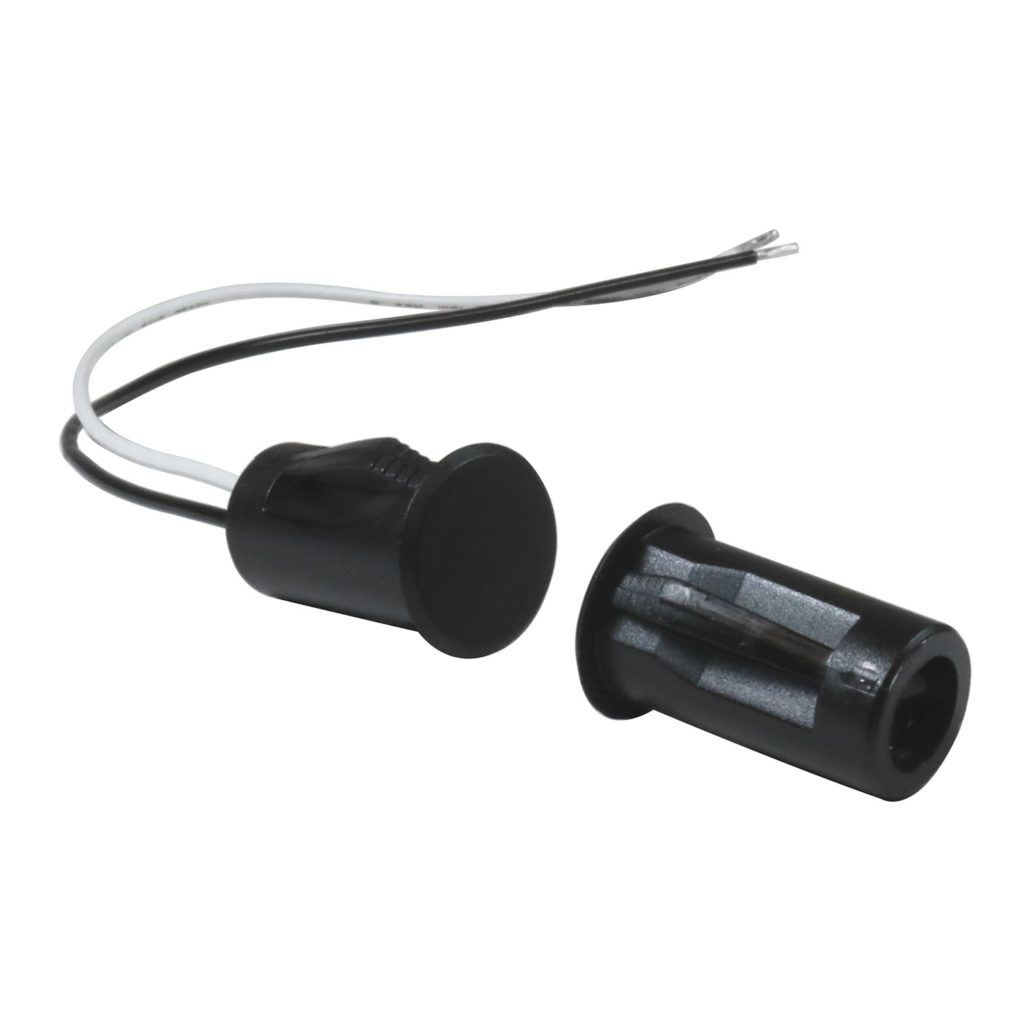

Magnet and Detection Switch Assembly
Features & Benefits
- Heavy duty, high vibration applications
- 500mA switch output
- N/C (normally closed) switch arrangement
- Easy installation requires 13mm drill hole
- Accepts a wide range of sheet metal thickness
- Fully sealed construction for humid locations
- Applications include: automatic light on / off, alarm detection, sensor distance detection
Specifications
Maximum Rated Voltage: 100Vdc
Maximum Rated Current: 500mA
Housing: Black ABS
Wire Length: 12” (305mm)
Detection Range: 3/4” to 1”
SKUs/Accessories Available
Part # | Description |
---|---|
41094 | Magnet and Detection Switch Assembly |
