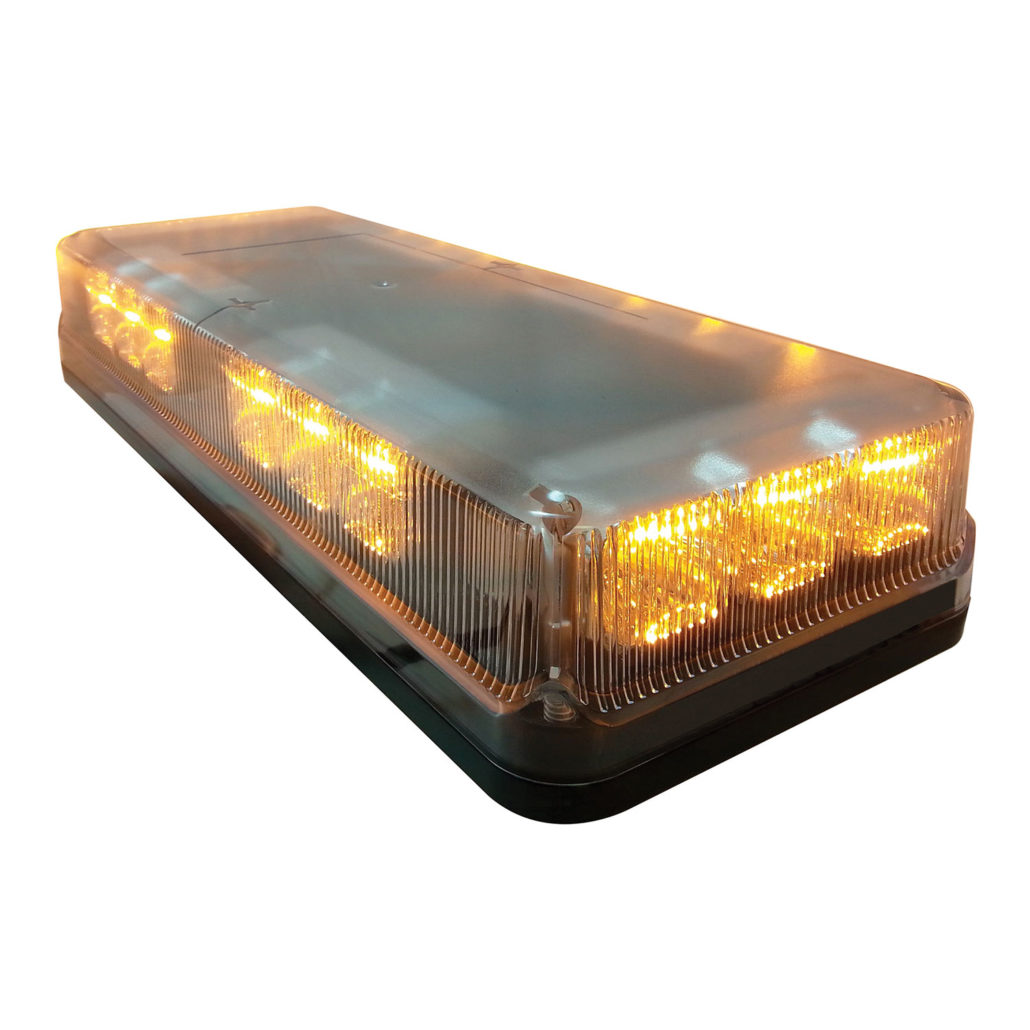

LED Strobe Beacon | Rectangular

The LED strobe beacons have 19 built-in flash patterns. They are highly visible and allow for multiple configurations with up to 360° of lighting. Both permanent mount and magnetic mount options are available.

Features & Benefits

19 built-in flash patterns – highly visible, multiple configurations with up to 360° of lighting
Multiple unit synchronization – enhance visibility further with coordinated flash patterns
Low profile design – provides more stability, better weight distribution and saves fuel
Permanent mount or magnetic mount – flexible mounting options – leave on, remove or use on other fleet vehicles

Specifications

Operating Voltage: 12Vdc
Operating Current: 1.6A @ 12Vdc (varies with flash pattern)
Max Current: 3.2A @ 12Vdc
Power Consumption: 19W
Max Power Consumption: 38W
Temperature Range: -50°C to +60°C
Ingress Protection: IP69K
Weight: 3.4lbs (1.5kg)
Housing: Black ABS
Lens: Polycarbonate

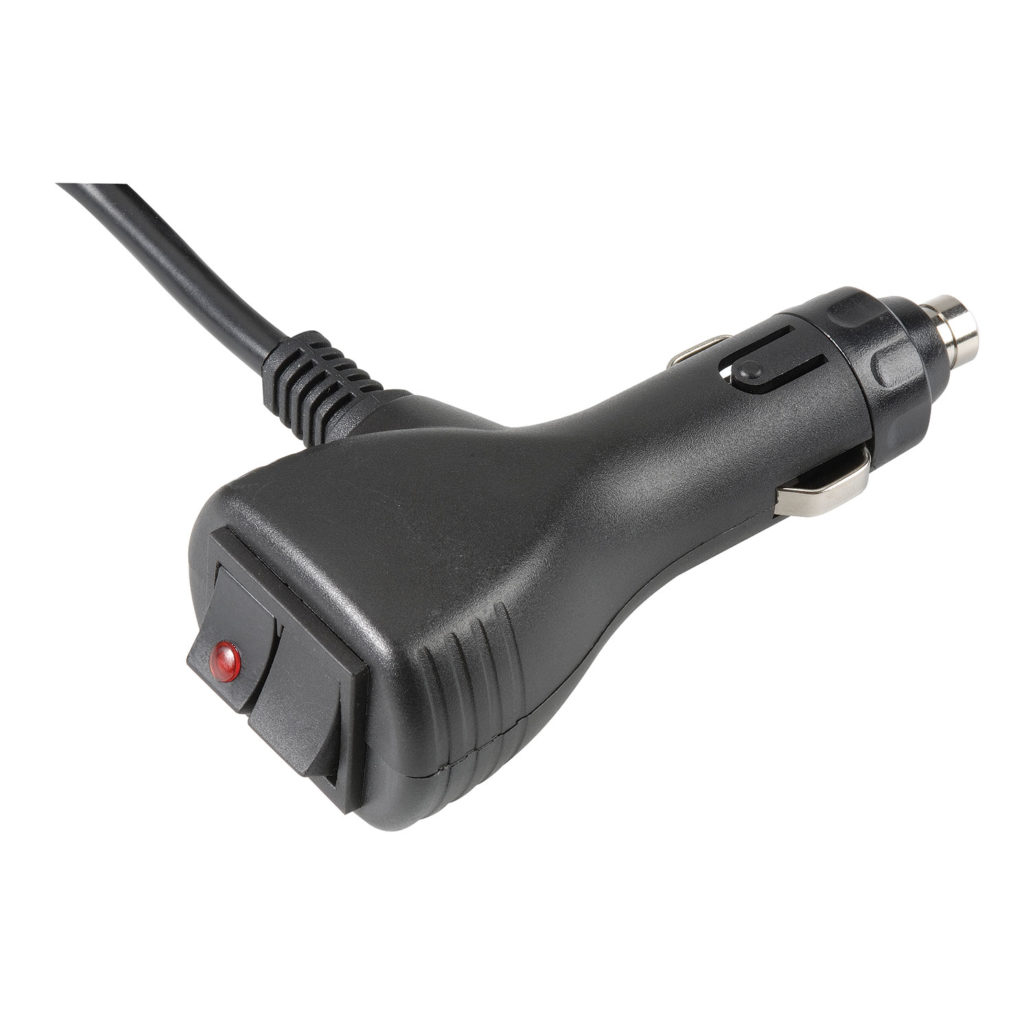

Connection: Permanent Mount: Wire Leads | Magnetic Mount: 12Vdc Plug
Mounting: Permanent or Magnetic
LEDs: 18
Colour: Amber
Fuse Recommended: 8A
Compliance: SAE J845 Class 1 | CA Title 13

Flash Patterns

0 Random (All)
1 Single (Split)
2 Double (Split)
3 Quad (Split)
4 Quint (Split)
5 Mega (Split)
6 Ultra (Split)
7 Single – Quad (Split)
8 Single H / L (Split)
9 Single (All)
10 Double (All)
11 Quad (All)
12 Quint (All)
13 Mega (All)
14 Ultra (All)
15 Single – Quad (All)
16 Single H / L (All)
17 Steady 2 (California)
18 Steady 4 (All)
