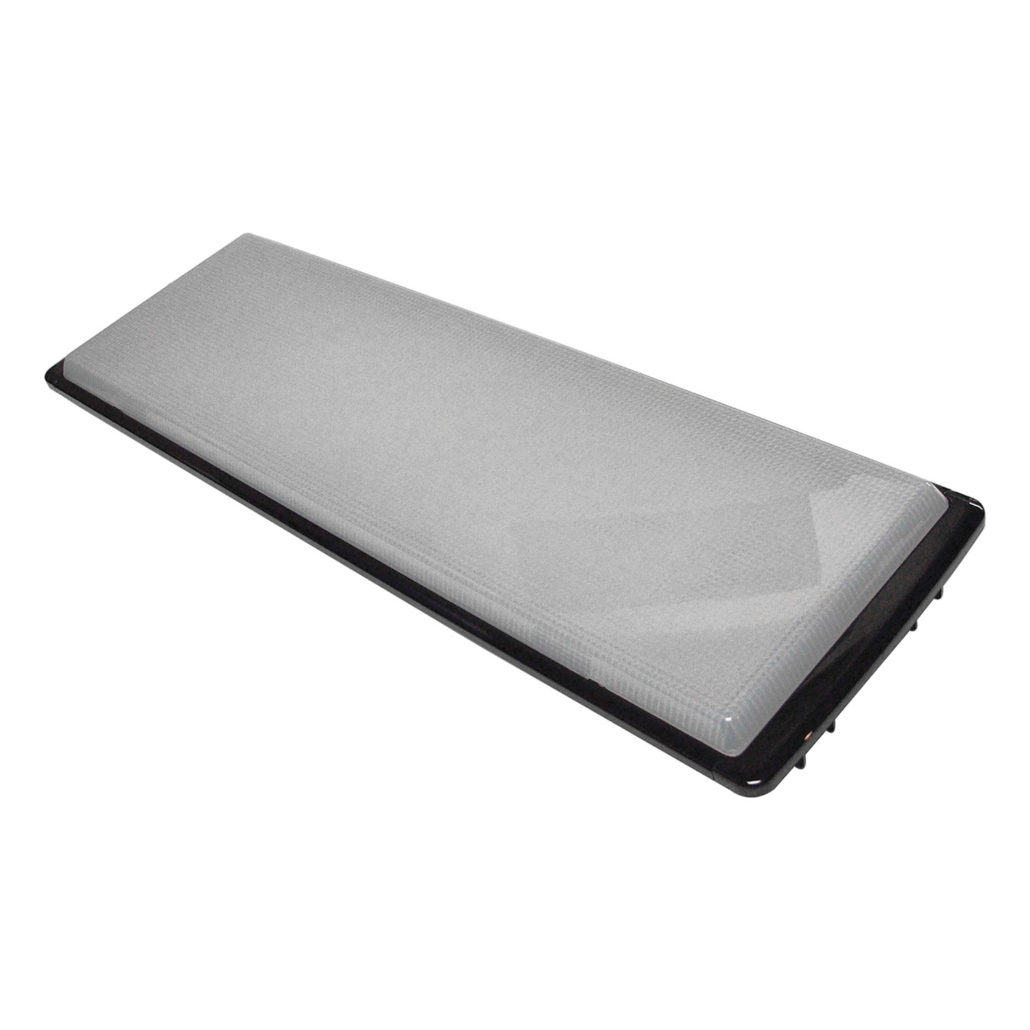

LED Dome Light

These LED dome lights are OEM commercial grade and widely used in heavy duty trailer and RV applications.

Specifications

Operating Voltage: 12Vdc
Operating Current: 833mA @ 12Vdc
Power Consumption: 10W | Pin A Ground | Pin B Power | Pin C Empty
Light Source: Long Lifespan 16x LED High Output

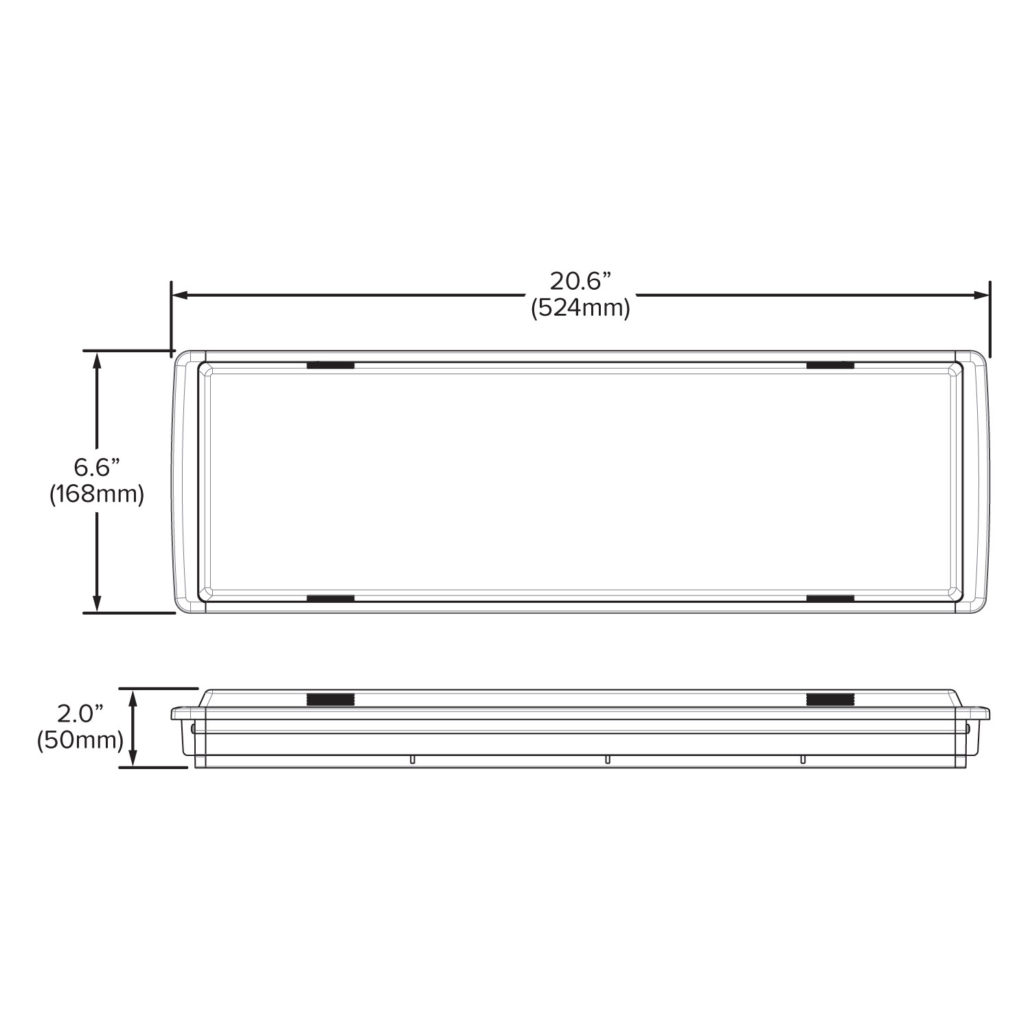

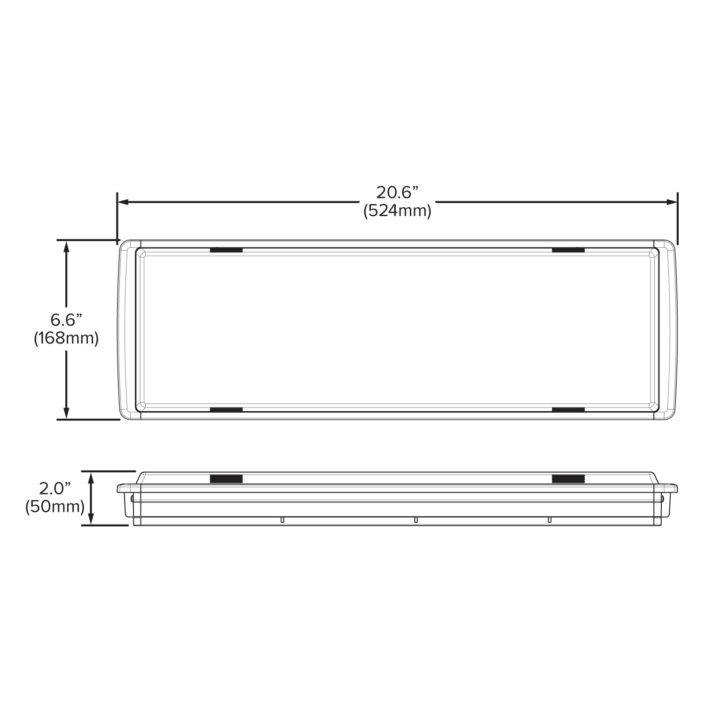

Mounting: Screw-In Flush Mount | Cutout 20.2″ (512mm) x 5.3″ (134mm)
Wire Harness: 9.1” (230mm)
Mating Connector: Delphi #1202397 | 3-Way
