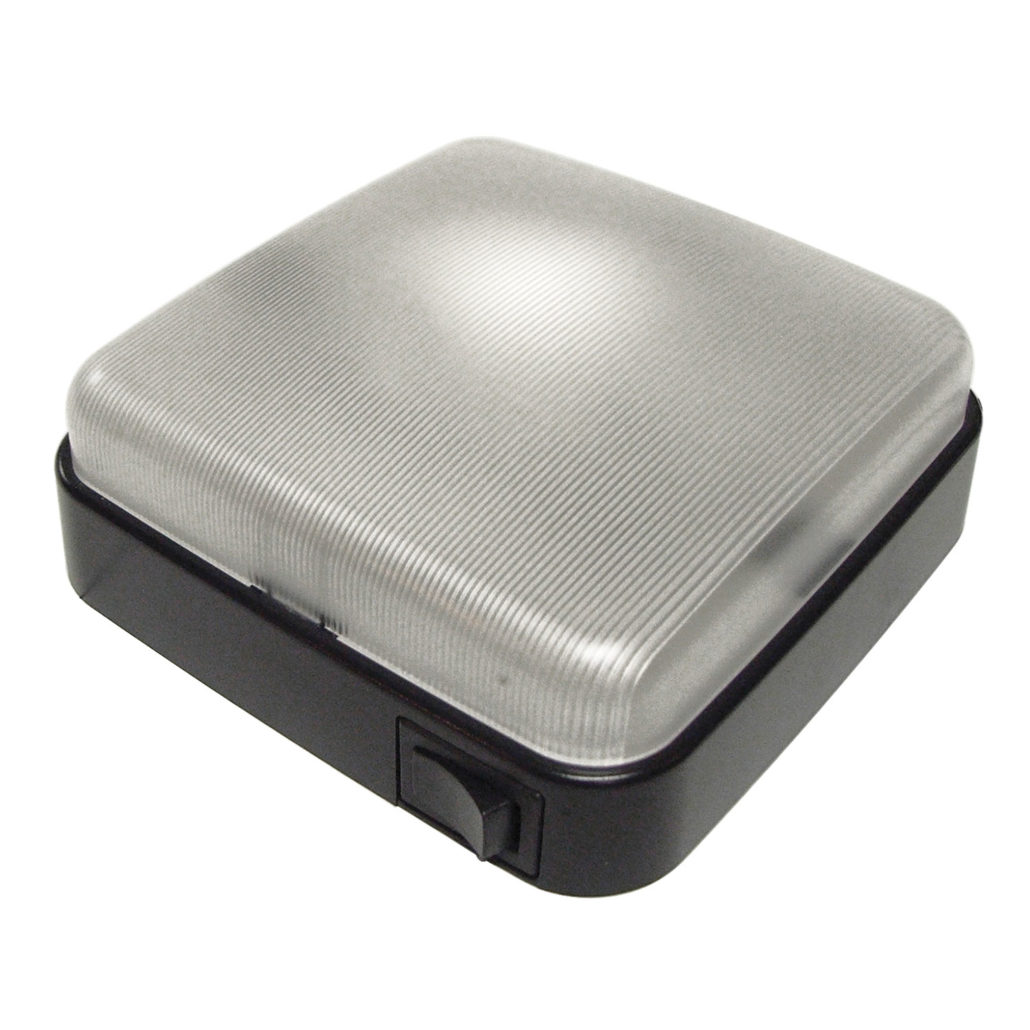

Compartment Light

These compartment lights are OEM commercial grade and widely used in heavy duty trailer and RV applications.

Specifications

Operating Voltage: 12Vdc
Operating Current: 1.0A @ 12Vdc
Power Consumption: 12W | Pin A Power | Pin B Ground
Light Source: Standard T3 Miniature bulb, type #211-2
Mounting: Screw-In Surface Mount
Wire Harness: 6.5” (165mm)
Switch: ON / OFF Rocker
Mating Connector: Packard #12034343 | 2-Way
